MIG/MAG 500A welding inverter / synergetic inverter / welding machine
This Soldatech powered by HG MIG / MAG welding machine can be set both synergistically and manually, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to perform various welding processes including MIG welding and also electrode welding with ease.
The modern IGBT inverter technology ensures that the ML500YHG delivers sustainable performance with more power and a very high duty cycle. The ML500YHG is also standard equipped with a powerful water cooler that, in combination with a built-in fan, prevents overheating and ensures high-quality welding performance is guaranteed for a long time.
The mobile wire feeder unit is also equipped with a control panel on which the welding voltage and current, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).
Each ML500YHG comes standard with:
Water-cooled Soldatech MLT501M4 MIG torch
Welding ground clamp with 3m 50mm² cable
European dinse couplers 13mm
Gas line including quick coupling 12m
Intermediate connection bundle 5m
5-pin 32A plug with 3m 4x4mm² cable
4x wire feed roll: 2x 0.8 + 1.0 and 2x 1.2V + 1.6V
Technical specifications:
voltage = 400V - 3 phase
frequency = 50/60Hz
circuit breaker = 32A B-char
input power = 27.5kVA
no load voltage = 73V
duty cycle (at 20°C ambient temperature) = 100% - 500A
duty cycle (at 40°C ambient temperature) = 60% - 500A
welding current range MIG/MAG = 40 - 500A
welding current range MMA = 40 - 490A
weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm
cooling unit content = 6L
protection class = IP21S
dimensions = 1133 x 498 x 1508mm
weight = 112kg

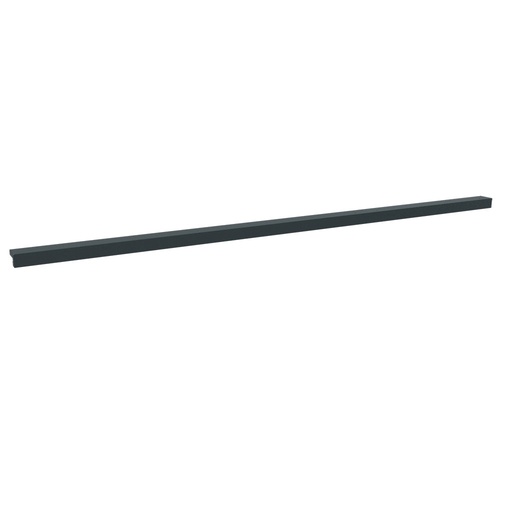

Finishing Panel
This lighting finish panel serves as a cover panel for the BG03LED. The cover panel can be combined with other modules from the Expert series and is part of the following modules:
Clutch aligning set
This universal centering set is suitable for very accurate and simple centering of the clutch plate on vehicles with top bearing.
Content:
1x centering mandrel with screw thread
8x adapter in sizes: 11 x 18mm, 12 x 18mm, 15 x 18mm, 17 x 18mm, 19 x 18mm, 20 x 18mm, 21 x 18mm, 25 x 18mm
1x conical adapter for larger sizes
Hydraulic crimping tool This tool is a professional tool for crimping copper and aluminium lugs in different types from 10mm2 till 300mm2. - crimping range = 16-300mm2 - crimping force = 100kn - stroke = 22mm Including crimping profiles: 16,25,35,50,70,95,120,150,185,240,300mm2
Wheelbarrow wheel air

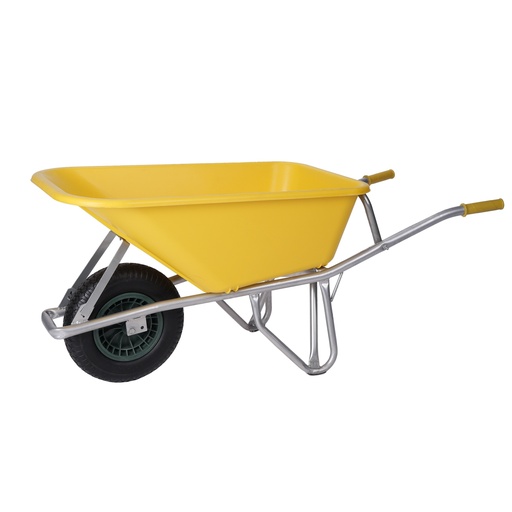

Suitable for the Torso wheelbarrow WB02A. Supplied with bearings and a shaft with bolts, rings and plastic covers.
wheel size = 400 x 100mm
axle size = 20mm
axle hub length = 80mm
axle length = 128mm
screw thread axle = M10
This engine leveler is specifically designed for engine cranes or hoists to balance a load during lifting.Adjust the load's center of gravity by turning the handle.
capacity = 680kg
Wire basket
Metal Wire Basket to be used on the following tool walls from the expert series and workbenches:
Tool cabinet / workshop cabinet / drawer cabinet
This base cabinet consists of five solid drawers that fully extend and are fitted with ball-bearing rails. All drawers can be locked centrally, thanks to the cylinder lock. The bottom frame is equipped with adjustable feet, so that the cabinet can easily be placed level. The base cabinet can be combined with other modules from the Expert series and is part of the following modules:

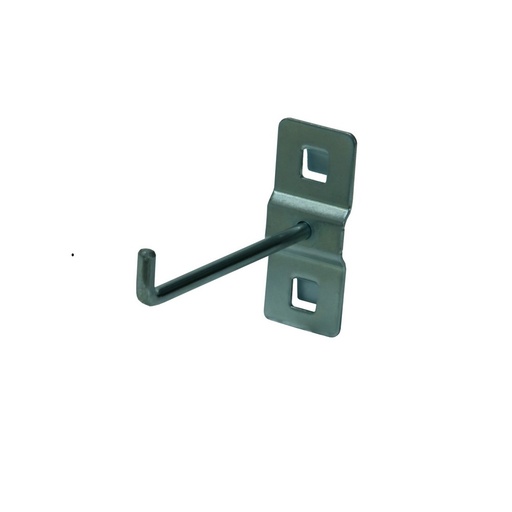

Workbench hook / tool hook
This tool hook is ideal for hanging tools in an organized manner, to be used on the following tool walls from the expert series and workbenches:
Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 200 ton - stroke = 50mm - effective area = 224,2cm^2 - oil capacity = 1,402 L - height of product = 156mm - extended height = 206mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar
Machine vice - width of jaw = 106mm - height of jaw = 29mm - max. opening = 104mm
Charger
This charger is suitable for the battery start booster BCP1224V.
input = 100 - 200VAC
output = 15V 2A
length = 4m
including 5A glass fuse
Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 100mm - effective area = 9,6cm^2 - oil capacity = 0,071 L - height of product = 183mm - extended height = 283mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar
car jack / workshop jack / car jack double plunger / garage jack dual pump / extra low car jackThis heavy duty garage jack from Mammuth has a dual pump lifting system, which gives the jack a higher lifting speed and a slower speed under load so that the load can be lifted safely.This hydraulic jack is also equipped with a variable lowering speed that controls the lowering speed thanks to a double throttle valve.Thanks to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the jack. This makes the jack not only safe, but also efficient to use.The jack is equipped with 2 fixed and 2 swivel wheels, which makes the jack very mobile.The garage jack comes standard with a rubber pad (JG27RP) and a foam protector for optimum vehicle protection. The maximum jack lifting height is 455mm.Technical specifications:
min. height = 125mm
max. lifting height = 455mm
diameter lifting platform = 110mm
length pump rod = 990mm
Rubber air hoseBlubird air hoses are the lightest and strongest of the rubber air hoses. The hoses are very flexible in extreme weather conditions of -45 to 87 degrees celsius.Features:- ultra light, super strong rubber- ozone resistant: provides protection from extreme weather, abrasions and kinks- polyester braided reinforcement- 4-finger handle for more grip- oil resistant: resists grease, oil and diesel
Rubber air hoseBlubird air hoses are the lightest and strongest of the rubber air hoses. The hoses are very flexible in extreme weather conditions of -45 to 87 degrees celsius.Features:- ultra light, super strong rubber- ozone resistant: provides protection from extreme weather, abrasions and kinks- polyester braided reinforcement- oil resistant: resists grease, oil and diesel- without coupling or thread
Remote control
Suitable for the electric winches CW02V12, CW04V12, CW08V12 and CW12V12.
built-in
12V
range = 15m
Headlight Adjuster
The headlight tester is suitable for testing the headlights of cars, motorcycles and heavier vehicles. This is for the purpose of inspection and correct adjustment of the headlights. The professional headlight adjustment device has a built-in laser and a digital lux meter. The height is easy to adjust and the device has a rotating mirror. The dip in the dim/fog light can be read with an accuracy of 0.1%, the total adjustment range is -0.2 / +8%. Also comes with a mobile undercarriage and can be used on rails and mobile.
min. working height = 200mm
max. working height = 1500mm
Features:
plastic lens
built-in laser
mirror visor
digital lux meter
level
8% infinitely adjustable inclination angle
sliding mechanism to adjust the height
suitable for MOT

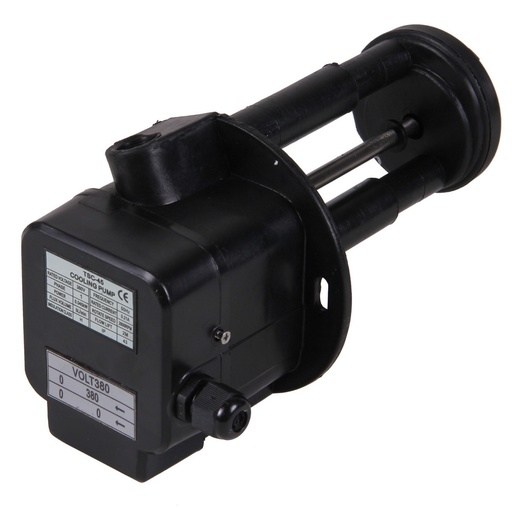

Cooling pump Cooling pump for circular saw. - voltage = 230V - phase = 1 - power = 0,045kW - flux volume = 5L/min - frequency = 50Hz - rated current = 0,21A - rotate speed = 2800rpm - IP 43
Rubber pad / rubber support pad Suitable for Ravaglioli lifts. - dimensions = 100 x 100 x 21mm - inner diameter = 80mm
