Tool trolley base cabinet

This wide tool trolley base cabinet consists of 6 drawers, a storage room with door and a wooden worktop:

• 1 wide drawer of 930 x 400 x 95mm

• 3 drawers of 565 x 400 x 55mm

• 2 deeper drawers of 565 x 400 x 135mm

• storage room with 1 shelf

• wooden worktop of 1055 x 445mm

Jacking beam 2000kg
This air operated hydraulic jacking beam from Falco Sollevatori is a great addition for any four column & scissor lift installed in car workshops used for conducting maintenance.The jack can be easily installed and positioned thanks to the special ball bearing steel rollers, which have a universal adjustable position.The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.
The adapter plates are reversible so the jacking beam can have a min. height of only 90mm which makes it suitable for low cars and sport cars.
It comes with adjustable saddles with screw extension and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.
With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safely.

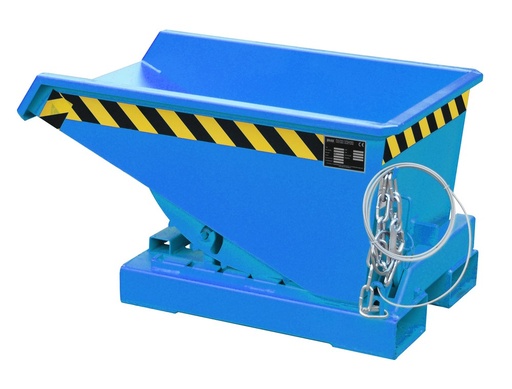

Tilting container / tipping container / tipper

This compact EXPO tilting container with rolling mechanism is very suitable for moving bulk goods, industrial waste and mass products using the forklift truck.

Features:

• ideally situated loading centre of gravity

• can be emptied at any height by using a cable, operated from the driver's seat

• body wall with reinforced edging

• sturdy frame with fork sleeves

• secured to prevent slipping and unintentional emptying

• wheels can be fitted later


Technical specifications:

• capacity = 1000kg

• volume = approx. 0,60m³

• dimensions = 1260 x 1070 x 835mm

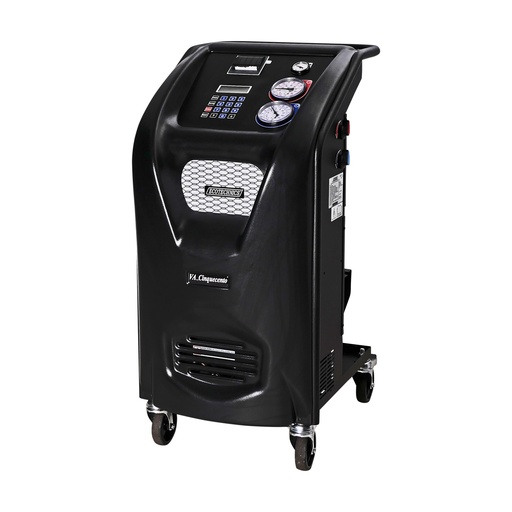

air conditioning service machine / diagnosis station / service unit / air conditioning filling station / automotive air conditioner service station

Compact, economic, and modern model ACVA500 from Ecotechnics is a solid and very user-friendly air conditioning filling station which is suitable for R134A refrigerants.
The operation of the service unit allows you to completely avoid the typical "emissions" (dispersion) of refrigerant gas into the environment, which is released at the end of a normal refueling of the car's cooling system, when the charging hoses are removed from this system.
The machine recovers almost 100% of the refrigerant and checks the air conditioning system for leaks. Diagnosis station equipment automatic leak testing system: check for leaks during the vacuum phase. If leaks are found, it interrupts operation and gives an alarm.
Air conditioning filling station equipped with hermetic cartridges offer the advantage of eliminating contact between the humidity naturally present in ambient air and the oil or dye, which are hydroscopic substances (that is substances that easily absorb humidity).
Oil management both with standard refillable containers and with hermetic cartridges.
The machine has a fully automatic mode and can be put into manual mode in cases of diagnosis, where each phase can be performed one by one.
Thanks to its extremely compact size, the ACVA500 is very suitable for use in mobile workshops, work buses etc.

The machine is equipped with:

• Freon charging transfer kit
• 3m hose package with quick couplings
• Integrated Data Base Car-Truck-Agri
• Integrated vacuum pump 51 lt/min
• Thermal Printer for a complete detailed report.

Features:

• Fully automatic service
• Electronic oil scale
• il type change function
• Refillable standard containers for oil and dye
• Automatic Leak Testing
• Energy-saving with 12-volt solenoid valve technology
• C.A.R.Method
• Ventilated
• Refillable standard containers
• Made in Italy

Technical specifications:

• Voltage = 220-240V 50/60 Hz
• Type of refrigerant = R134A
• Service valves = Manual
• Non condensable gas purge = Manual
• Hoses = 3 m
• Capacity vacuum pump = 51 L/min
• Vacuum level = 0.2 Mbar
• Sealed compressor = 1/3 HP
• Recovery speed = 300 g/min in liquid phase
• Tank Scale resolution = 10 g
• Working temperature range = 11/49°C
• Filter system = 1 filter for humidity
• Refrigerant tank = 12 liters refillable

Jobsite box

- material = steel
- dimensions = 1220 x 615 x 720mm
- inside dimensions = 1125 x 510 x 550mm

This series of Mammuth air bellow jacks are increasingly being used instead of the standard pneumatic jack. The air bellow jack lifts faster, is more manageable and is easy to store upright.

Thanks to its sophisticated design, this pneumatic balloon jack has te following useful features:

• 2 sturdy bellows with a wall thickness of 7 - 7,5mm

• weighs only 15kg, but is still very solid

• safety overload valve

• guide ring in cylinder for smooth working and durability

• ergonomic automatic switch, ensures safe and easy operation

• space saving

• ideal for the workplace, but also on the road

Specifications:

• capacity = 2T

• minimum lifting height = 115mm

• maximum lifting height without adapter = 345mm

• maximum lifting height with adapter = 425mm

• lifting height = 230mm

• adapter = 80mm

• working pressure = 7 - 10 bar

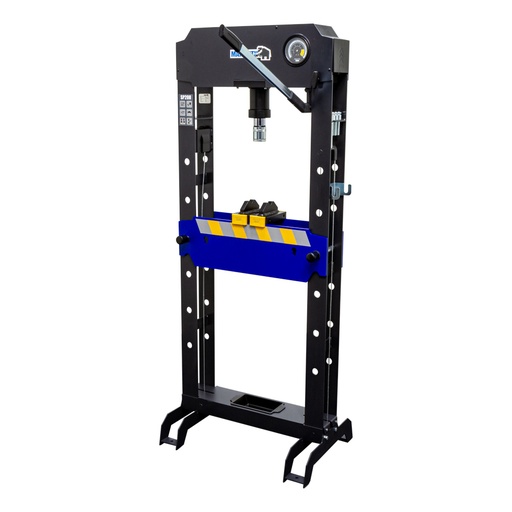

Press / Garage press / bearing press / workshop press

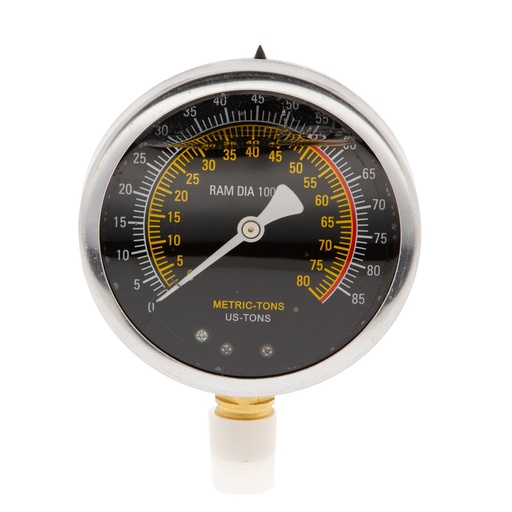

This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the integrated pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately. The work bed is easy to adjust in height using the winch. Thanks to the pneumatic pump system, the press can be operated with compressed air via the foot pedal or by hand.

The press comes standard with two multifunctional press blocks and a parts tray.

Technical specifications

• capacity = 100 tons

• working air pressure = 8-12 bar

• bed width = 850mm

• bed depth = 280mm

• minimum distance bed/cylinder = 185mm

• cylinder stroke = 300mm

Tool cabinet / workshop cupboard

This bottom cabinet is equipped with a sink and 2 doors. On the sink, there is a tap and a soap dispenser. There is storage space behind the 2 doors.

The tool cabinet is available separately and can be combined with other base cabinets.

Tool chest 6 drawers

Color = blue

Dimensions:
Top tray area = 646 x 297 x 67mm
3 drawers = 167 x 272 x 34mm
2 drawers = 569 x 272 x 34mm
1 drawer = 569 x 272 x 60mm

Storage rack / warehouse rack / shelf rack / garage rack

This sturdy Toolbox4u storage rack is ideal for storing all kinds of goods in, for example, a workshop or garage. The 640mm wide shelves guarantee plenty of storage space and can be adjusted to any desired height.

The back wall of the rack has square holes for hanging tool hooks, for example.

Technical specifications:

• dimensions = 455 x 685 x 2000mm

• square hole dimensions = 10 x 10mm

• dimensions of the shelves = 370 x 640 x 21mm

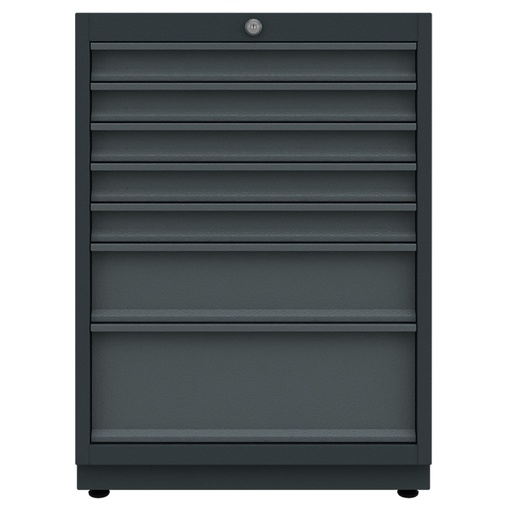

Tool cabinet / workshop cupboard

This bottom cabinet contains 7 drawers, 5 small and 2 large.

• dimensions of the small drawers = 560 x 400 x 55mm

• dimensions of the large drawers = 560 x 400 x 135mm

• all drawers are equipped with ball bearings and foam mats

• capacity of each drawer = 30kg

The tool cabinet is part of workshop module 3 and 4, but is also available separately.

Note: this product is delivered without a worktop.

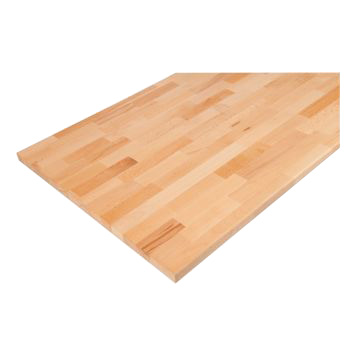

Worktop solid wood

• dimensions = 1361 x 463 x 38mm

This worktop can be mounted on at least 2 of the following cabinets: GC68L7, GC68L5, GC68D2 and GC68TB.

This worktop is also part of workshop module 1, 2, 4 and the wide base cabinet GC13L7W, but is also available separately.

Loose paws for work bench WB10

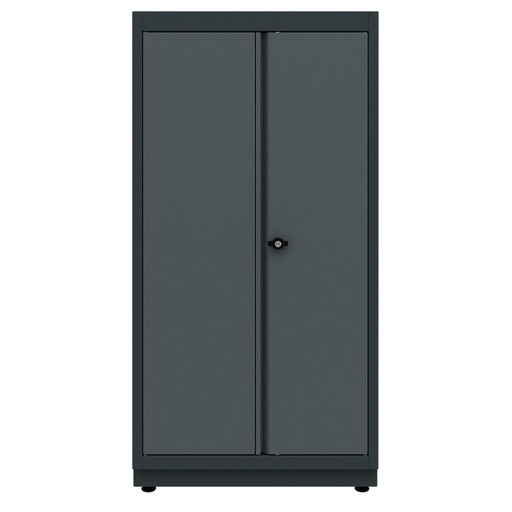

Tool cabinet / workshop cupboard

This standing cabinet contains 2 doors with 5 shelves each.

The tool cabinet is part of workshop module 4, but is also available separately.

• carrying capacity per shelf = 30kg

Workbench hook / tool hook

This hook is ideal for hanging tools clearly and is easy to attach to the tool wall of our workbenches and workshop modules.

• length hook = 30mm

• diameter hook = 5mm

Tool cabinet / workshop cupboard

This bottom cabinet contains 5 drawers, 1 small and 4 large.

• dimensions of the small drawer = 560 x 400 x 55mm

• dimensions of the large drawers = 560 x 400 x 135mm

• all drawers are equipped with ball bearings and foam mats

The tool cabinet is part of workshop module 1, 2, 3 and 4, but is also available separately.

Note: this product is delivered without a worktop.

Tool holder

This tool holder is suitable for hanging various tools such as electrical, pneumatic and hand tools. The rack can be attached to the wall cabinet GC68WD1.

• 5 compartments

• dimensions compartment = 125 x 270 x 150mm

Workbench hook / tool hook

This hook is ideal for hanging tools clearly and is easy to attach to the tool wall of our workbenches and workshop modules.

• length hook = 147mm

• diameter hook = 5mm

Workbench holder for wrenches

This wrench holder provides space for 8 wrenches and is easy to attach to the tool wall of our workbenches and workshop modules.

This stainless steel worktop can be mounted on at least 2 of the following cabinets: GC68L7, GC68L5, GC68D2 and GC68TB. Space can be left between the two bottom cabinets for the GC68SC mobile tool cabinet.

This worktop can also be chosen as a replacement for the wooden worktop for workshop module 1, 2 and 4, but you have to indicate this.
The worktop is also available separately.

• dimensions = 1361 x 463 x 38mm
