The ATS4800EMI automatic transfer switch cabinet is compatible with the EMI4800 petrol generator and enables either automatic or, if desired, manual switching between mains power and the generator. This ensures continued power supply, even in the event of unexpected power failure.
As soon as the system detects a loss of mains voltage, it immediately switches to the generator. When the mains power is restored, it automatically switches back without manual intervention.
Key features:
-
Automatic and manual transfer
Werkt zowel in automatische of handmatige modus.
-
Compatibel met de EMI4800 generator
Connects directly to the existing terminals and controls.
-

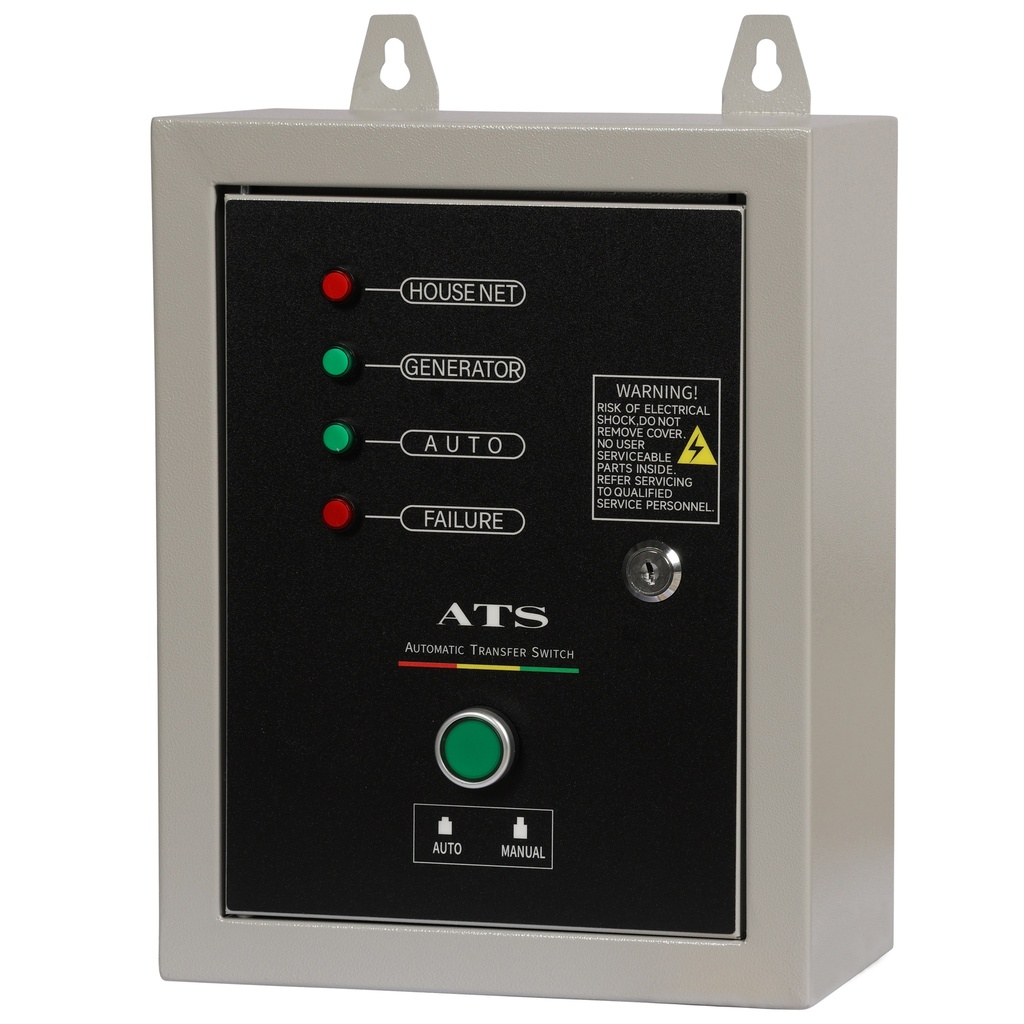

Status indicators
Four indicator lights show current status: mains power active, generator active, automatic mode enabled, and generator start failure.
-
Included signal cable
Includes a 2-metre signal cable.
Note:
Connection of the ATS unit must always be carried out by a certified electrician.
Specifications
| Working voltage (Ue) | 185 - 250 V |
| Rated isolation | ≥650V |
| Frequency | 50 - 65 Hz |
| Rated working current | 25 A |
| Rated short-time withstand current | 29.5 A |
| Rated limited short-circuit current | ＜8 A |
| Conversion time | 2-6 sec. |
| Mechanical endurance | 20000 cycles |
| Poles | 4 |
| Product Dimensions: | |
|---|---|
| Product Length | 320 mm |
| Product Width | 140 mm |
| Product Height | 250 mm |
| Product Weight | 4.62 Kg |
| Package Dimensions: | |
| Package Length | 405 mm |
| Package Width | 210 mm |
| Package Height | 330 mm |
| Package Weight | 5.31 Kg |
