Needle scaler / air chisel
This ZionAir needle scaler and air chisel set can be used for all kinds of different work jobs. The device consists of a needle scaler and an air chisel. This makes it suitable for the removal of welding slag, paint and rust, among other things.
It is easy to switch between the needle scaler and chisel. The set is also equipped with a quick change head for the chisels, an ergonomic handle to operate the device with two hands and a handy storage case.
The needle scaler has 19 needles and the chisel has 5 different chisels.
Technical specifications:
stroke = 67mm
free speed = 2200rpm
average air consumption = 85L/min
number of needles = 19
diameter needles = 3mm
number of chisels = 5
connection chisels = hexagon
air inlet = 1/4" (male connector included)
working pressure = 6,3 bar
recommended air hose = 10mm inside diameter (3/8")
The specified air consumption is indicated at a pressure of 6,3 bar.
The air output at compressors is measured at ambient pressure, so these 2 values cannot be compared with each other.
If you need advise, consult one of our experts.

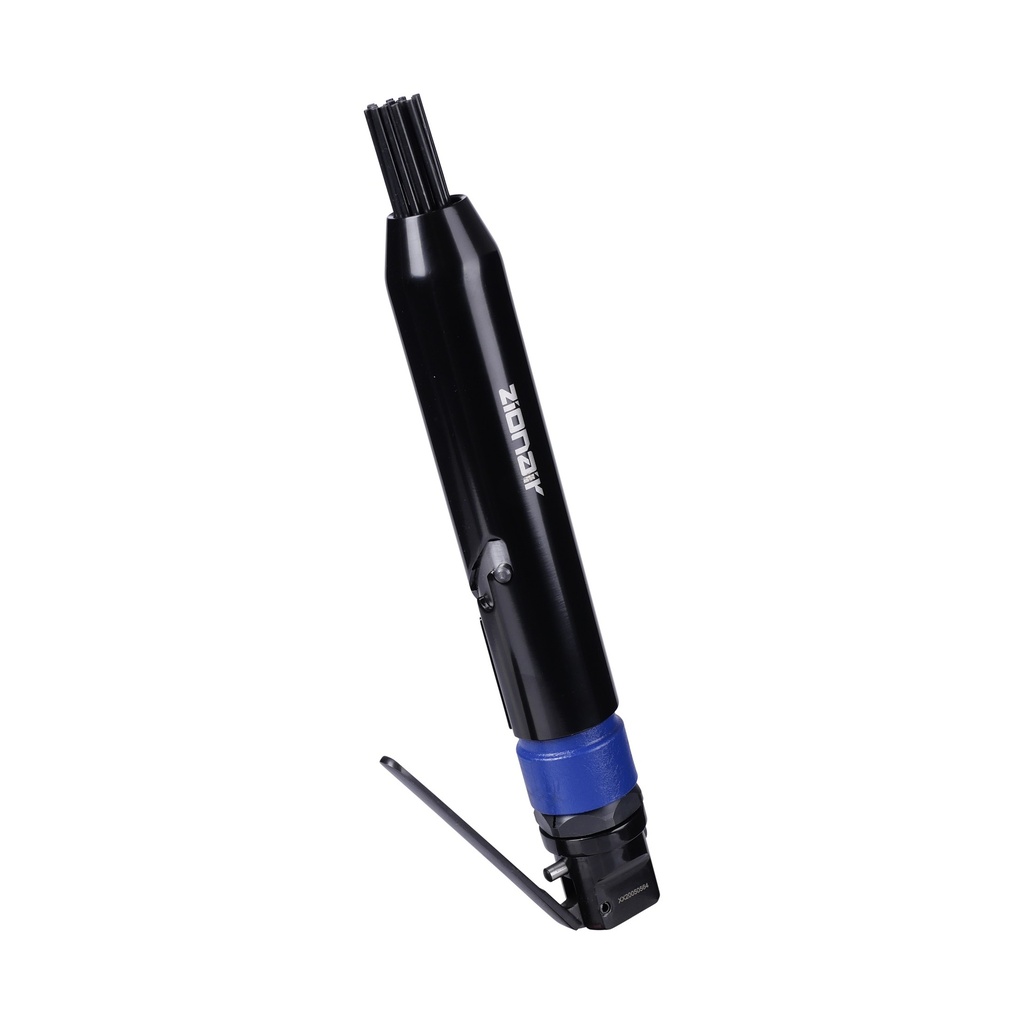

Needle scaler / air chisel / air hammer
This ZionAir pneumatic 3 in 1 combi machine is very multifunctional and can be used for all kinds of different work jobs. The device consists of a needle scaler, air chisel and an air hammer. This makes it suitable for the removal of welding slag, paint and rust, among other things.
It is easy to switch between the different heads. The needle scaler has 19 needles and the chisel has 5 different chisels. The hammer has 1 head.
stroke = 14mm
free speed = 6000rpm
average air consumption = 128L/min
hardness pickguard = 548HB
This ZionAir pneumatic plate shear cuts through most types of plastic and all types of aluminum, tin and steel up to 1,5mm.
The shear is provided with a comfortable soft-grip rubber handle and hardened blades that last longer.
Specifications:
steel thickness = 1,5mm
strokes per minute = 2200spm
average air consumption = 113L/min
The specified air consumption is indicated at a pressure of 6,3 bar.The air output at compressors is measured at ambient pressure, so these 2 values cannot be compared with each other.If you need advise, consult one of our experts.

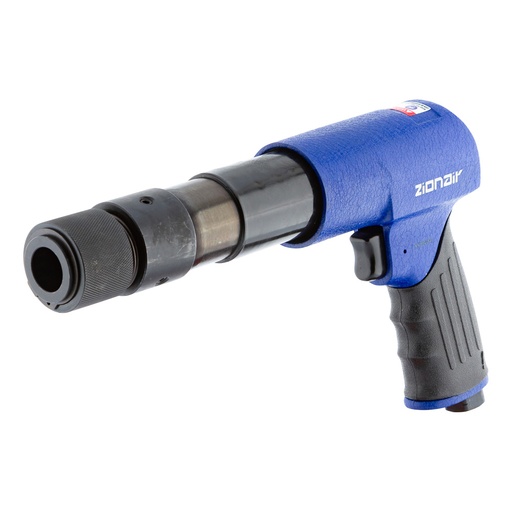

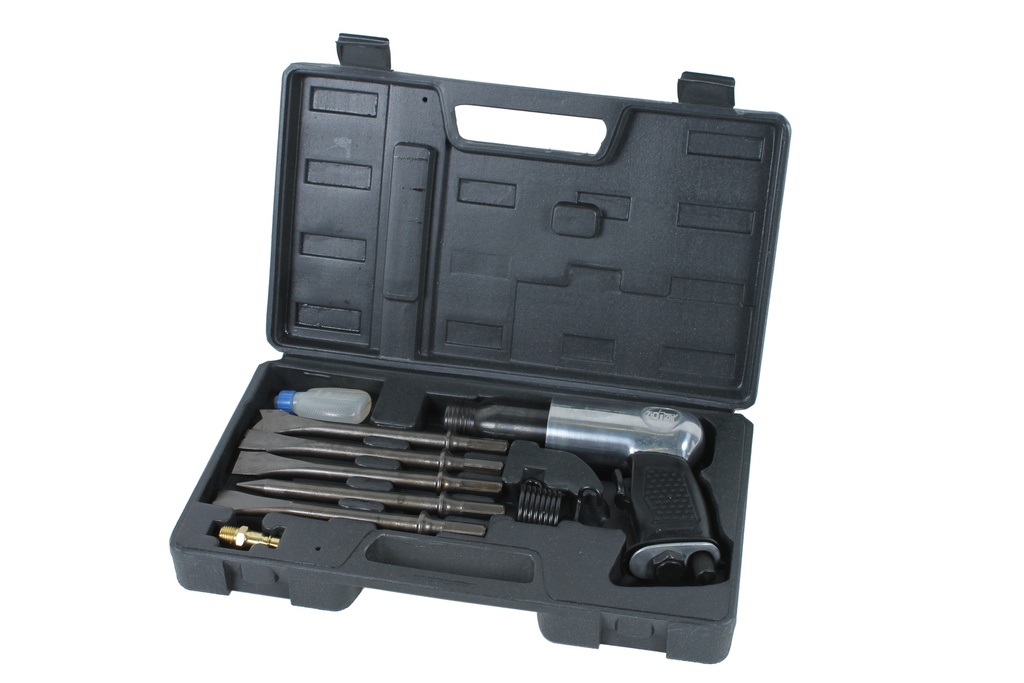

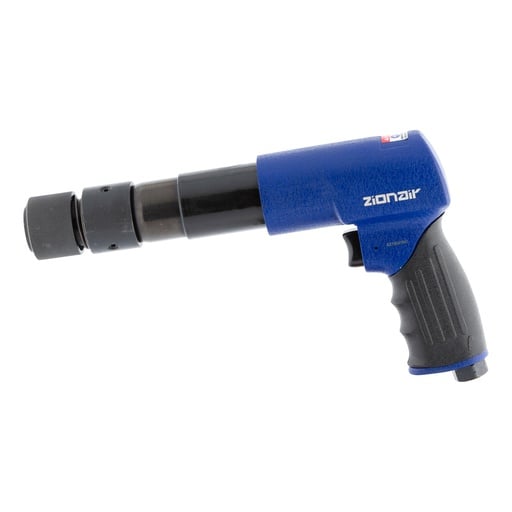

This ZionAir pneumatic hammer is suitable for all kinds of chopping and breaking jobs. The air hammer is not only supplied with a traditional spring holder but also with a new quick-change head! This makes it easy to switch the chisels quickly.Furthermore, the air chisel has a hexagon drive so that the chisel remains firmly centered in position.
robust air hammer
pointed chisel
flat chisel curved
flat chisel straight
flat chisel with small angle
flat chisel with large angle
spring
male connector 1/4" thread
drill hole diameter = 19mm
drive chisels = hex
stroke = 102mm
strokes per minute = 2000spm

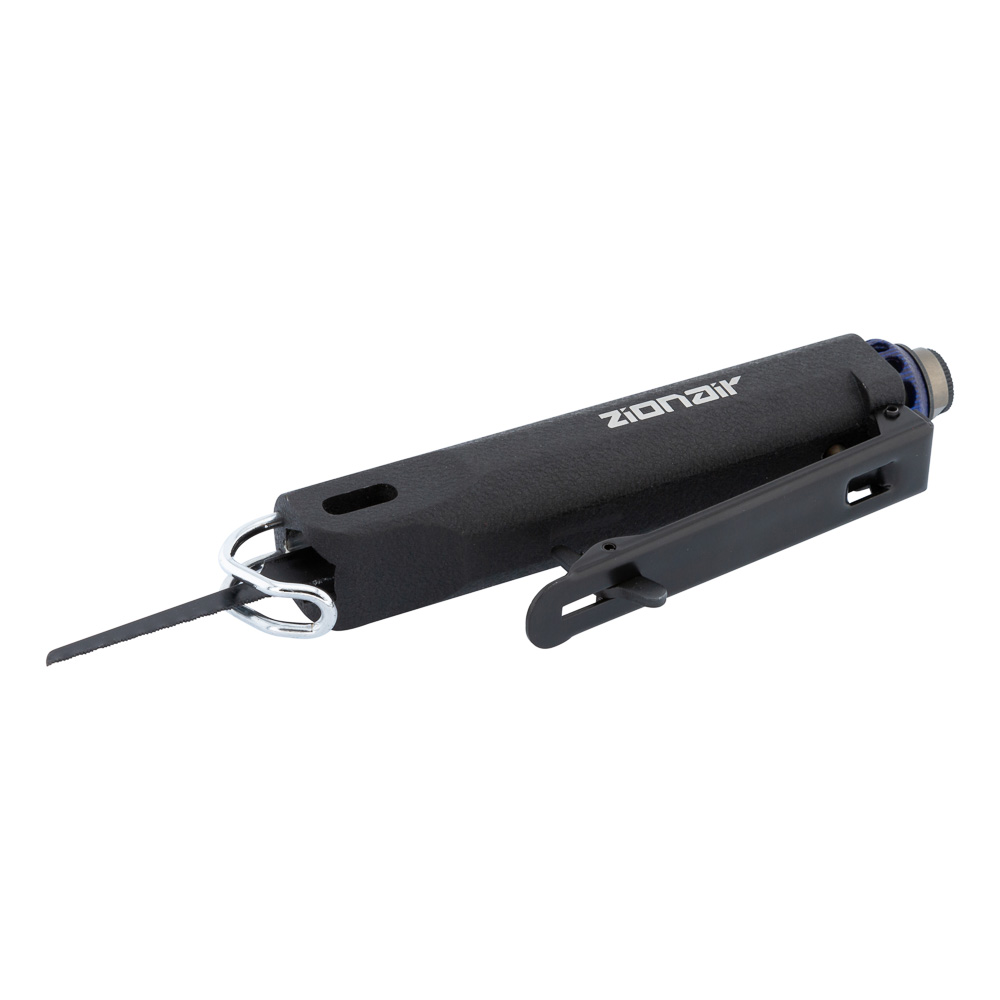

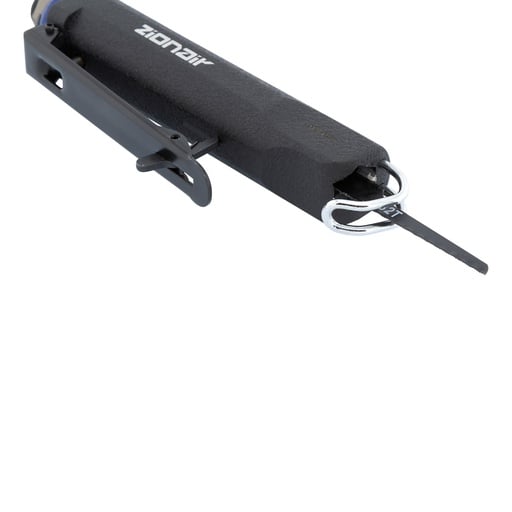

This ZionAir body saw on air easily cuts straight and in curves through metal of 1,6mm thick, aluminum of 2,0mm thick and plastic of 2,5mm thick.Ideal for work on body, exhausts and roofs.
including 2 saw blades = 18T and 14T
free speed = 9000rpm

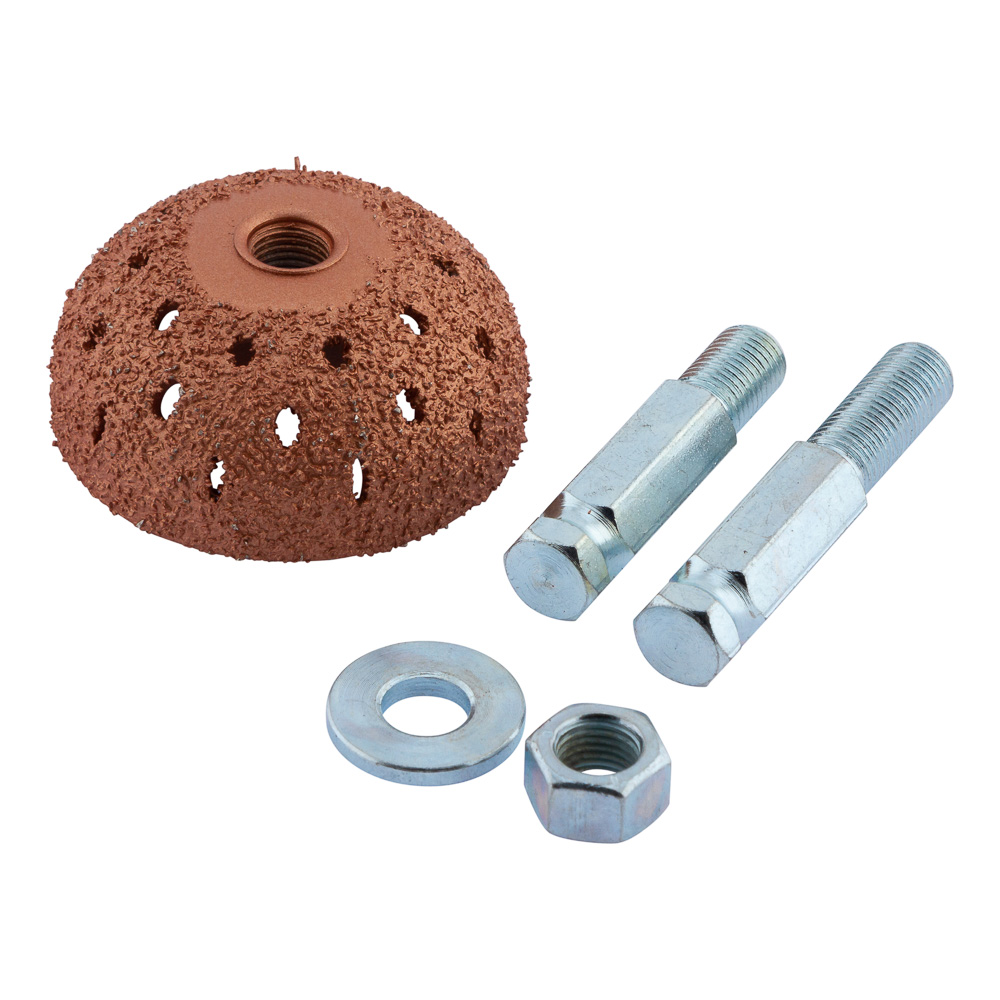

This loose wheel is suitable for the ZionAir pneumatic tire buffer ATB75.
wheel diameter = 55mm
This ZionAir tire buffer on air is suitable for rubber work and roughening of tires.The machine has a variable speed that can be operated with the handle.
diameter rough wheel = 55mm
free speed = 2500rpm
operating pressure = 6,3 bar

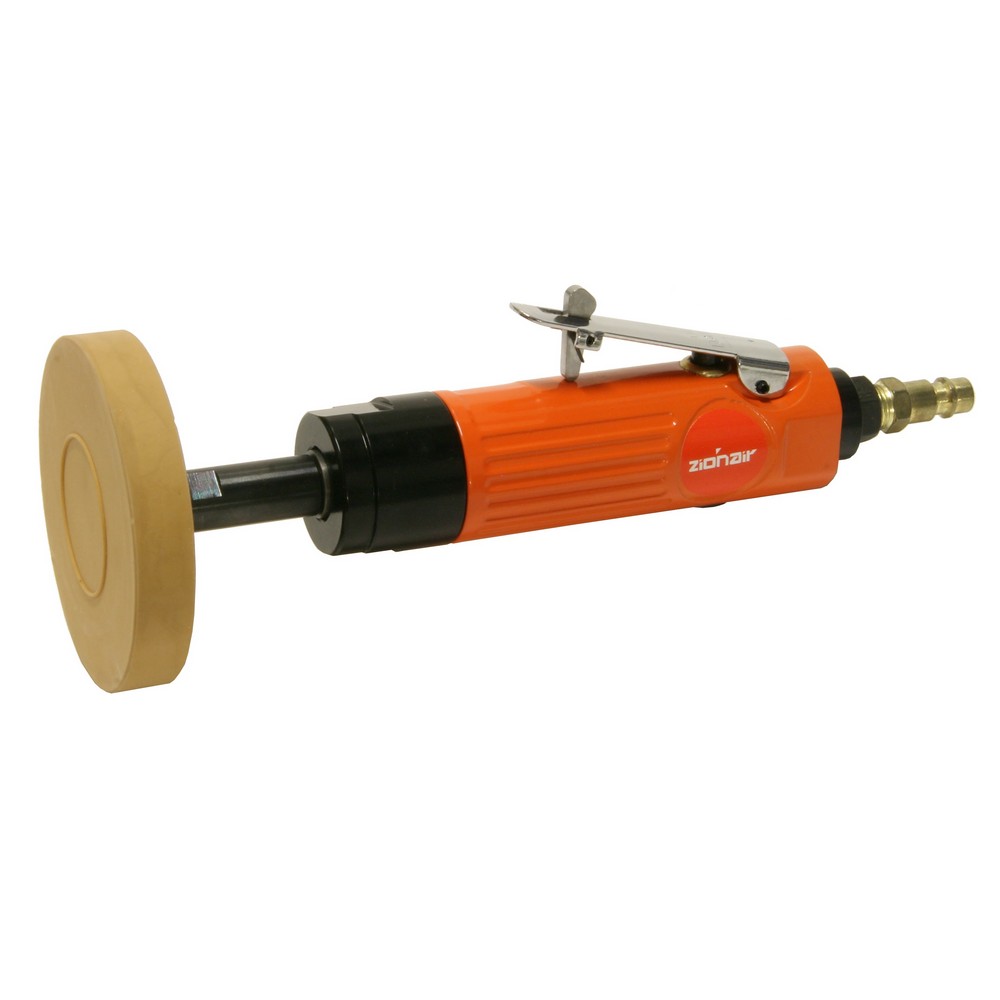

Heavy duty air stripping tool / caramel disk machine
This pneumatic sticker remover is used, among others, in auto repair shops and other work sites to strip paint and erase. The housing of this air tool exists out of lightweight aluminium and a soft grip. Furthermore, the machine is easy to operate because of the adjustable variable speed.
free speed = 4000rpm
diameter stripping wheel = 88mm
air inlet = 1/4"
average air consumption = 127L/min / 4,5SCFM
working pressure = 6,3bar
Air shear
Comfortable soft grip rubber handle. Heavy duty cutting blades ensure long tool life. Shears most types of plastics and all types of aluminum, tin and steel up to 1,2mm.
- steel = 1,2mm
- strokes per minute = 2200spm
- air inlet = 1/4"
- air hose = 3/8"
- avg. air consumption = 4 SCFM / 113 L/min
- working pressure = 6,3 bar
- length x height = 205 x 142mm
- weight = 1,28kgs
Straight air shear
Specially designed head cutter makes both straight and contour cuts with a minimum of edge distortion.
Shears most types of plastics and all types of aluminum, tin and steel up to 18 gauge (1,2mm).
- strokes per minute = 3200spm

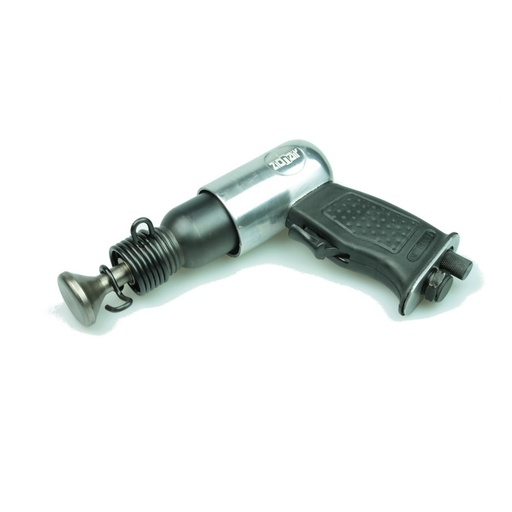

Air tire repair tool
Durable and lightweight aluminum housing.
Built-in power regulator and trigger control.
The special tapping shaft with round flat tapping face to tap the repair spot even and plain.
- chisel shank = 10,185mm
- bore diameter = 19,05mm
- stroke length = 41mm
- blow per min = 4500bpm
- air inlet = 1/4''
- air hose = 3/8''
- avg. air consumption = 5 SCFM / 142 L/min

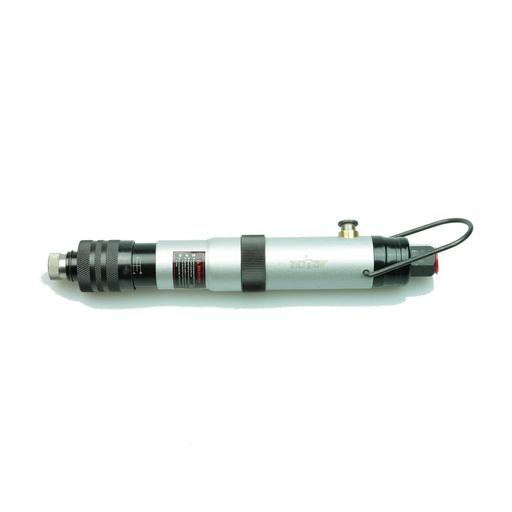

Pneumatic screwdriver
Aluminum housing.
Hold the valve pressed to turn on the other side.
The torque will stop automatically once the locking reaches what is set.
Quick change for all bit types.
With noice reducing hose.
- free speed = 1000rpm
- lock torque = 2 - 8kg/cm

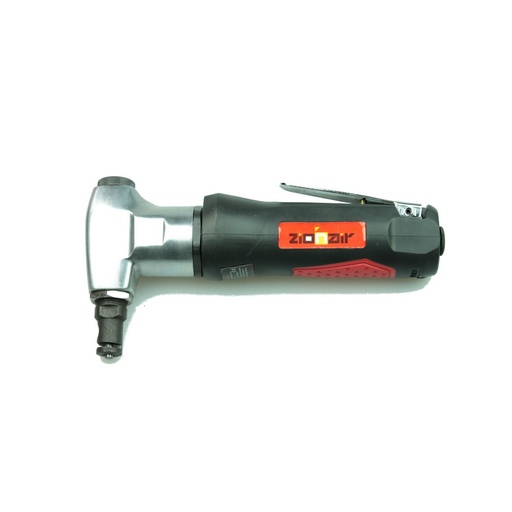

Air nibbler pull type Lightweight aluminum housing with soft grip. Cuts up to 1,5mm steel without leaving burr or deformed edges. Adjustable die can be placed in various cutting positions to suit applications. - steel capacity = 1,5mm - sprokes per minute = 3800spm - average air consumption = 9,8 SCFM / 275 L/min - air pressure = 6,3 bar - air inlet = 1/4'' - hose inlet = 3/8''
Air chiselThis ZionAir pneumatic chisel is ideal for smaller demolition jobs such as tiles and masonry. The chisel lies comfortably in the hand thanks to the ergonomic handle. The set consists of an air chisel, a spring holder and 5 matching chisels. Changing the chisels can be done quickly and easily.
free speed = 3000rpm
diameter bore hole = 15mm
length chisels = 170mm
diameter chisels = 15mm
diameter shank chisels = 11mm
average air consumption = 80L/min @6,3 bar

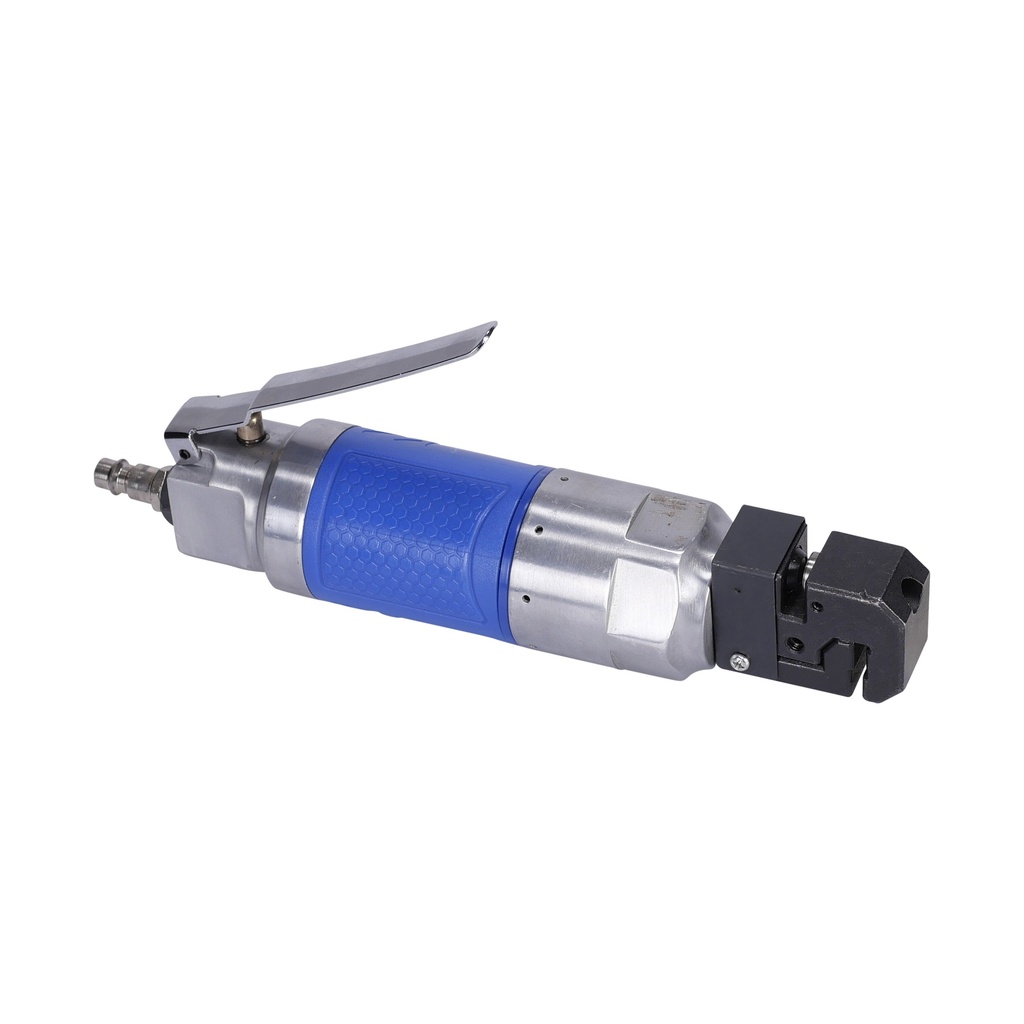

The Pneumatic Punch and eding Pliers from ZionAir is a versatile tool perfect for hole punching and edging. This tool is designed with precision and accuracy in mind, making it easy to use and efficient.
