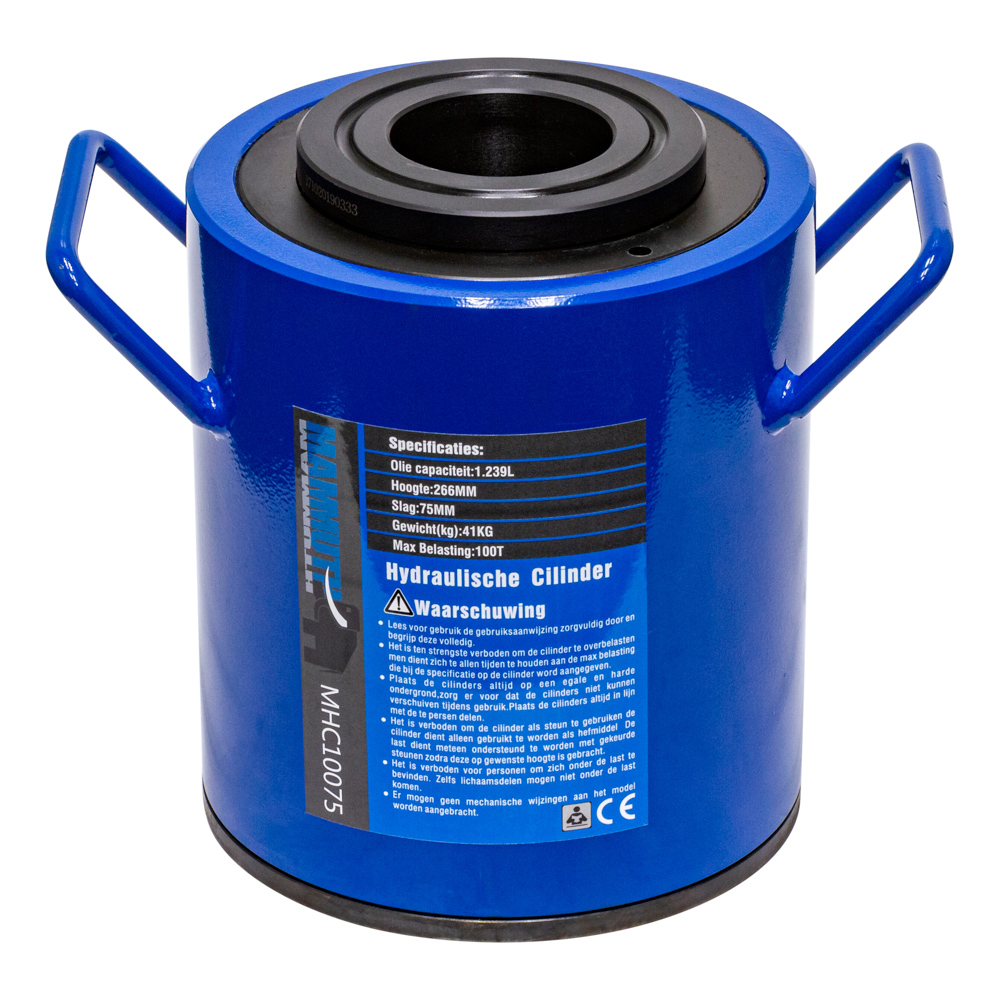

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Specifications
| Capacity | 100 Ton |
| Stroke | 75 mm |
| Pressure max. | 700 Bar |
| Oil capacity | 1.259 L |
| Outside diameter | 224 mm |
| Effective pressure area | 167.8 cm² |
| Bore diameter | 180 mm |
| Principal axis diameter | 145 mm |
| Plunger diameter | 79 mm |
| Oil supply hole thread (Rc) | 3/8" |
| Top cap height | 15 mm |
Product Dimensions
| Length | 295 mm |
|---|---|
| Width | 225 mm |
| Height | 280 mm |
| Weight | 58.0 kg |
Package Dimensions
| Length | 385 mm |
|---|---|
| Width | 335 mm |
| Height | 365 mm |
| Weight | 60.00 kg |
