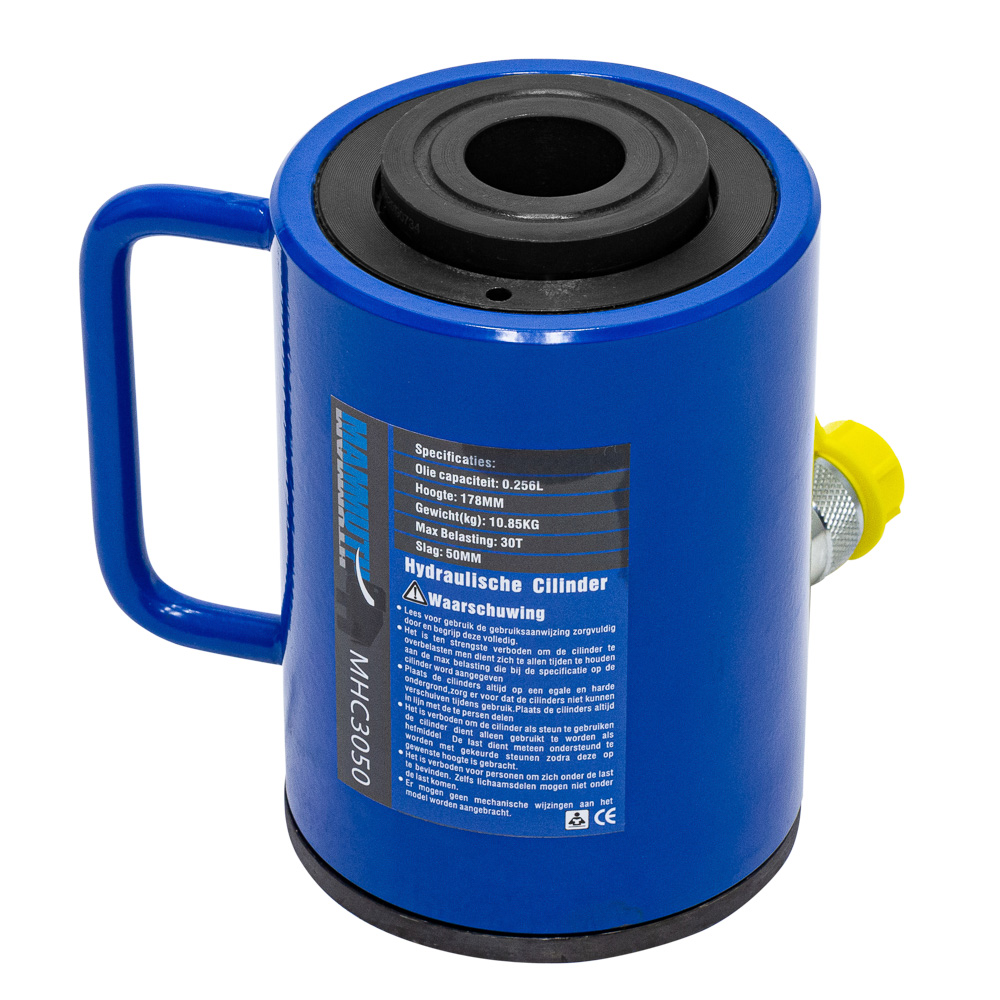

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
output = 20 ton
stroke = 50mm
effective area = 51,1cm^2
oil capacity = 0,256 L
height of product = 178mm
extended height = 238mm
outside diameter = 118mm
bore diameter = 95mm
principal axis diameter = 70mm
plunger diameter = 34mm
oil supply hole thread (Rc) = 3/8"
extended height = 9mm
Product Dimensions: | |
---|---|
Product Length | 180 mm |
Product Width | 110 mm |
Product Height | 180 mm |
Product Weight | 6.0 Kg |
Package Dimensions: | |
Package Length | 275 mm |
Package Width | 235 mm |
Package Height | 215 mm |
Package Weight | 11.70 Kg |
