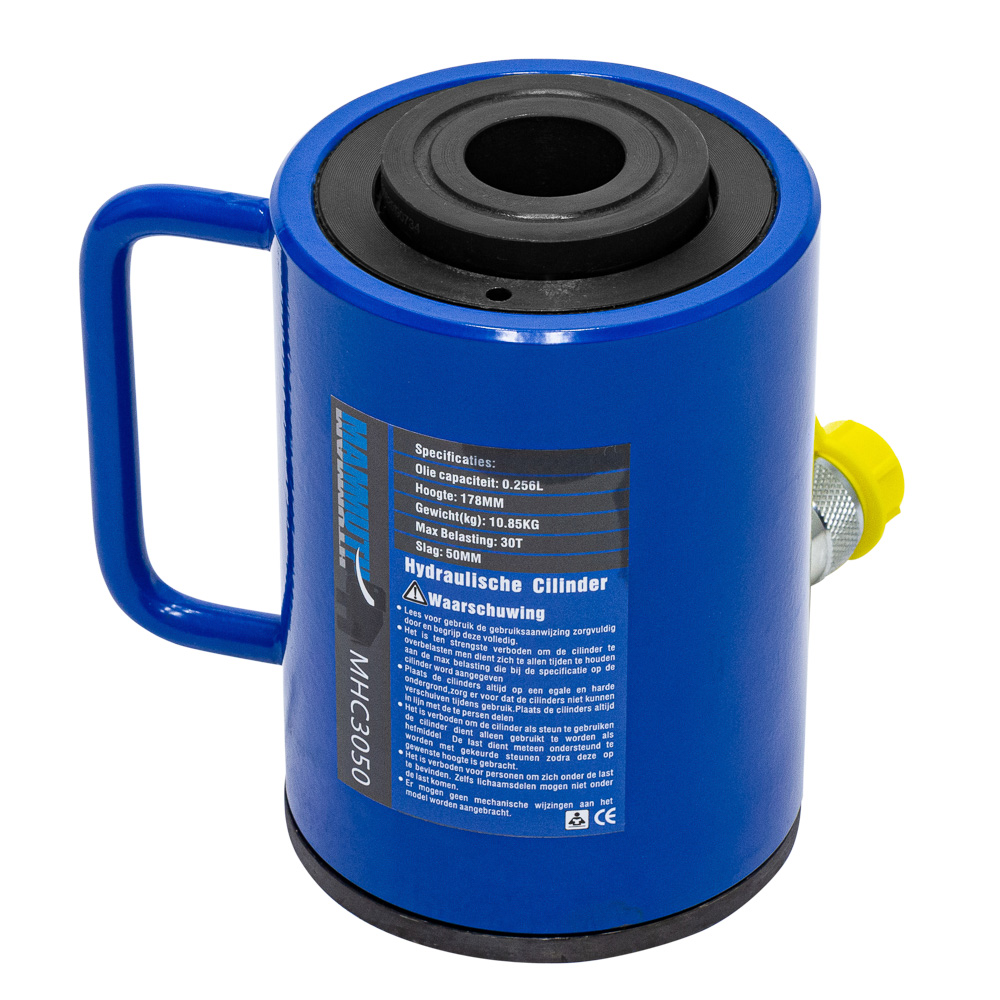

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Specifications
| Capacity | 20 Ton |
| Stroke | 50 mm |
| Pressure max. | 700 Bar |
| Oil capacity | 0.256 L |
| Outside diameter | 118 mm |
| Cylinder effective area | 51.1 cm^2 |
| Bore diameter | 95 mm |
| Principal axis diameter | 70 mm |
| Plunger diameter | 34 mm |
| Oil supply hole thread (Rc) | 3/8" |
| Top cap height | 9 mm |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 180 mm |
| Product Width | 110 mm |
| Product Height | 180 mm |
| Product Weight | 6.0 Kg |
| Package Dimensions: | |
| Package Length | 275 mm |
| Package Width | 235 mm |
| Package Height | 215 mm |
| Package Weight | 11.70 Kg |
