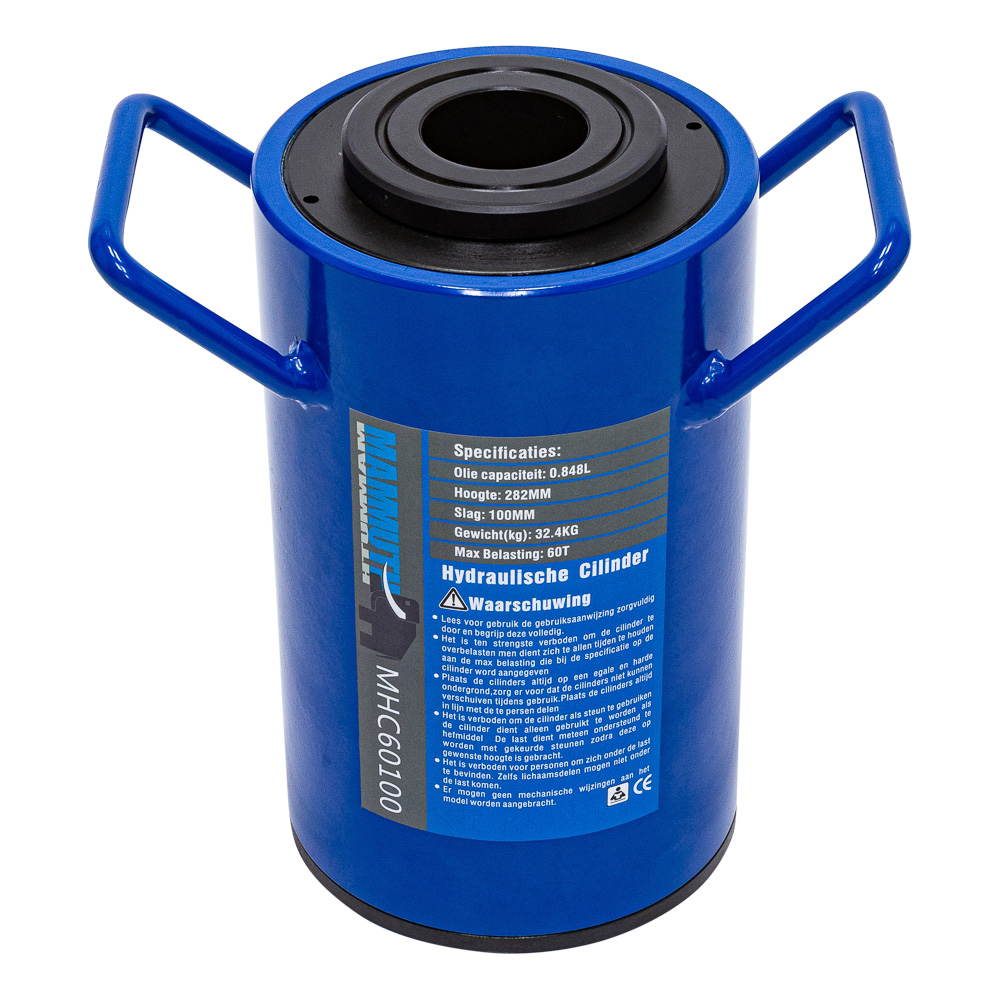

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
output = 60 ton
stroke = 100mm
effective area = 84,7cm^2
oil capacity = 0,848 L
height of product = 315mm
extended height = 311mm
outside diameter = 187mm
bore diameter = 135mm
principal axis diameter = 100mm
plunger diameter = 54mm
oil supply hole thread (Rc) = 3/8"
extended height = 12mm
Product Dimensions: | |
---|---|
Product Length | 235 mm |
Product Width | 165 mm |
Product Height | 260 mm |
Product Weight | 31.6 Kg |
Package Dimensions: | |
Package Length | 330 mm |
Package Width | 325 mm |
Package Height | 265 mm |
Package Weight | 34.00 Kg |
