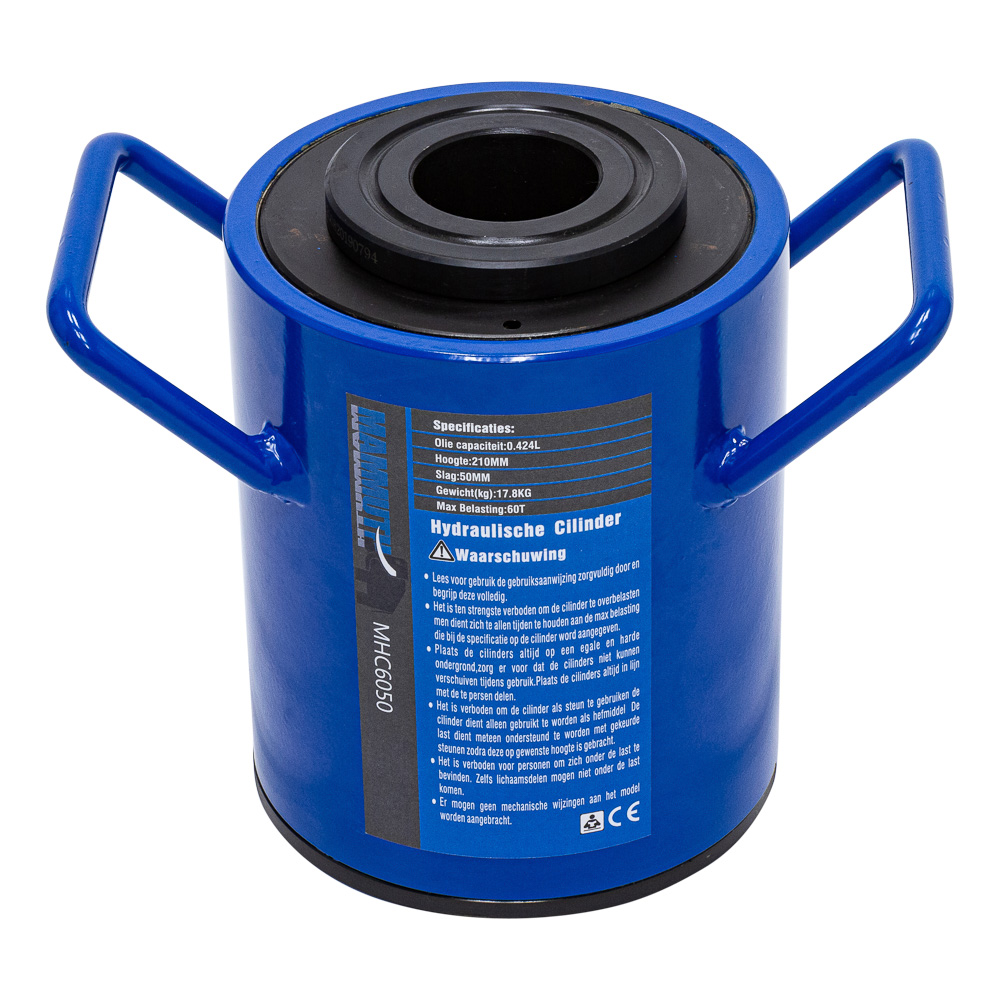

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
output = 60 ton
stroke = 50mm
effective area = 84,7cm^2
oil capacity = 0,424 L
height of product = 210mm
extended height = 261mm
outside diameter = 165mm
bore diameter = 135mm
principal axis diameter = 100mm
plunger diameter = 54mm
oil supply hole thread (Rc) = 3/8"
extended height = 12mm
Product Dimensions: | |
---|---|
Product Length | 235 mm |
Product Width | 165 mm |
Product Height | 210 mm |
Product Weight | 26.0 Kg |
Package Dimensions: | |
Package Length | 300 mm |
Package Width | 295 mm |
Package Height | 310 mm |
Package Weight | 27.00 Kg |
