jacking beam / hydraulic pit jack / hydropneumatic jack pit short

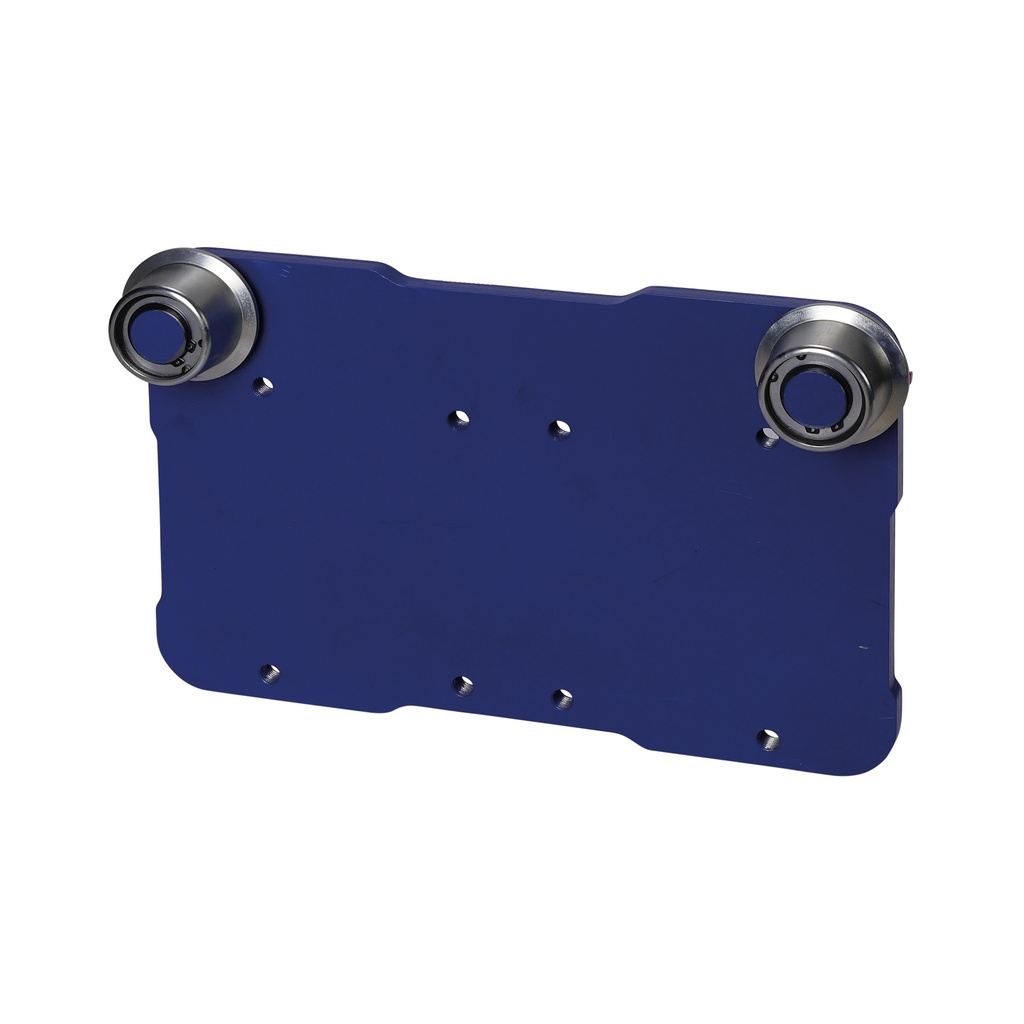

This long plate with conical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have conical rail type.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.
Specifications
| Wheel diameter | 80 mm |
| Adapter type | long plate |
| Plate height | 338 mm |
| Plate width | 520 mm |
| Rails type | conical |
| Wheel width max. | 45 mm |
| Conical roller angle | 8.6° |
Product Dimensions
| Length | 340 mm |
|---|---|
| Width | 540 mm |
| Height | 90 mm |
| Weight | 60.0 kg |
Package Dimensions
| Length | 420 mm |
|---|---|
| Width | 595 mm |
| Height | 360 mm |
| Weight | 70.00 kg |
