jacking beam / hydraulic pit jack / hydropneumatic jack pit short

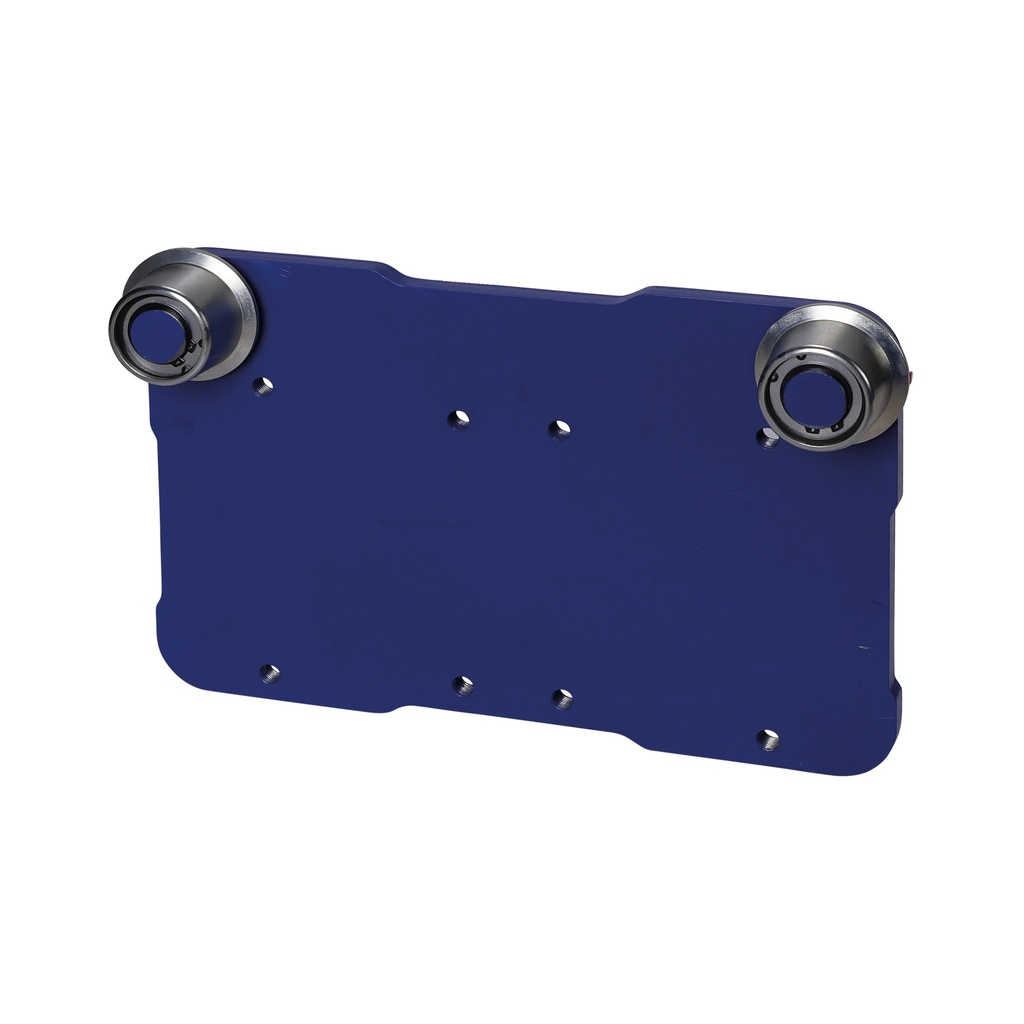

This long plate with conical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have conical rail type.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.
Specifications
| Raddurchmesser | 80 mm |
| Typadapter | lange Platte |
| Höhenplatte | 338 mm |
| Plattenbreite | 520 mm |
| Schienentyp | konisch |
| Breite der Rollen max. | 45 mm |
| Konischer Rollenwinkel | 8.6° |
Produkt Abmessungen:
| Length | 340 mm |
|---|---|
| Width | 540 mm |
| Height | 90 mm |
| Weight | 60,0 kg |
Abmessungen der Verpackung:
| Length | 420 mm |
|---|---|
| Width | 595 mm |
| Height | 360 mm |
| Weight | 70,00 kg |
