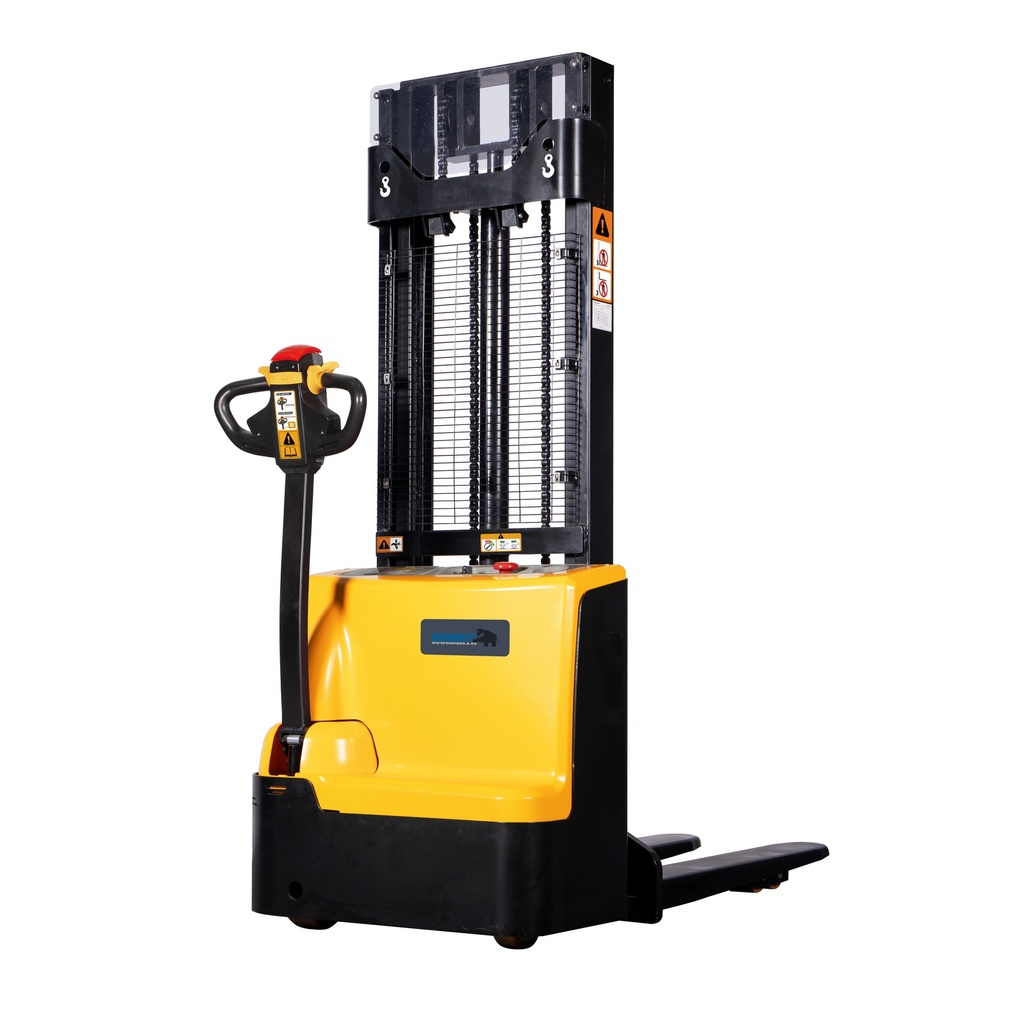

The Mammuth electric stacker is designed for internal pallet transport and stacking operations in warehouses, production areas and other industrial environments. With a lifting capacity of 1500 kg and a lifting height of up to 3500 mm, this electric stacker is suitable for both floor-level handling and placement in racking systems. The fork length of 1150 mm is compatible with standard pallet sizes.
Driving, lifting and lowering are fully electric. Polyurethane wheels ensure stable movement on flat warehouse floors and are suitable for intensive use. The pallet stacker is equipped with a long-life lithium battery and is charged via an internal 230 V charger, making intermediate charging easy and allowing the machine to be quickly ready for use again. The digital display provides insight into battery status, charging indication, fault codes and the current operating status.
Variable lifting and lowering speed makes it possible to adjust movement to the type of load and the working environment. During lowering, the speed is automatically reduced during the final ±10 cm, ensuring controlled pallet placement and reducing shocks and noise. With a turning radius of 1425 mm, this electric pallet stacker is also suitable for working in aisles where manoeuvrability is important.
Key features:
- Lifting capacity 1500 kg
Suitable for lifting and transporting loaded pallets.
- Lifting height 3500 mm
For stacking and positioning at various working and racking heights.
- Lithium battery
Low-maintenance battery with long service life and internal charger for easy charging.
- Variable lifting and lowering speed
Speed adjustable to load and working environment, with additional deceleration during the final ±10 cm for controlled lowering.
- Digital display with status information
Displays battery status, charging notification, fault codes and operational status during use.
Specifications
| Lifting capacity | 1500 kg |
| Lifting height max. | 3500 mm |
| Battery type | lithium-ion |
| Battery voltage | 24V / 60 Ah |
| Power supply | 230V |
| Drive motor power | 0.75 kW |
| Lift motor power | 2.2 kW |
| Lifting speed loaded | 0 - 102 mm/sec. |
| Lifting speed unloaded | 0 - 190 mm/sec. |
| Lowering speed loaded | 30 - 135 mm/sec |
| Lowering speed unloaded | 20 - 200 mm/sec |
| Driving speed loaded max. | 4 km/h |
| Driving speed no-load max. | 4.5 km/h |
| Turning radius | 1425 mm |
| Gradeability max. loaded / unloaded | 5% / 10% |
| Fork size (length x width x height) | 1150 x 160 x 70 mm |
| Fork overall width | 560 mm |
| Wheel material | Polyurethane |
| Brake type | Electromagnetic |
| Product Dimensions: | |
|---|---|
| Product Length | 1,790 mm |
| Product Width | 840 mm |
| Product Height | 2,200 mm |
| Product Weight | 610.0 Kg |
| Package Dimensions: | |
| Package Length | 1,790 mm |
| Package Width | 840 mm |
| Package Height | 2,220 mm |
| Package Weight | 605.00 Kg |
