Combination machine shear brake and roll

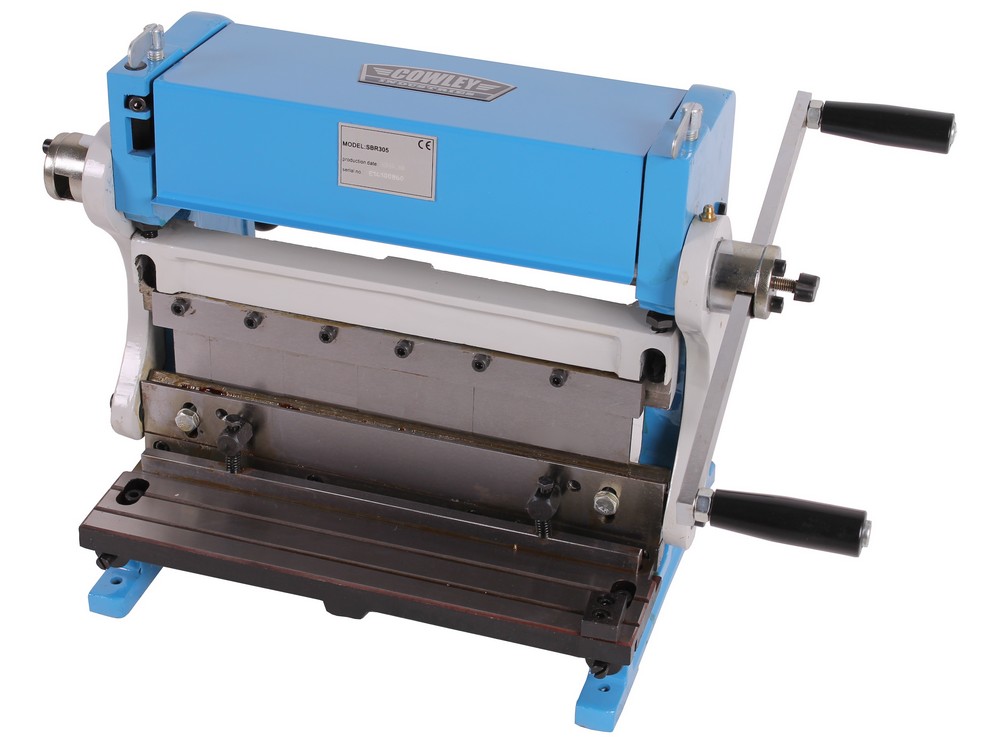

This Cowley shear brake and roll machine is ideal for rolling, cutting and folding sheet steel to a width of 305mm and a thickness of 1mm.
The machine comes with a back gauge.
- bed width = 305mm
- max. shearing thickness = 1mm
- max. bending thickness = 1mm / aluminum 1,2mm
- max. bending angle = 90 degrees
- max. rolling thickness = 1mm / aluminium 1,2mm
- diameter rollers = 39mm
Product Dimensions
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 43.0 kg |
Package Dimensions
| Length | 490 mm |
|---|---|
| Width | 330 mm |
| Height | 420 mm |
| Weight | 45.00 kg |
