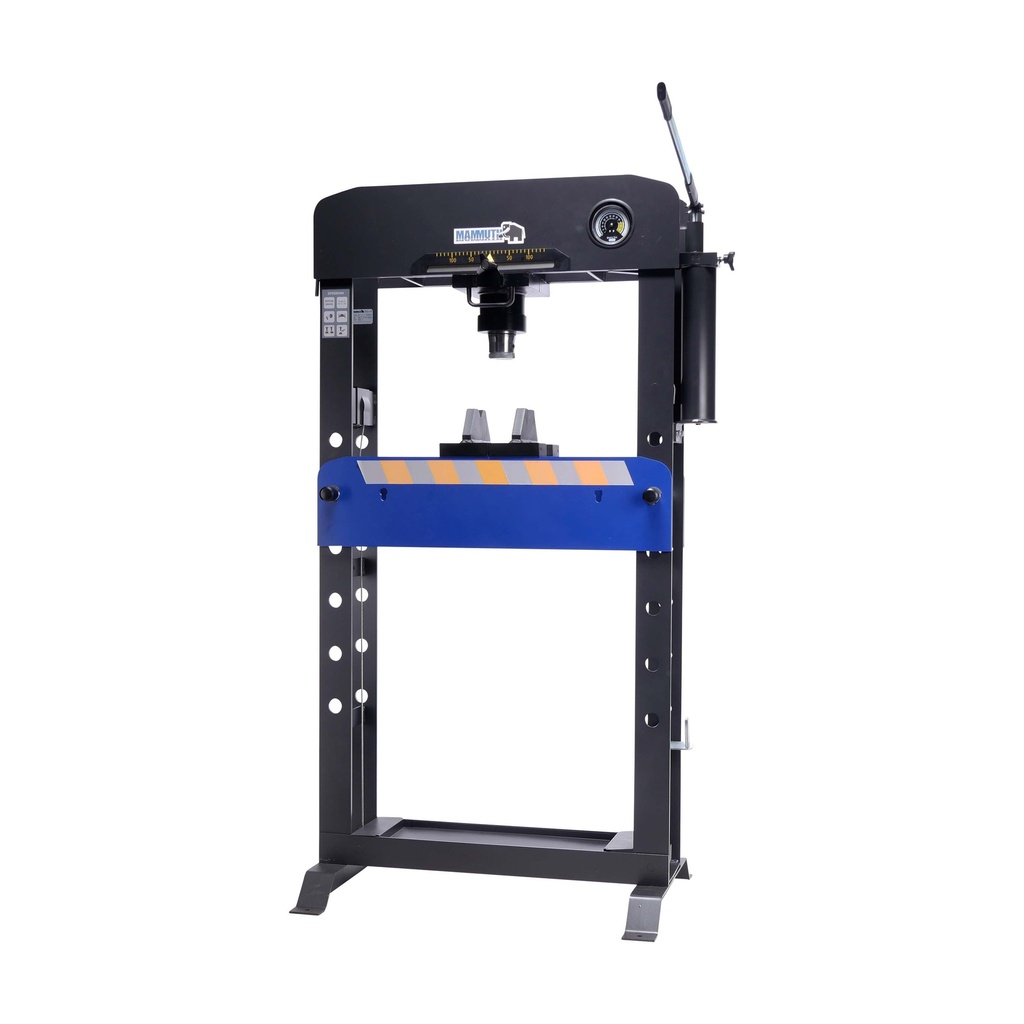

This Mammuth garage press is a powerful and versatile press. Ideal for installing and removing bearings, straightening metal parts, and pressing shafts and bolts. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press offers both power and precision. This makes it a reliable choice for any workshop.
- Two-stage pump: First fast, then precise pressing.
- Hand winch workbed: Easily adjustable with a winch at 6 different heights.
- Side-adjustable cylinder with scale: For precise positioning.
- Interchangeable press adapter: Easily removable for using other attachments.
-
Includes press blocks: Comes with 2 press blocks.
Specifications
| Capacity | 50 ton |
| Workbed width | 750 mm |
| Workbed depth | 200 mm |
| Minimum working height | 120 mm |
| Maximum working height | 700 mm |
| Cylinder stroke | 200 mm |
| Cylinder diameter | ø70 mm |
| Oil capacity | 2.5 L |
| Oil type | OKCH68 |
Product Dimensions
| Length | 1,080 mm |
|---|---|
| Width | 650 mm |
| Height | 1,850 mm |
| Weight | 241.0 kg |
Package Dimensions
| Length | 1,820 mm |
|---|---|
| Width | 1,100 mm |
| Height | 405 mm |
| Weight | 255.00 kg |
