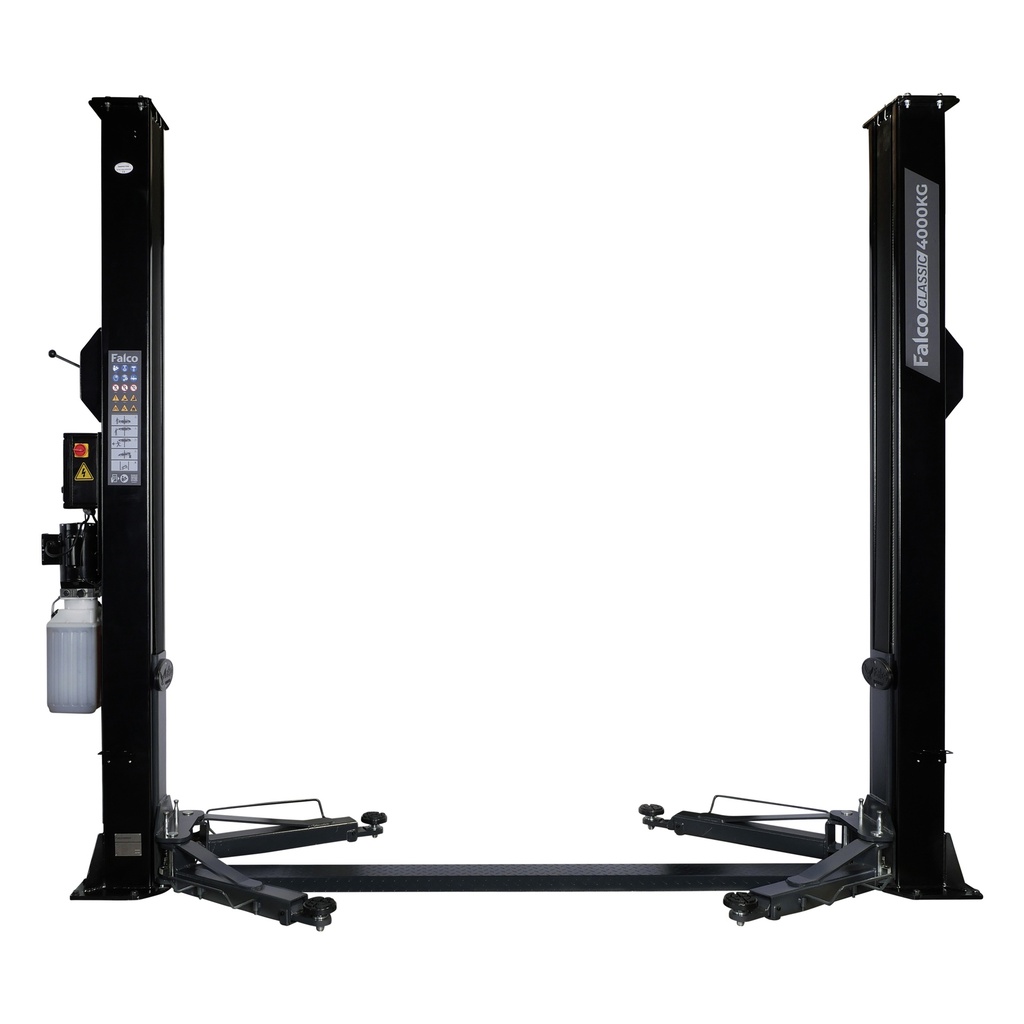

Two post lift / two colum lift
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Classic" model is a very and succesful and reliable model. Due to its simple but sturdy structure, the lift has no weak superfluous components and is extremely durable. Thanks to the new manual sync lock system, the lift can easily be unlocked on both sides with just one action.
Features:

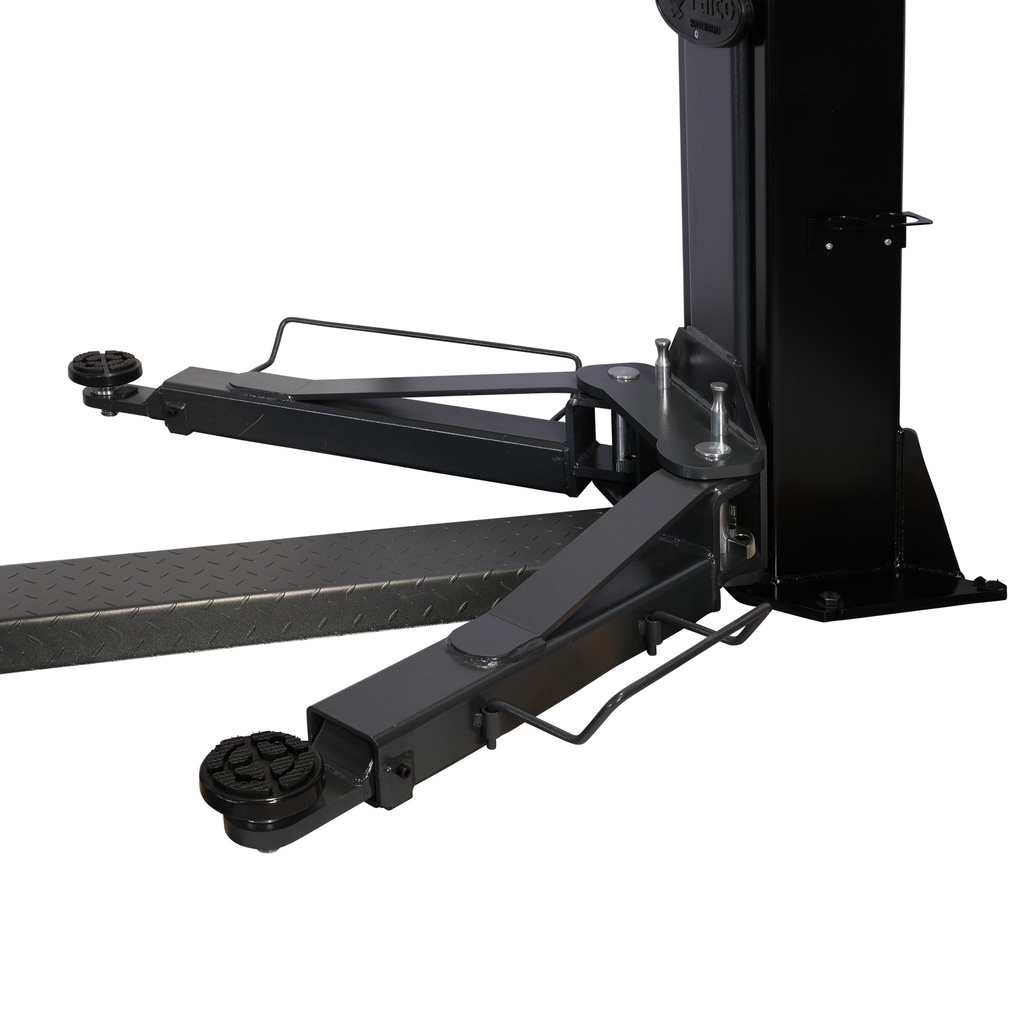

double telescopic extendable lifting arms
sync lock system
good quality hydraulic pump

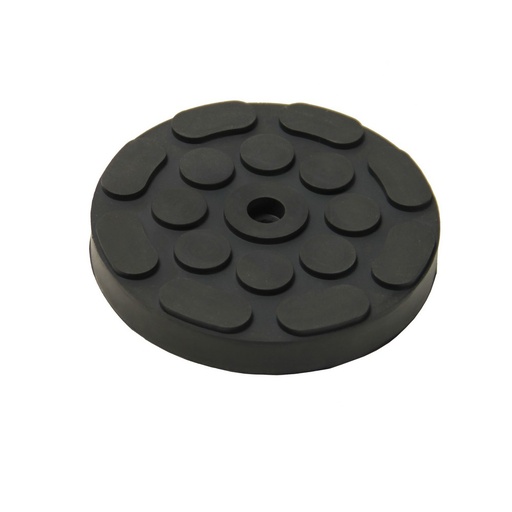

in height adjustable lifting pads

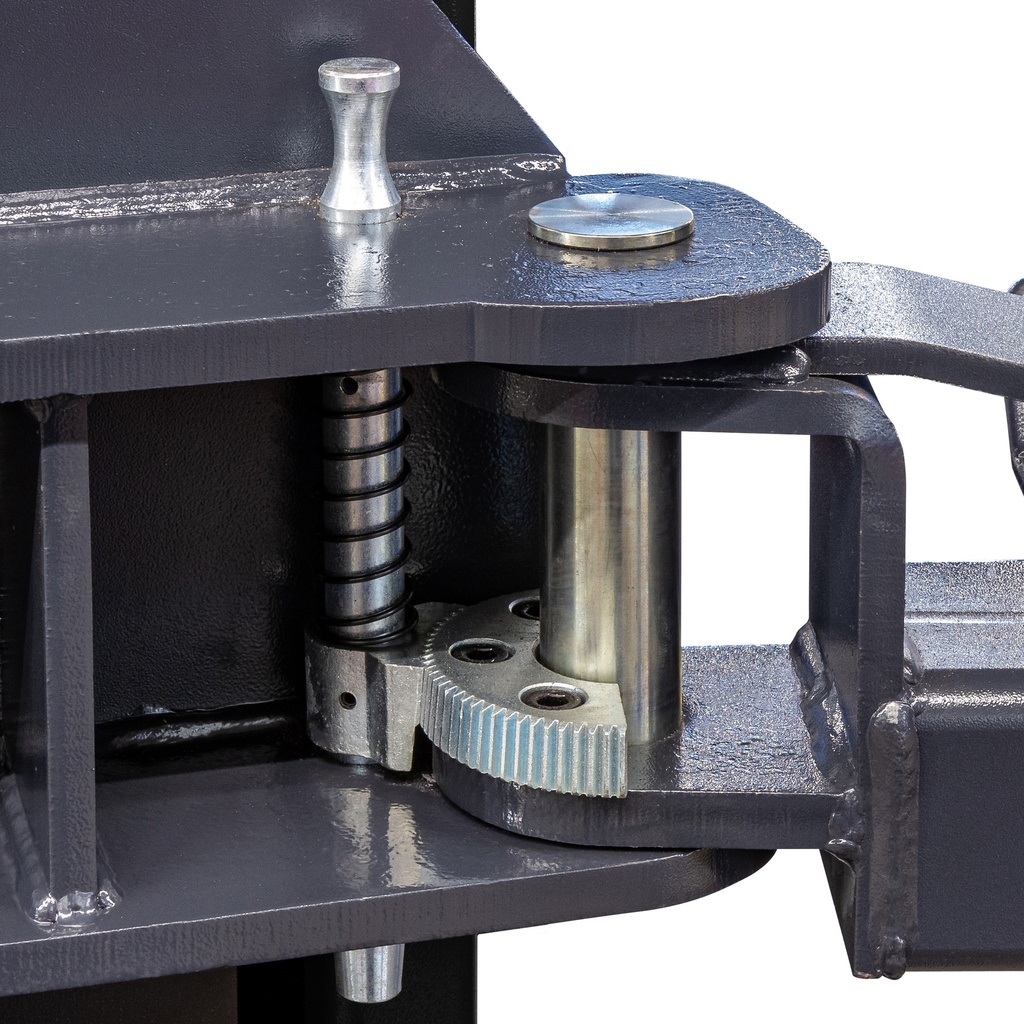

automatic support arm locking
fully automatic electric detent
protective rubbers door stop
foot protection at every lifting arm

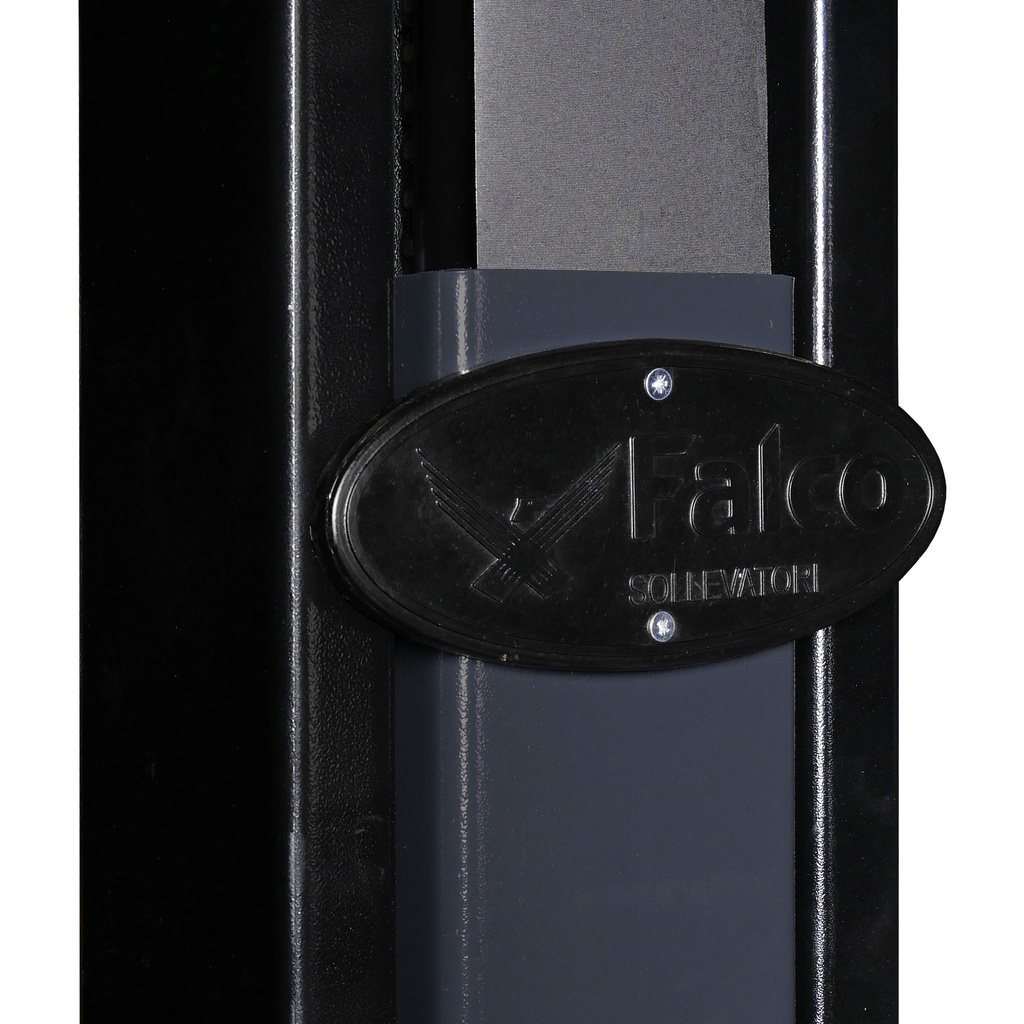

protective caps on the inside of the columns
robust columns manufactured from rolled steel
hydraulic cylinder on both sides
extreme low threshold of 45mm

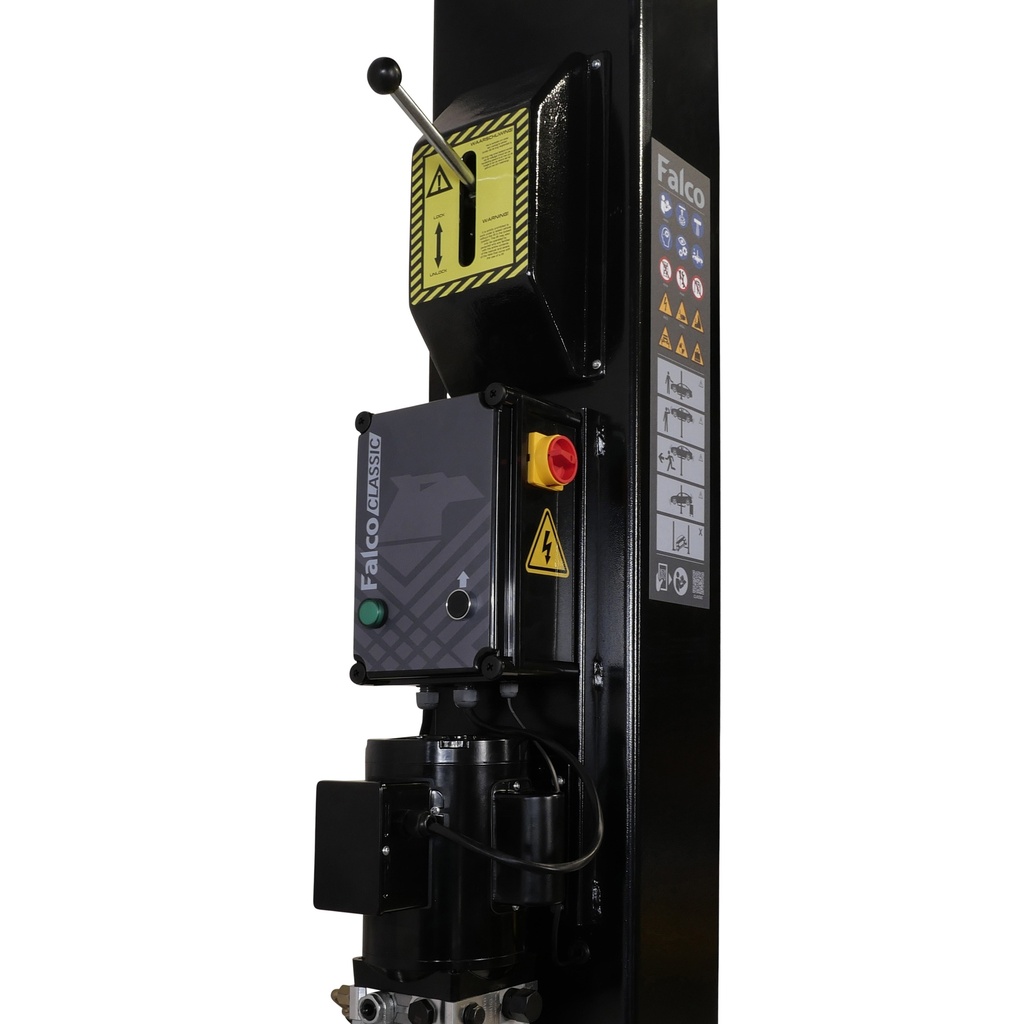

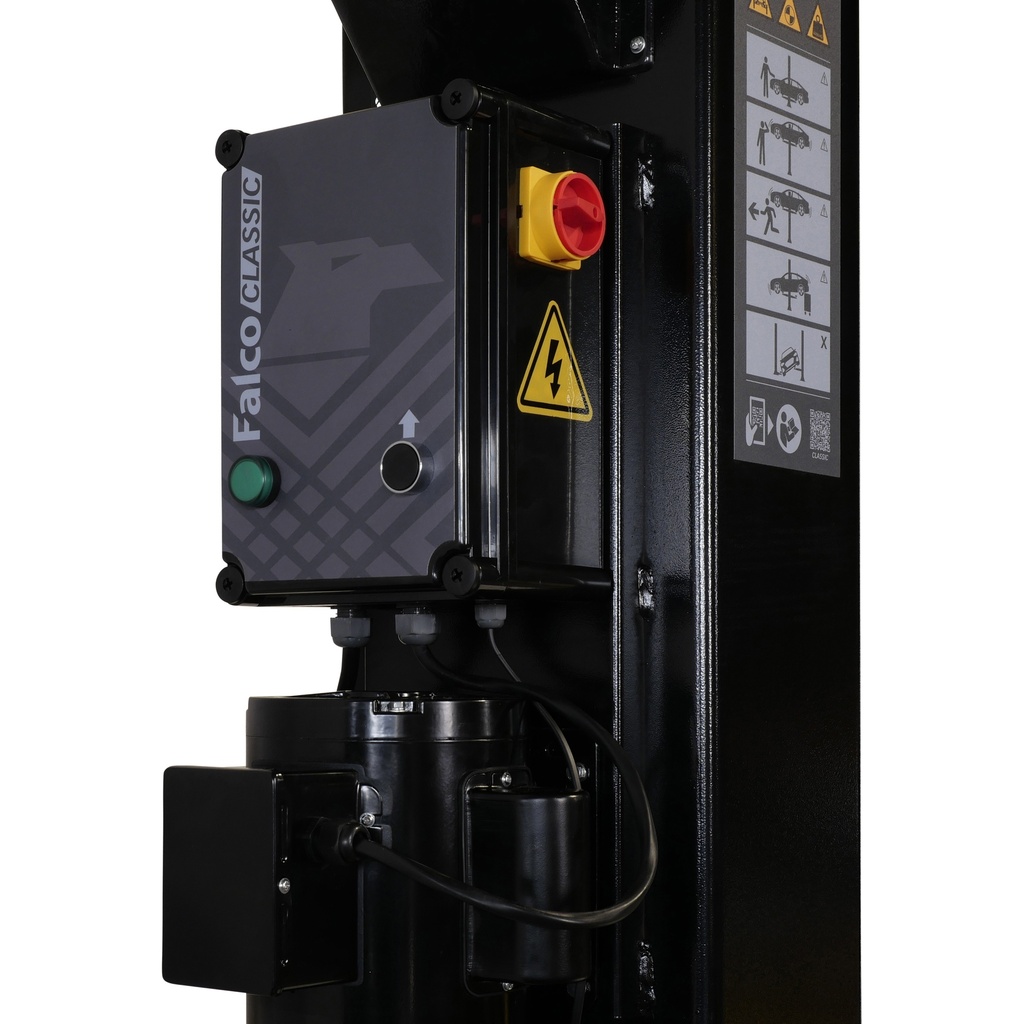

dead mans switch for lifting and lowering
automatic protection against overcharge
height limit switch
12 heavy M18 security bolts
Technical specifications:
capacity = 4000kg
voltage = 230V
motor power = 2,2kW
min. working height = 95mm
max. lifting height = 2000mm
reach short lifting arm = 600 - 870mm
reach long lifting arm = 840 - 1320mm

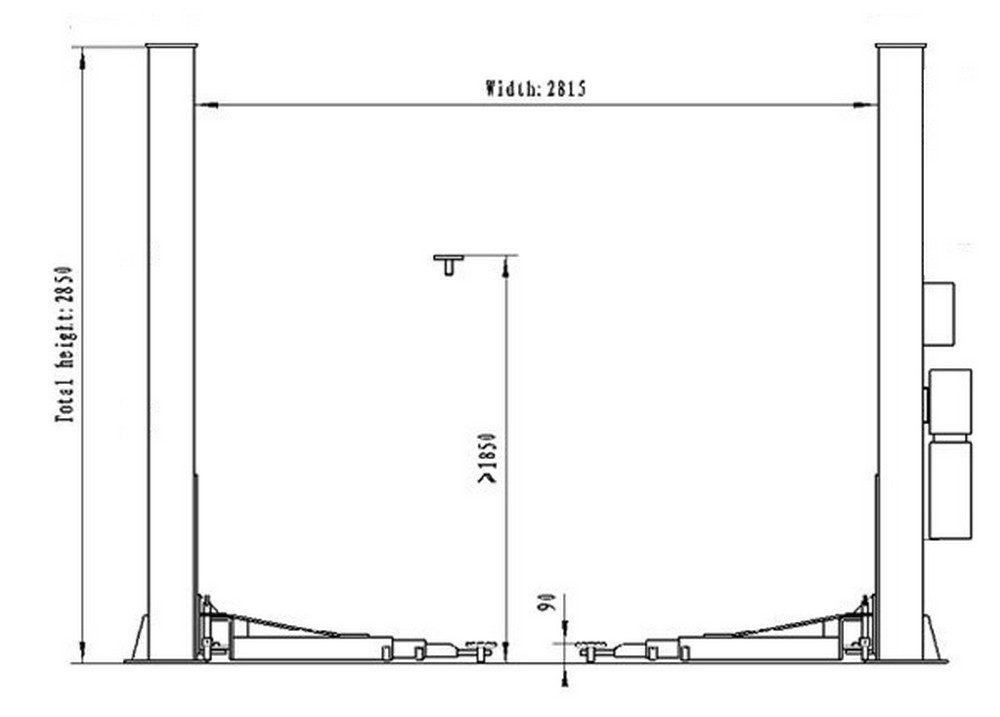

distance between the columns = 2815mm
height of the columns = 2850mm
weight = 610kg
oil capacity = 10L CH32 (not included!)
All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.
Product Dimensions: | |
---|---|
Product Length | 3,440 mm |
Product Width | 700 mm |
Product Height | 2,850 mm |
Product Weight | 610.0 Kg |
Package Dimensions: | |
Package Length | 3,000 mm |
Package Width | 470 mm |
Package Height | 830 mm |
Package Weight | 650.00 Kg |
