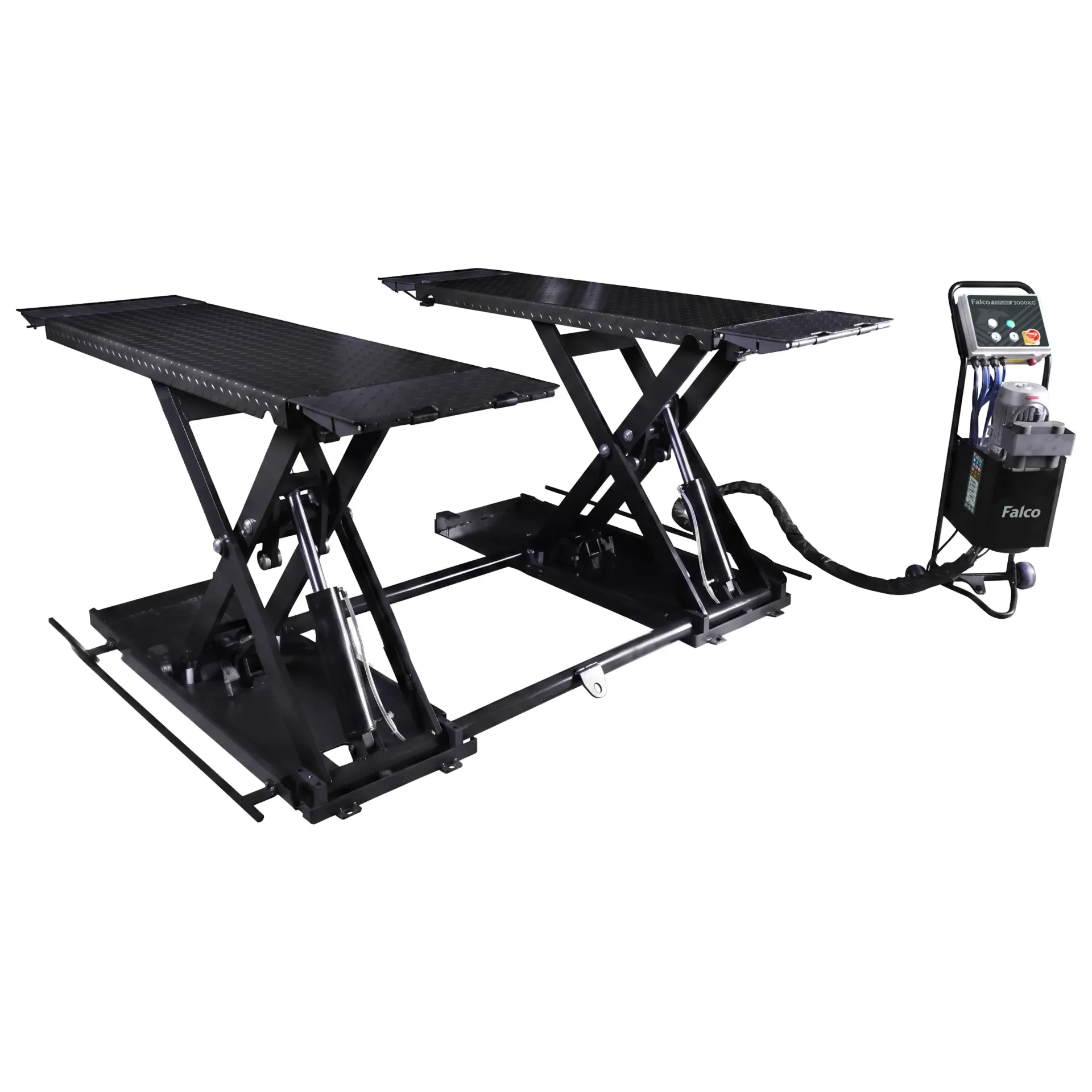

Fully automatic car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge
This Falco tire bridge focuses on efficiency and ease of use. Thanks to the Sync safety system, it always drops synchronously. The bridge is equipped with an acoustic signal and a rail is fitted at the bottom for foot protection. The lanes are made of wear-resistant tear plate over the entire length. The stable solid design is easy to use anywhere on a straight surface and also includes mounting holes for fixed installation. It can be used both mobile and fixed. The bridge is supplied as standard including a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop.
Characteristics:
Extra low ramp height of 110mm
Mobile tire bridge
Powerful hydraulic cylinders
Fully automated electric safety interlock
Foot protection incl. acoustic safety signal
Start elevator
Adjustable ramp / extension piece
Foot protection switch
Manual emergency valve, lowering also possible in the event of a power failure
Incl. Wheel set, plug and rubber support blocks
Technical specifications:
capacity = 3000 kg
voltage = 230V
motor power = 1,5kW
min. lifting height = 115mm
max. lifting height = 985 / 1025mm
lock = automatic
platform length = 1450 - 1984mm
platform width = 515mm
width between platforms = 810mm
lifting time = 35 seconds
drop time = 25 seconds
weight = 680 kg
Product Dimensions: | |
---|---|
Product Length | 1,984 mm |
Product Width | 1,861 mm |
Product Height | 1,000 mm |
Product Weight | 680.0 Kg |
Package Dimensions: | |
Package Length | 2,000 mm |
Package Width | 1,700 mm |
Package Height | 1,200 mm |
Package Weight | 700.00 Kg |
