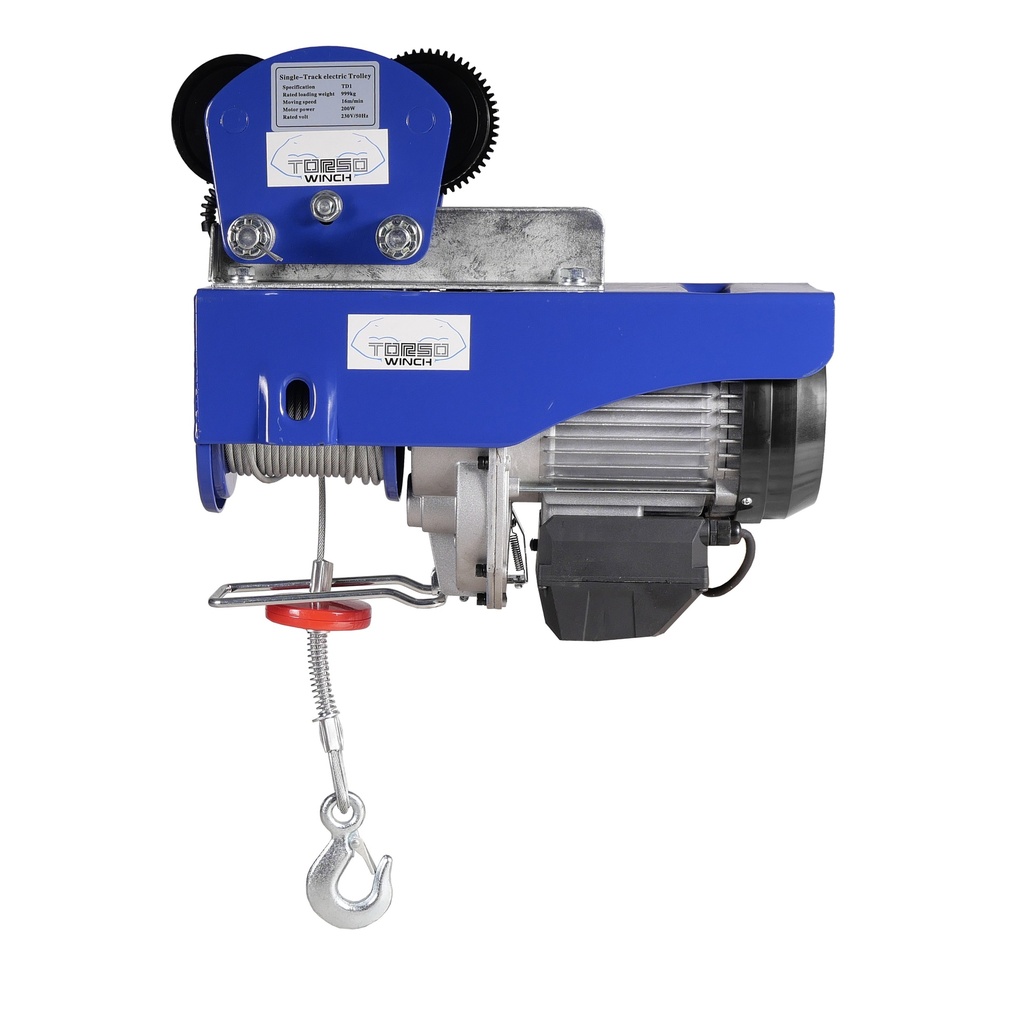

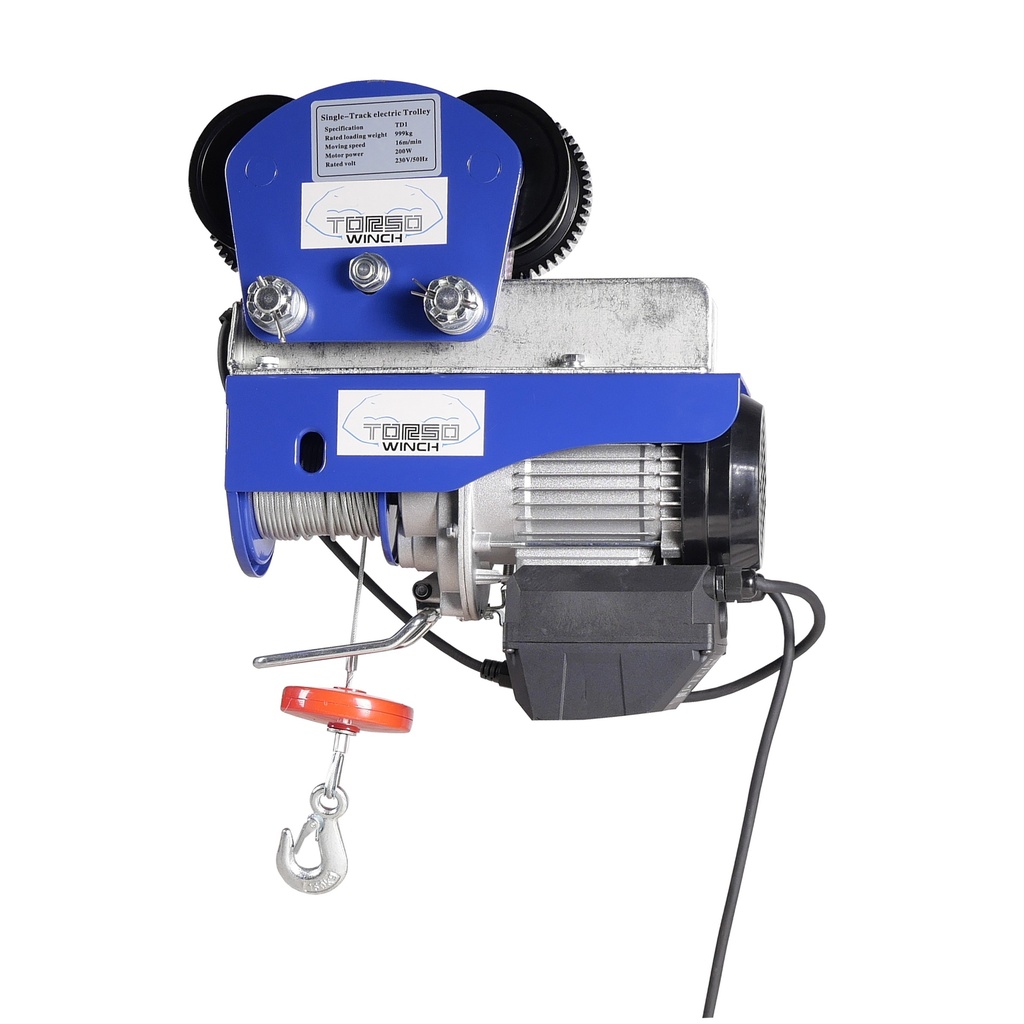

With the help of this Torso electric trolley it is possible to make electric hoists, chain hoists and ratchet hoists mobile. The trolley can be attached to both H and I beams, from a minimum of 68mm to a maximum of 110mm wide.
The trolley is supplied with mounting plates, making it suitable for our Torso electric hoists.
With the supplied spacers the risk is prevented that the trolley runs against the wall.

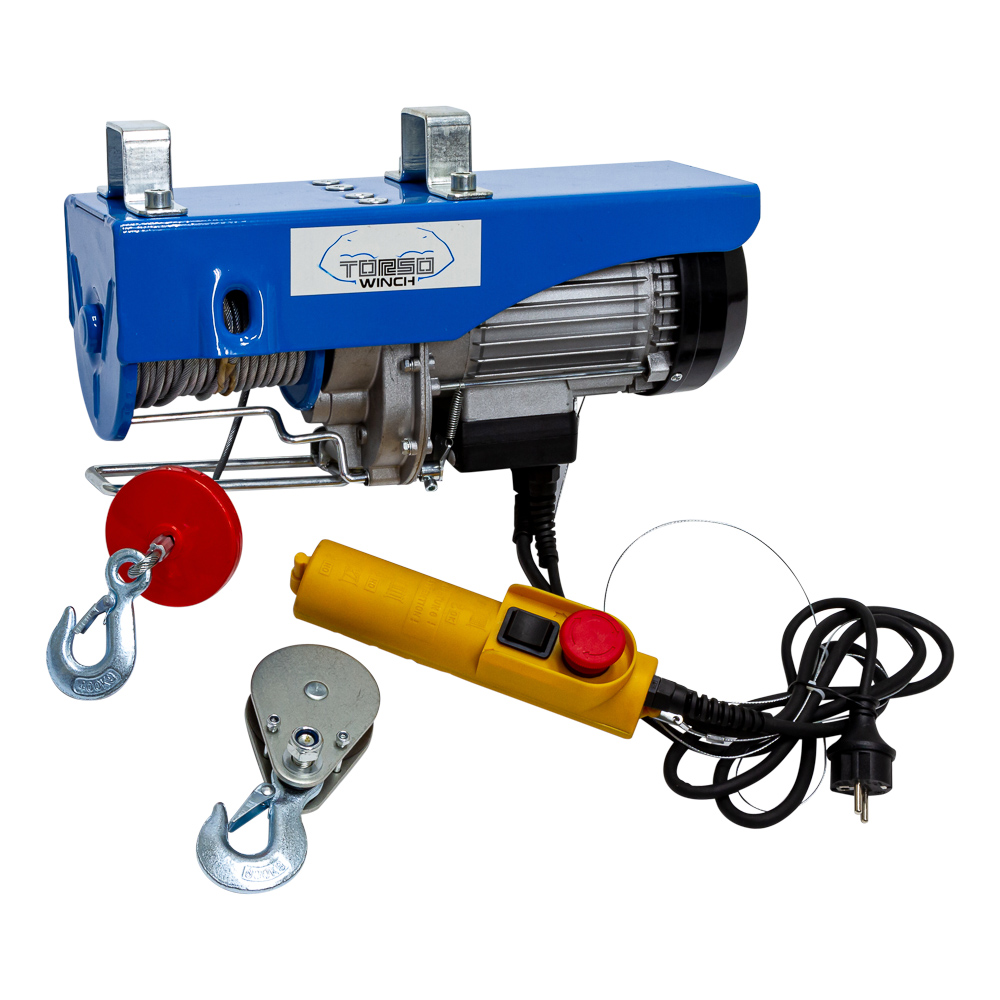

Suitable for the electric hoists: HC0200E, HC0300E, HC0600E, HC0800E and HC0990E.

Specifications:

• capacity = 1000kg

• power = 200W

• speed = 16 m/min

• power cable length = 550mm

• control cable length = 1500mm

Elektrokettenzug

Dieser Elektrokettenzug von Torso ist ideal für alle Arten von Hebearbeiten in Werkstätten, Garagen und Lagerhallen. Mit dem robusten Haken lässt sich das Hebezeug leicht an Trägerklemmen und einfachen Laufkatzen anbringen.

Dank der elektrischen Bedienung ist ein schweres Heben von Hand nicht mehr erforderlich.

Technische Spezifikationen:

• Kapazität = 150kg

• Hubhöhe = 3m

• Hubgeschwindigkeit = 2,3m/min

• Kettendurchmesser = 4mm

• Steuerkabellänge = 1,5m

• Spannung = 230V / 50Hz

• Strom = 1,0A

• Leistung = 205W

• Zugfestigkeit = ≥ 900N / mm²

• Schutzklasse = IP54

• Isolationsklasse = B

Elektrokettenzug

Dieser Elektrokettenzug von Torso ist ideal für alle Arten von Hebearbeiten in Werkstätten, Garagen und Lagerhallen. Mit dem robusten Haken lässt sich das Hebezeug leicht an Trägerklemmen und einfachen Laufkatzen anbringen.

Dank der elektrischen Bedienung ist ein schweres Heben von Hand nicht mehr erforderlich.

Technische Spezifikationen:

• Kapazität = 300kg

• Hubhöhe = 5,5m

• Hubgeschwindigkeit = 3m/min

• Kettendurchmesser = 5mm

• Steuerkabellänge = 1,5m

• Spannung = 230V / 50Hz

• Strom = 1,7A

• Leistung = 410W

• Zugfestigkeit = ≥ 900N / mm²

• Schutzklasse = IP54

• Isolationsklasse = B

Elektrokettenzug

Dieser Elektrokettenzug von Torso ist ideal für alle Arten von Hebearbeiten in Werkstätten, Garagen und Lagerhallen. Mit dem robusten Haken lässt sich das Hebezeug leicht an Trägerklemmen und einfachen Laufkatzen anbringen.

Dank der elektrischen Bedienung ist ein schweres Heben von Hand nicht mehr erforderlich.

Technische Spezifikationen:

• Kapazität = 500kg

• Hubhöhe = 5,5m

• Hubgeschwindigkeit = 2,8m/min

• Kettendurchmesser = 6,3mm

• Steuerkabellänge = 1,8m

• Spannung = 230V / 50Hz

• Strom = 2,4A

• Leistung = 540W

• Zugfestigkeit = ≥ 900N / mm²

• Schutzklasse = IP54

• Isolationsklasse = B

Elektro Seilwinde

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:

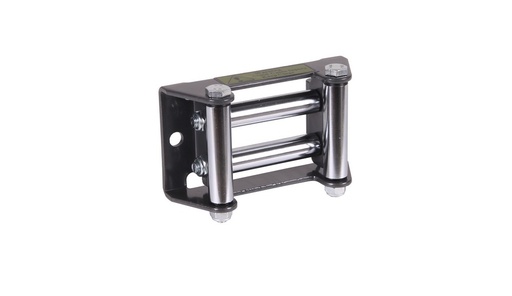

- 4way fair load roller, for excellent cable mobility.

- mounting plate, ensures correct mounting of the winch.

- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 12V single line
- rated pull = 4000lbs (1800kg)
- gear reduction ratio = 198:1
- Serie-wound motor = 12V 1.6HP
- drum size = 50x76,5mm
- cable length = 10m
- cable diameter = 6mm
- line pull = 0kg, 454kg, 907kg, 1800kg
- line speed = 4.9mpm, 3.2mpm, 2.8mpm, 1.5mpm
- amp draw = 17A, 70A, 105A, 180A
- layer of cable = 1, 2, 3, 4
- pull per layer = 1800kg, 1460kg, 1225kg, 1055kg
- cap per layer = 2m, 4.3m, 7.2m, 10m
- mounting dimensions heart to heart = 125 x 75mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- optional mounting plate, ensures correct mounting of the winch.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 12V single line
- rated pull = 8000lbs (3600kg)
- gear reduction ratio = 218:1
- Serie-wound motor = 12V 5.5HP
- drum size = 63.5x224mm
- cable length = 28m
- cable diameter = 7.8mm
- line pull = 0kg, 907kg, 1814kg, 2722kg, 3600kg
- line speed = 7.8mpm, 4.88mpm, 3.63mpm, 2.98mpm, 2.44mpm
- amp draw = 80A, 130A, 180A, 230A, 290A
- layer of cable = 1, 2, 3, 4
- pull per layer = 3600kg, 3012kg, 2540kg, 2177kg
- cap per layer = 6m, 13.2m, 22m, 28m
- mounting dimensions heart to heart = 255 x 115mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:

• 4-way fair load roller, for excellent cable mobility

• remote control: can be used with both cable and wireless

• length control cable = 3.8m

• range wireless control = 65m

• battery = L1028F, not rechargeable

• clevis pinned / latched hook

• 1.8m battery conection cable

• hand operated clutch for free spooling

• automatic brake in the event of a power failure

• 1.5 ton pulley block


Optional mounting plate, ensures correct mounting of the winch.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specifications:

• 12V single line

• rated pull = 5443kg (12000lbs)

• gear reduction ratio = 265:1

• Serie-wound motor = 12V 6HP

• drum size = 63 x 226mm

• cable length = 25m

• cable diameter = 9.5mm

• line pull = 0kg, 1814kg, 2722kg, 4536kg, 5443kg

• line speed = 6.8mpm, 3.8mpm, 3mpm, 2.1mpm, 1.7mpm

• amp draw = 80A, 170A, 210A, 310A, 360A

• layer of cable = 1, 2, 3, 4

• pull per layer = 5443kg, 4490kg, 3765kg, 3175kg

• cap per layer = 6m, 13m, 22m, 25m

• mounting dimensions heart to heart = 255 x 115mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 12V single line
- rated pull = 15000lbs (6804kg)
- gear reduction ratio = 262:1
- Serie-wound motor = 12V 4.5HP
- drum size = 76x224mm
- cable length = 25m
- cable diameter = 11mm
- line pull = 0kg, 907kg, 18014kg, 3629kg, 6804kg
- line speed = 6mpm, 3.1mpm, 2.6mpm, 2.4mpm, 1.2mpm
- amp draw = 70A, 150A, 200A, 250A, 420A
- layer of cable = 1, 2, 3, 4
- pull per layer = 6804kg, 5806kg, 4990kg, 4445kg
- cap per layer = 4.6m, 10.7m, 18.2m, 28m
- mounting dimensions heart to heart = 255 x 115mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- mounting plate, ensures correct mounting of the winch.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional, see section related products.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 12V single line
- rated pull = 2000lbs (900kg)
- gear reduction ratio = 153:1
- Serie-wound motor = 12V 1HP
- drum size = 32x73mm
- cable length = 15m
- cable diameter = 4mm
- line pull = 0kg, 227kg, 454kg, 680kg, 900kg
- line speed = 3.2mpm, 2.8mpm, 2.3mpm, 1.6mpm, 0.6mpm
- amp draw = 12A, 30A, 60A, 90A, 120A
- layer of cable = 1, 2, 3, 4, 5
- pull per layer = 900kg, 740kg, 620kg, 540kg, 470kg
- cap per layer = 2m, 4.3m, 7.2m, 10.6m, 15m
- mounting dimensions heart to heart = 125 x 75mm

(not suitable to pull up cars, for this we advise a minimum of 8000lbs / 3600kg)

Elektro Seilwinde

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 24V single line
- rated pull = 4000lbs (1800kg)
- gear reduction ratio = 198:1
- Serie-wound motor = 24V 1.6HP
- drum size = 50x76,5mm
- cable length = 10m
- cable diameter = 6mm
- line pull = 0kg, 454kg, 907kg, 1800kg
- line speed = 4.9mpm, 3.2mpm, 2.8mpm, 1.5mpm
- amp draw = 17A, 70A, 105A, 180A
- layer of cable = 1, 2, 3, 4
- pull per layer = 1800kg, 1460kg, 1225kg, 1055kg
- cap per layer = 2m, 4.3m, 7.2m, 10m
- mounting dimensions heart to heart = 125 x 75mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 24V single line
- rated pull = 8000lbs (3600kg)
- gear reduction ratio = 218:1
- Serie-wound motor = 24V 5.5HP
- drum size = 63.5x224mm
- cable length = 28m
- cable diameter = 7.8mm
- line pull = 0kg, 907kg, 1814kg, 2722kg, 3600kg
- line speed = 7.8mpm, 4.88mpm, 3.63mpm, 2.98mpm, 2.44mpm
- amp draw = 80A, 130A, 180A, 230A, 290A
- layer of cable = 1, 2, 3, 4
- pull per layer = 3600kg, 3012kg, 2540kg, 2177kg
- cap per layer = 6m, 13.2m, 22m, 28m
- mounting dimensions heart to heart = 255 x 115mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specification:
- rated line pull = 12000Lbs / 5443Kgs
- motor: series wound = 24V: input: 5.4Kw/7.2HP output: 2.7Kw/3.6HP
- gear reduction ratio = 230:1
- cable (dia. x L) = 10.2mm x 25.5mm
- drum size (dia. x L) = 63mm x 226mm
- mounting dimensions heart to heart = 255 x 115mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:

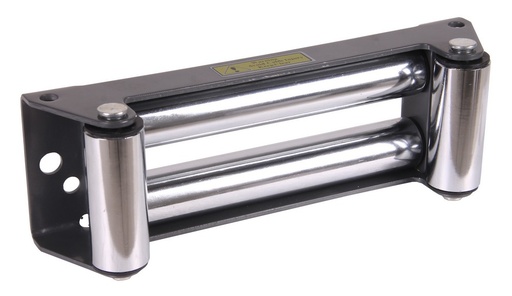

- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 24V single line
- rated pull = 15000lbs (6804kg)
- gear reduction ratio = 262:1
- Serie-wound motor = 24V 6.8HP
- drum size = 76x224mm
- cable length = 25m
- cable diameter = 11mm
- line pull = 0kg, 907kg, 1814kg, 3629kg, 6804kg
- line speed = 6mpm, 3.1mpm, 2.6mpm, 2.4mpm, 1.2mpm
- amp draw = 70A, 150A, 200A, 250A, 420A
- layer of cable = 1, 2, 3, 4
- pull per layer = 6804kg, 5806kg, 4990kg, 4445kg
- cap per layer = 4.6m, 10.7m, 18.2m, 28m
- mounting dimensions heart to heart = 255 x 115mm

Motorwinde / Seilhebezug

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- mounting plate, ensures correct mounting of the winch.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.
- mounting dimensions heart to heart = 125 x 75mm

Wireless remote optional.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specification:
- rated pull = 900Kg / 2000lbs
- reduction ratio = 153:1
- voltage = 24V

(not suitable to pull up cars, for this we advise a minimum of 8000lbs / 3600kg)

electric bicycle lift / bike lift / motorized storage lift
Electric bicycle lifts from the Torso brand have a number of advantages over other models on the market. It has an electric motor that lifts the bicycle for you with a remote control, and can generally also lift heavier loads. Maximum load capacity is higher with an electric bicycle lift than with non-electric bicycle lifts. With a small weight, approximately 11 kg the motorized storage lift has a maximum draw weight of 100 kg. Comes with mounting material to attach the lift to the ceiling and has a built-in emergency stop.

Electric bicycle lifts are still the most ergonomic solution. The bike lift ensures that you can store your bike compactly. You elevate the bike high enough, the model has a maximum mounting height of 3 meters this should certainly suffice for most garages, sheds and workshops, and therefore you have enough space, for example, to park your car.

The rubber mounting hooks provide protection against scratches. The lifting straps are made of high-quality nylon and the frame is made of steel.

By using this lift you can easily elevate bicycles and similar vehicles for maintenance, storage or repair.

Except bicycles, this mini winch is ideally allowed to quickly lift many more objects like e-bikes, rooftop tents, roof boxes, ladders, kayaks and much more things, without taking up much space.

The device is supplied including the necessary mounting material: the central part consists of various straps attached to it for a secure bike suspension. Due to the strong lifting strap, your bike wont twist when suspende. Bike lift hoist is equipped with a wired remote control including an electrical emergency stop for both tape entry and exit.
The product is produced according to European guidelines.
Specifications:

• Lifting capacity: 100 kg
• Voltage: 230 V / 50 HZ
• Current: 2.0 A
• Input power: 450W
• Insulating grade: B
• Protection grade: IP54
• Lifting height: 3m
• Lifting speed: 8m/min
• Work rate: S3 - 25% - 10min
• Group of mechanisms: M1
• Remote control cable length: 3 meters
• Type of lifting equipment: band
• Material strap: Nylon
• Hook material: stainless steel 10mm, rubber transparent
• Weight: approx. 11 kg
• Winch dimensions (width x depth x high): 296.5 x 1122 x 172 mm


Fernbedienung Drahtlos

Suitable for the electric winches CW02V12, CW04V12, CW08V12 and CW12V12.

• built-in

• 12V

• range = 15m

Fernbedienung Drahtlos

Suitable for the electric winches CW02V24, CW04V24, CW08V24 and CW12V24.

• built-in

• 24V

• range = 15m

Fernbedienung Drahtlos

Suitable for electric winch CW15V12.

• built-in

• 12V

• range = 15m

Fernbedienung Drahtlos

Suitable for electric winch CW15V24.

• built-in

• 24V

• range = 15m

Feuerwehr Axt

- with fiberglass handle
