Umlenkrolle Seilwinde

Dieser Torso Umlenkrolle eignet sich zum Verdoppeln des Kabels einer Winde. Dies ermöglicht es, beim Winden doppelt so viel Kraft zu realisieren.

Dieser Block ist auch mit einem Nippel zur Schmierung versehen.

Technische Spezifikationen:

• Kapazität = 3600kg / 8000lbs

• Außengröße der Riemenscheibe = 98mm

• Innengröße der Riemenscheibe = 84mm

• Kabeldurchmesser = 14mm

• Lochdurchmesser = 53mm

Anchor

- galvanised

- weight = 20kg

Haken für Winde

- total length = 130mm
- thickness pin = 7mm
- capacity = 9 ton

Not for lifting!

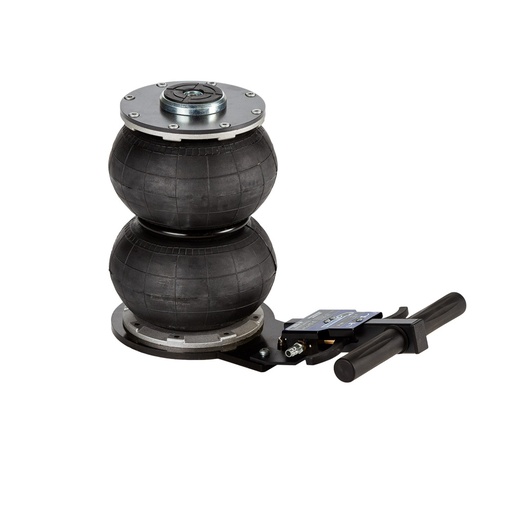

 This series of Mammuth air bellow jacks are increasingly being used instead of the standard pneumatic jack. The air bellow jack lifts faster, is more manageable and is easy to store upright.

Thanks to its sophisticated design, this pneumatic balloon jack has te following useful features:

• 2 sturdy bellows with a wall thickness of 7 - 7,5mm

• weighs only 15kg, but is still very solid

• safety overload valve

• guide ring in cylinder for smooth working and durability

• ergonomic automatic switch, ensures safe and easy operation

• space saving

• ideal for the workplace, but also on the road

Specifications:

• capacity = 2T

• minimum lifting height = 115mm

• maximum lifting height without adapter = 345mm

• maximum lifting height with adapter = 425mm

• lifting height = 230mm

• adapter = 80mm

• working pressure = 7 - 10 bar

Haken für Winde

- total length = 114mm
- thickness pin = 6mm

Not for lifting!

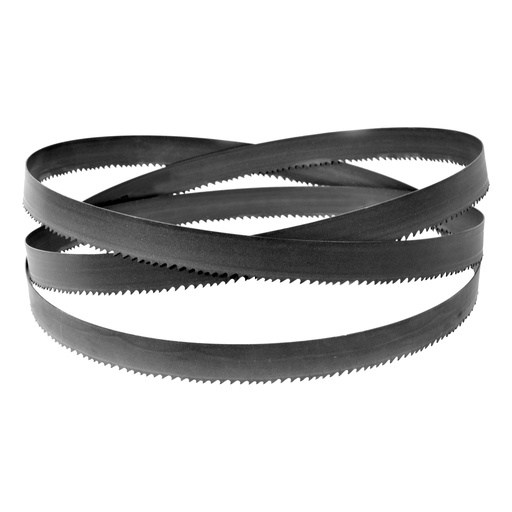

bandsaw
This bimetallic band saw from Cowley consists of an alloyed refined steel strip on which a strip of high-alloy HSS cobalt-molybdenum steel is welded by using electrodes.
Here, the teeth are machined, after which the saw is hardened to 67 - 69 HRC.
The band saw is used in ferrous and non-ferrous materials, each bimetal quality has its own specific application.
M42 bimetal band saw:
Due to the high hardness of the edges, 67 - 69 HRC, longer service life can be achieved and higher cutting speeds can be used. Among others used for stainless steel and materials with a tensile strength up to 1400 N /mm².
Technical specifications:

• Width x thickness = 27 x 0.9mm
• 5/8 M42

Handgewindebohrer Satz

HSS geschliffen Handgewindebohrer werden aus legiertem Schnellarbeitsstahl hergestellt. Vollschliff während des Produktionsprozesses führt zu einem sehr scharfen Gewindebohrer mit hoher Präzision. In Kombination mit Schneidöl führt dies zu einer sehr hohen Standzeit. Sehr gut geeignet zum Gewindebohren von Innengewinden in unlegierten Stählen wie Stahlblech, Baustahl und Gusseisen.

Technische Daten:

• Größe = M14

• Steigung = 2,00mm

• Länge = 80mm

• Drahtlänge = 30mm

• DIN 352

• Material = HSS - G

• Schnittwinkel = Flach

• rechte Hand

• vollständig geschliffen

• 3 Stück

Kontaktspitze für Aluminium

Geeignet für die MIG MAG Brenner MLT24 und MLT36.

• Schraubengewinde = M6

• Drahtstärke = 0,8mm

• Länge = 28mm

• 50 Stück

Düsenstock Plasmabrenner

Geeignet für den Plasmabrenner PL80.

• 80 - 100A

• 10 Stück

LED-Lichtleiste / LED-Leuchte / LED-Lampe

Universelle LED-Lampe mit eingebautem 230-V-Netzteil. Diese klare energieeffiziente LED-Beleuchtung ist ideal für die Beleuchtung in und um die Werkstatt. Die Leuchte wird mit einem Kupplungsstück zum Anschluss einer weiteren LED-Leuchte dieser Serie und Befestigungsmaterial zur Montage überall dort geliefert, wo Licht benötigt wird, einschließlich der Module aus der Expert-Serie. Die LED-Lichtleiste ist mit anderen Modulen aus der Expert-Serie kombinierbar und Bestandteil folgender Module:

• BGMODD, BGMODI, BGMODJ


Optionale Rolle

Suitable for profile and pipe nothcer BSM100MF.

- 20mm

Kontaktspitze für Aluminium

Geeignet für die MIG MAG Brenner MLT15.

• Schraubengewinde = M6

• Drahtstärke = 0,8mm

• Länge = 25mm

• 50 Stück

Stromdüse Plasmabrenner

Geeignet für den Plasmabrenner PL141.

• Größe = 1.7mm

• 80 - 100A

• 10 Stück

Tool cabinet / workshop cabinet

This low model wall cabinet consists of two doors that can be closed with a cylinder lock, the inside has a height-adjustable shelf. The wall cabinet can be combined with other modules from the Expert series and is part of the following modules:

• BGMODF


Konus Satz

- suited for big rims (Iveco)
- inside ring diameter = 140mm

- for machines with 36mm axle

- 2 pieces

HSS Kernbohrer

High-quality HSS core drill for magnetic drilling machines.

Characteristics:

• HSS (high speed steel)

• M35: comparable to M2 standard high speed steel, but with 5% cobalt added. M35 cuts faster and lasts longer than M2.

Specifications:

• diameter = 50mm

• cutting depth = 30mm

Hydraulikzylinder

This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

• output = 30 Ton

• stroke = 12mm

• effective area = 31,1cm^2

• oil capacity = 0.05 L

• height of product = 63mm

• extended height = 75mm

• outside diameter = 115x95mm

• bore diameter = 75mm

• plunger diameter = 63mm

• thread for oil input = 3/8''-19

• saddle protusion form Plgr = 2mm

• max. pressure = 700bar



Hydraulikzylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 5 ton
- stroke = 150mm
- effective area = 9,6cm^2
- oil capacity = 0,108 L
- height of product = 233mm
- extended height = 382mm
- outside diameter = 40mm
- bore diameter = 30mm
- plunger diameter = 25mm
- thread for input oil port (ZG) = 1/4" - 18
- saddle protrusion form plgr = 13mm
- saddle is removable
- max. pressure = 700bar

Fernbedienung Drahtlos

Suitable for electric winch CW15V24.

• built-in

• 24V

• range = 15m
