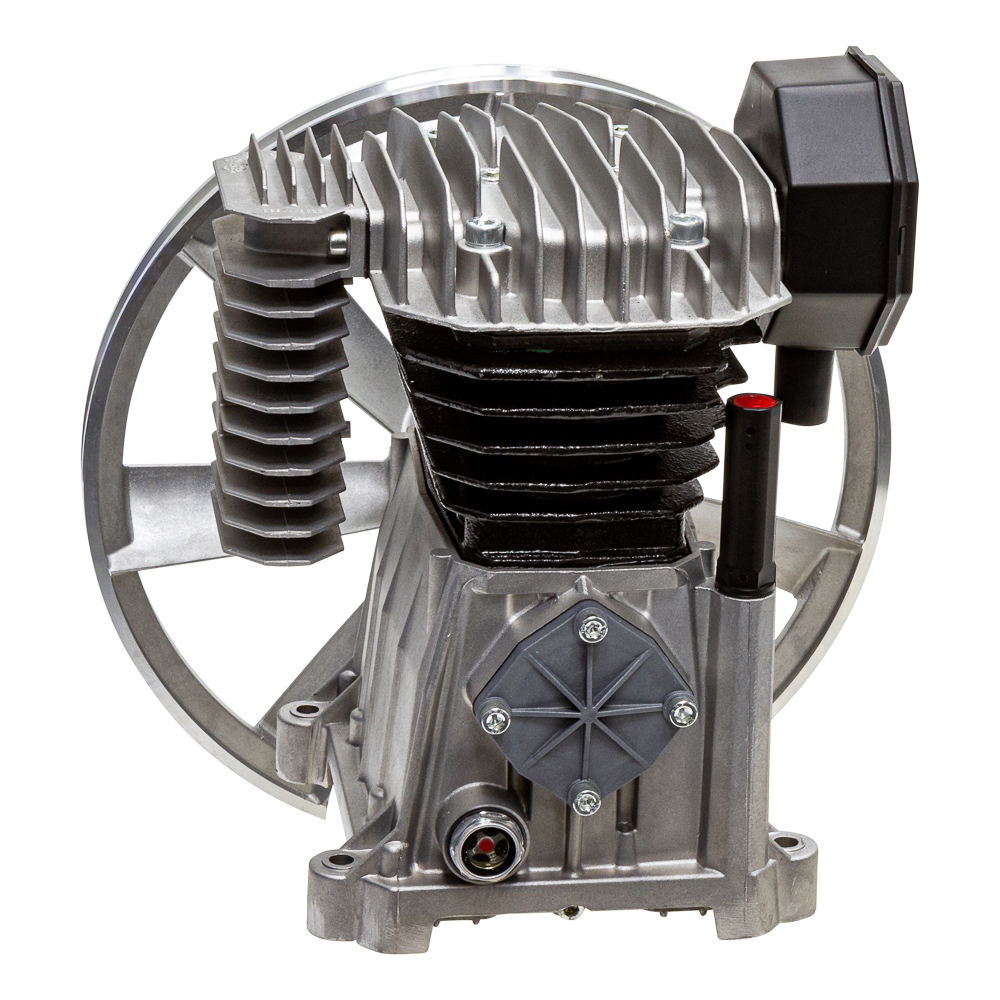

Kompressor Pumpe
Zion-Air compressor pumps are of high quality.
Air filter / gasket and valve kit are available from stock.
Pump is supplied with a pulley.
- pump for CP22A10 / CP22A103 compressor
- number of cylinders = 2
- pump construction = line
- air pressure = 10bar
- air flow = 320 L/min
- speed = 1350rpm
- pulley diameter = 332mm
- center to center left to right = 160mm
- center to center front to back = 130mm
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 330 mm |
| Produkt Breite | 260 mm |
| Produkt Höhe | 290 mm |
| Produktgewicht | 9,5 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 360 mm |
| Breite des Pakets | 280 mm |
| Paket Höhe | 390 mm |
| Gewicht des Pakets | 11,00 Kg |
