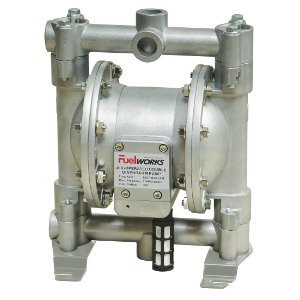

Membranpumpe /Diaphragm Pump
features an externally servicable air distribution system and all bolted construction.Include ground capability to eliminate static discharge
- material = Aluminium
- max. flow rate = 16GPM / 60 LPM
- max. suction height = 6,5FT / 2M
- max. pressure = 8bar
- inlet / outlet = 3/4"
- air inlet = 1/4''
- fluid = biodiesel and water
Produkt Abmessungen:
| Length | 240 mm |
|---|---|
| Width | 190 mm |
| Height | 285 mm |
| Weight | 7,3 kg |
Abmessungen der Verpackung:
| Length | 335 mm |
|---|---|
| Width | 315 mm |
| Height | 205 mm |
| Weight | 7,90 kg |
