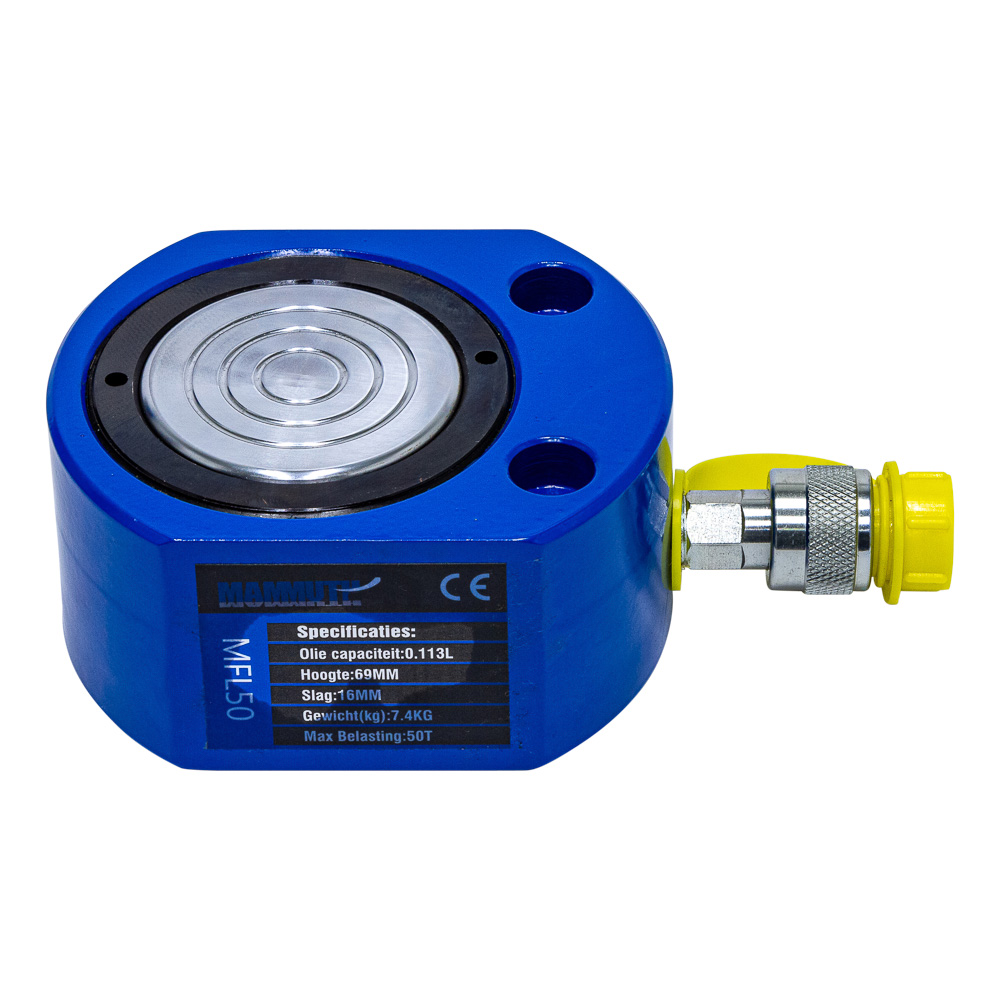

Platte Zylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 50 Ton
stroke = 16mm
effective area = 56,7cm^2
oil capacity = 0.113 L
height of product = 69mm
extended height = 85mm
outside diameter = 138x115mm
bore diameter = 95mm
plunger diameter = 85mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Produkt Abmessungen:
| Length | 215 mm |
|---|---|
| Width | 120 mm |
| Height | 70 mm |
| Weight | 7,0 kg |
Abmessungen der Verpackung:
| Length | 255 mm |
|---|---|
| Width | 155 mm |
| Height | 110 mm |
| Weight | 8,00 kg |
