Back in stockOne of our goals is to have everything directly available from our stock, however sometimes a product might be temporarily sold out. On this page, you can find all items, which are back in our stock.
One of our goals is to have everything directly available from our stock, however sometimes a product might be temporarily sold out. On this page, you can find all items, which are back in our stock.
Four pole lift / alignment lift / four column lift / service lift / car lift / runway lift
Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.
The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.With a very low minimum ramp height and a maximum lifting height of 2000mm, these lifts are very versatile and suitable for cars, buses and 4x4 vehicles.The lifts are equipped with a safety indicator and have both a mechanical and a pneumatic protection.
Furthermore, the Cascos four pole lifts have a number of very thoughtful features:
Double T-profiles: Runways reinforced with double T-welded steel beams. These are virtually impossible to deform, withstand the load better over time and ensure that the runway is perfectly flat, ideal for very precise work.
Extra safety: Cascos gives priority to safety above all and has developed a double safety system for all columns, namely:Mechanical safety: by means of a safety bar.Pneumatic safety: by means of safety ladders.
Leveling alarm: Cascos lifts have an indicator light that warns if the runways are poorly leveled and ensures that the cylinder works in perfect conditions, which ensures a longer service life.
Hydraulic cylinders: One by one produced and tested in the factory.
Convenience and efficiency:Manual lowering valves to lower the lift in event of a power failure or malfunction.Adjustable lifting timer that can speed up the lowering, depending on the load volume.
Thermal protection: Electric motors have thermal protection against overheating.
For Cascos four post lifts, less installation space is required and a larger working surface is available, which makes the lift unique in its kind.
This alignment model four column lift has a capacity of 4 tons and has the following features:
Long alignment runways of 4,8 meters long and 630mm wide.
A drive width / distance between the columns of no less than 3 meters. This makes the lift very suitable for alignment and ensures an ideal working space at the vehicle.
Wide runways of 630mm, suitable for working with wider tires.
With a minimum ramp height of only 180mm, this lift is the lowest alignment lift on the market. Due to the low ramp height the ramps are shorter, making the lift suitable for low vehicles, such as sports cars.
Specifications:
capacity = 4000kg
voltage = 230-400V / 3 phase
motor power = 3kW
minimum drive height = 180mm
maximum lifting height = 2000mm
length of the runways = 4800mm
width of the runways = 630mm
distance between the runways = 740 - 990mm
drive width / distance between the columns = 3000mm
height of the columns = 2410mm
lifting time = 40 seconds
electro-hydraulic
Note: The price for this lift does not include the delivery and placement of the lift. Extended guarantees only apply in combination with a Spoods installation / mainenance contract. For more information, contact one of our employees.The presence of a forklift truck is necessary to unload the lift!
Anchor
- galvanised
- weight = 20kg
Tyre lube black 5L
Oil drain pan with spout This oil drain pan is suitable for the draining of oil and other liquids at various activities. Because the edge of the pan is folded inwards, the oil does not go over the edge when the pan is emptied. The volume of the pan is 4 gallon (15 liters).
Winch hook with latch - total length = 100mm - thickness pin = 9,5mm Not for lifting!
Winch hook with latch - total length = 130mm - thickness pin = 7mm - capacity = 9 ton Not for lifting!
Draw stud
size thread =
suitable for the round punches = 16mm / 20mm / 22mm / 22,5mm / 25mm / 26,2mm / 27,5mm
Sanding paper 6'' P320 velcro with holes 5pcs

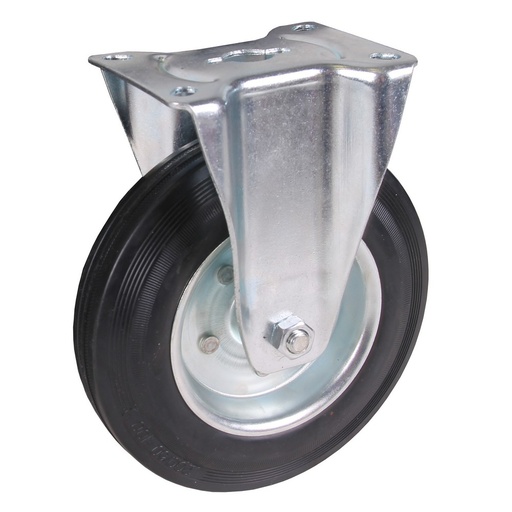

Fixed caster
wheel size = 260 x 82mm
capacity = 110kg
plate size = 100 x 115mm
total height = 300mm
bolt holes core to core = 85 x 72mm
dimensions bolt hole = 18 x 10mm
material = massive rubber
Pallet truck 1000kg 115cm extra low
This Pallet truck from Mammuth has an extra low minimum lifting height of only 35mm wich makes this pallet truck ideal for stone pallets and other applications where clearance is limited. Meanwhile, the maximum lifting height of 100mm and 1150 mm fork length ensure that you can move your load from one place to another with ease.
With tandem front rollers, this pallet truck is easy to maneuver and can handle turns and corners with ease. The steel hydraulic pump and polyurethane wheels ensure that this pallet truck is both durable and easy to use.
Garage press / bearing press / frame press
This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.The work bed is easy to adjust in height using the winch and handle. The cylinder can also be slid from left to right using the same handle.
The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.
Please note: the press is supplied without CH22 hydraulic oil (29 liters).
capacity = 100 ton
cylinder stroke = 300mm
bed width = 800mm
bed depth = 342mm
working range = 945mm
power = 1,5kW
voltage = 400V
speed = 1400rpm
outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec
incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec
Packed in 2 boxes:115 x 42 x 216cm 735kg52,5 x 36,5 x 79cm 85kg
air conditioning service machine / diagnosis station / service unit / air conditioning filling station / automotive air conditioner service station
Compact, economic, and modern model ACVA500HFO from Ecotechnics is a solid and very user-friendly air conditioning filling station which is suitable for HFO refrigerants.The operation of the service unit allows you to completely avoid the typical "emissions" (dispersion) of refrigerant gas into the environment, which is released at the end of a normal refueling of the car's cooling system, when the charging hoses are removed from this system.The machine recovers almost 100% of the refrigerant and checks the air conditioning system for leaks. Diagnosis station equipment automatic leak testing system: check for leaks during the vacuum phase. If leaks are found, it interrupts operation and gives an alarm. Air conditioning filling station equipped with hermetic cartridges offer the advantage of eliminating contact between the humidity naturally present in ambient air and the oil or dye, which are hydroscopic substances (that is, substances that easily absorb humidity).Oil management both with standard refillable containers and with hermetic cartridges. The machine has a fully automatic mode and can be put into manual mode in cases of diagnosis, where each phase can be performed one by one.Thanks to its extremely compact size, the ACVA500 HFO is very suitable for use in mobile workshops, work buses etc.
The machine is equipped with:
Features:
Technical specifications:
Rubber pad / rubber support pad Suitable for ATH Heinl, Hofmann and Falco lifts. - dimensions = 120 x 120 x 19mm - inner diameter = 104mm
Snatch block
This Torso snatch block is suitable for doubling the cable of a winch. This makes it possible to realize twice as much force during winching.
This block is also provided with a nipple for lubrication.
capacity = 3600kg / 8000lbs
pulley external size = 98mm
pulley internal size = 84mm
cable diameter = 14mm
diameter hole = 53mm

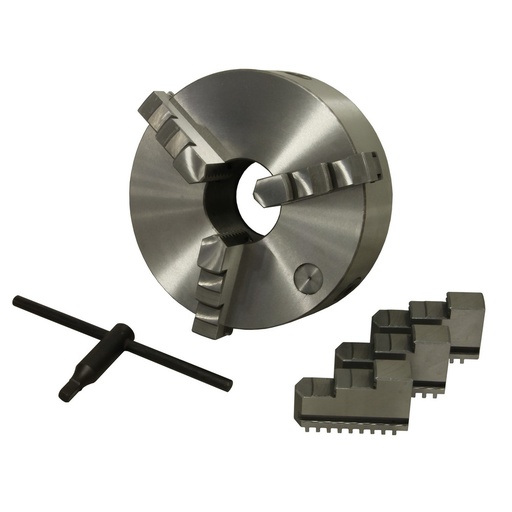

Self-centering three-jaw chuck
The metal workpiece is clamped using this chuck. The chuck is self-centering, so the claws are tightened all three at the same time. It is important that the material has a round, triangular or hexagonal profile.
diameter = 160mm
cylindrical fitting edge
comes with inside and outside set of claws
- weight = 30kg
Loading ramp / motorcycle ramp
This Torso lightweight ramp is suitable for loading motorcycles, scooters and the like on a trailer or in a bus. This makes it easy to transport vehicles. The aluminum plate is equipped with a anti-slip profile which provides extra grip.The ramp has the following features:
full aluminum design, lightweight ramp
anti-slip profile for extra grip
easy to store and transport
capacity = 500kg (1000kg per set)
length = 2m
track width = 21,5cm
material = aluminum
weight = 8,8kg/piece
Price per piece!
Solenoid 24V heavy foot double winding inside switch
Solenoid 24V flange cummins
Solenoid
