Synthetic rope Increasingly, the steel cable of winches is replaced by synthetic rope. This improves break strength, safety and ease of use. Because steel cable reaches a point where it permanently deforms, it has to be replaced sooner. With synthetic rope, this is much less the case, because the energy in the rope is converted into head and not in elasticity. - diameter = 6,5mm - length = 12m - pulling strength = 3800kg Suitable for electric winches CW05V12 and CW05V24.

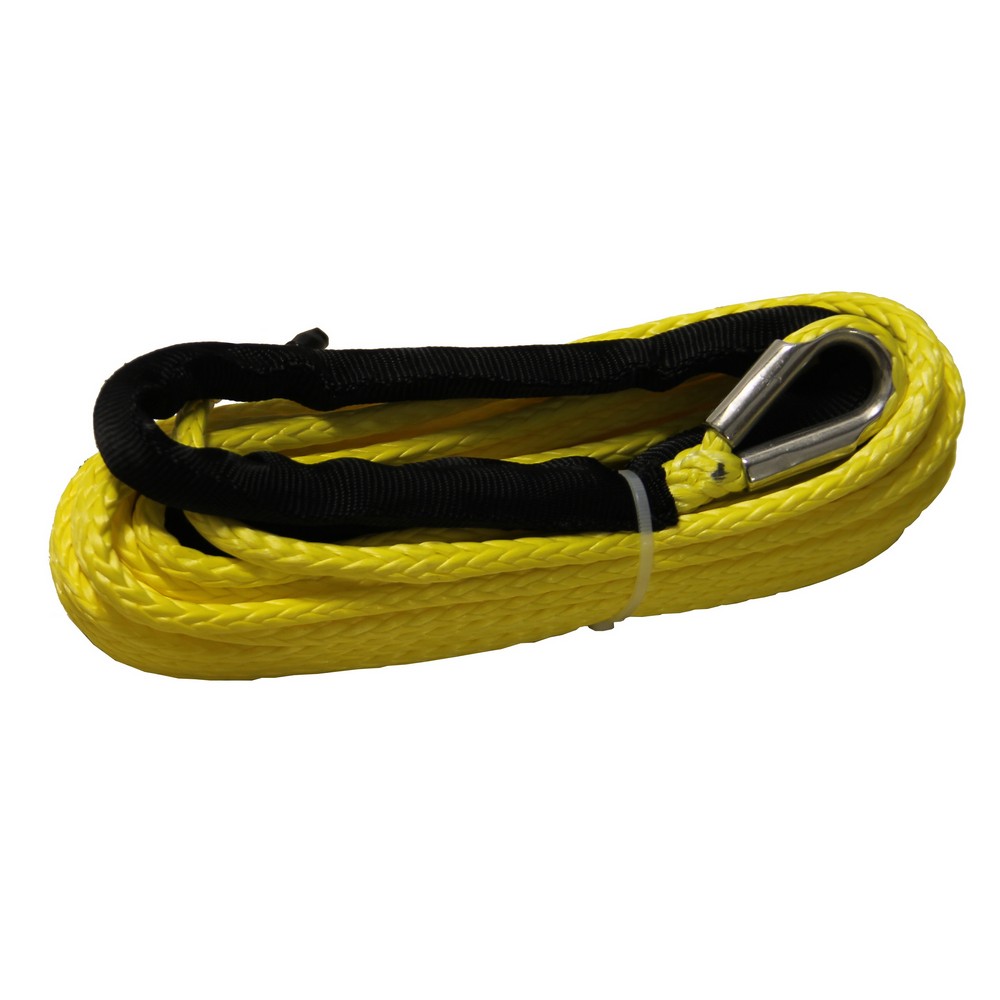

Synthetic rope Increasingly, the steel cable of winches is replaced by synthetic rope. This improves break strength, safety and ease of use. Because steel cable reaches a point where it permanently deforms, it has to be replaced sooner. With synthetic rope, this is much less the case, because the energy in the rope is converted into head and not in elasticity. - diameter = 6,3mm - length = 12m - pulling strength = 3300kg

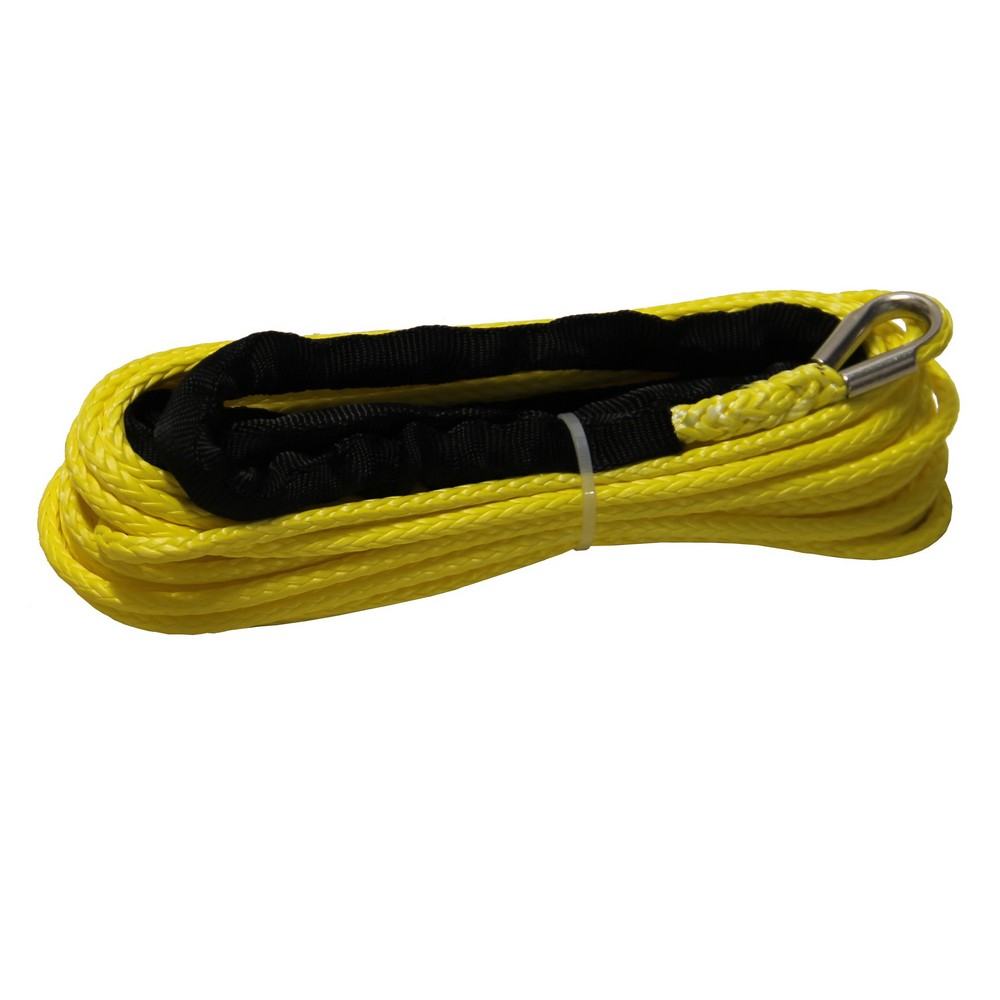

Synthetic rope Increasingly, the steel cable of winches is replaced by synthetic rope. This improves break strength, safety and ease of use. Because steel cable reaches a point where it permanently deforms, it has to be replaced sooner. With synthetic rope, this is much less the case, because the energy in the rope is converted into head and not in elasticity. - diameter = 5mm - length = 15m - pulling strength = 2200kg
Snatch block
This Torso snatch block is suitable for doubling the cable of a winch. This makes it possible to realize twice as much force during winching.
Technical specifications:
capacity = 1350kg / 3000lbs
pulley external size = 64mm
pulley internal size = 55mm
cable diameter = 10mm
diameter hole = 37mm

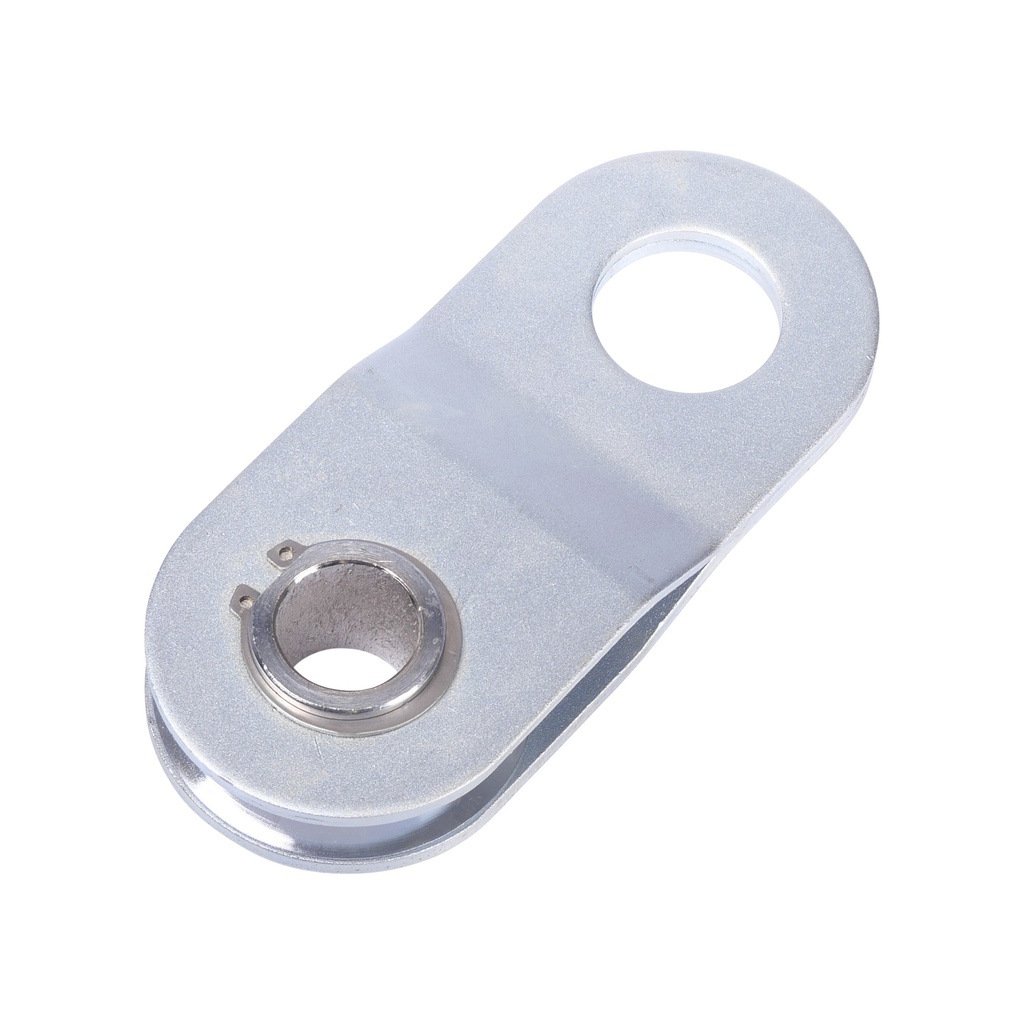

capacity = 4500kg / 10000lbs
pulley external size = 98mm
pulley internal size = 71mm
cable diameter = 18mm
diameter hole = 50mm
diameter pulley hole = 35mm
This block is also provided with a nipple for lubrication.

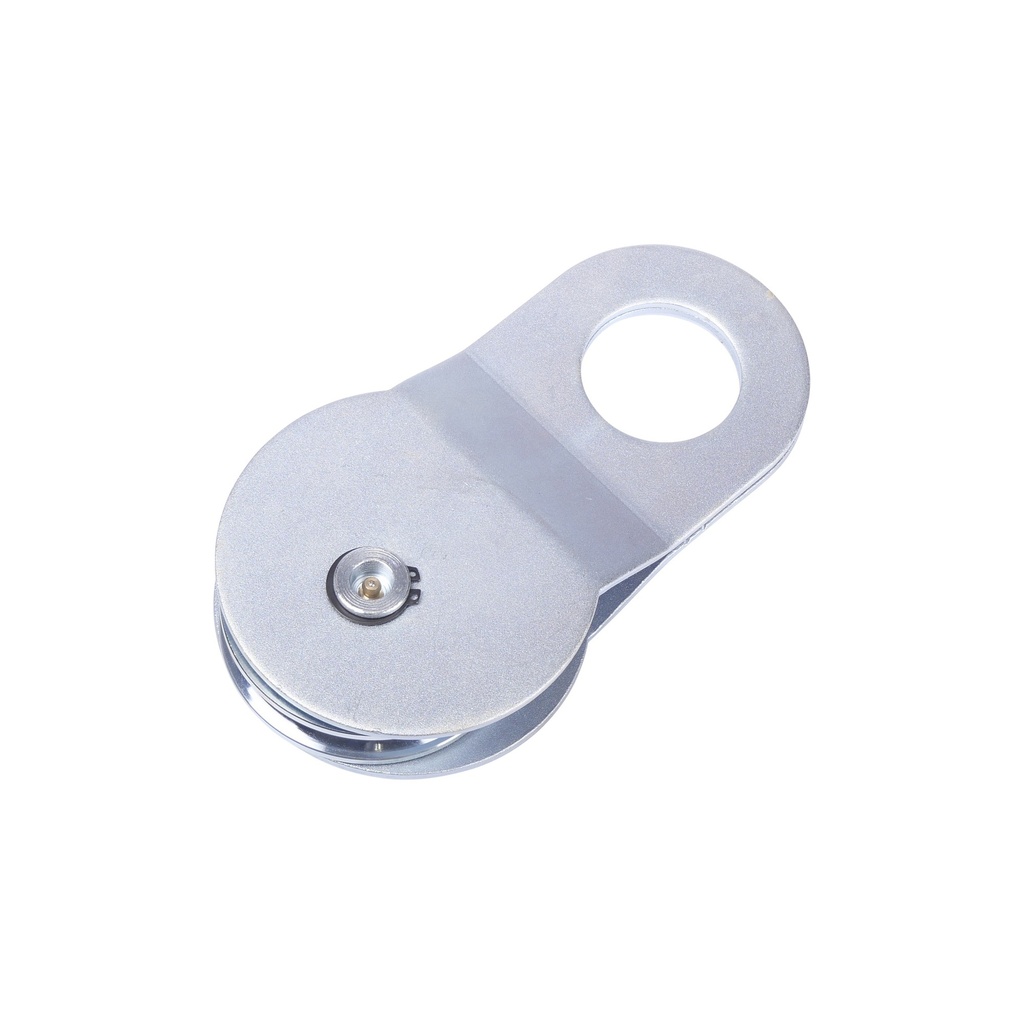

capacity = 3600kg / 8000lbs
pulley internal size = 84mm
cable diameter = 14mm
diameter hole = 53mm

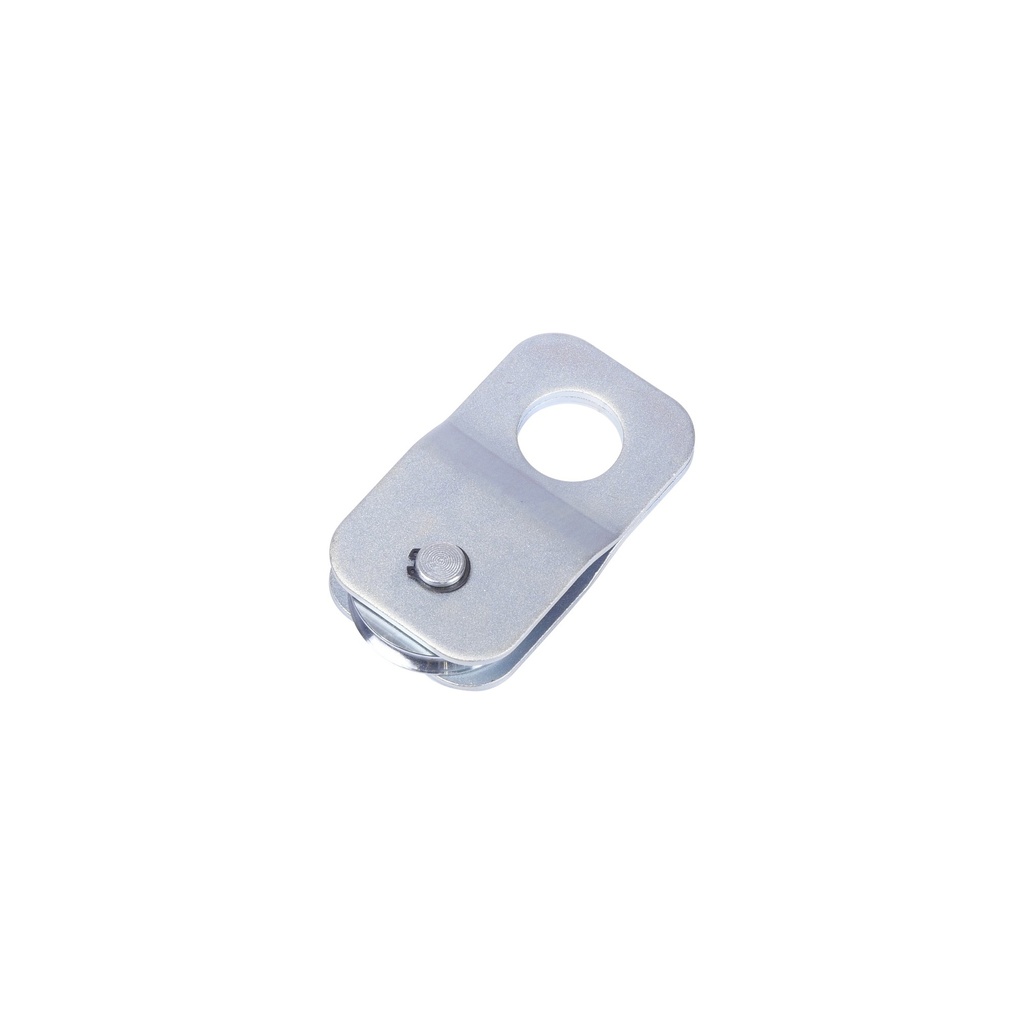

Snatch Block
- capacity = 1350kg / 3000LBS
- pulley diameter = 40mm
- cable diameter = 6mm

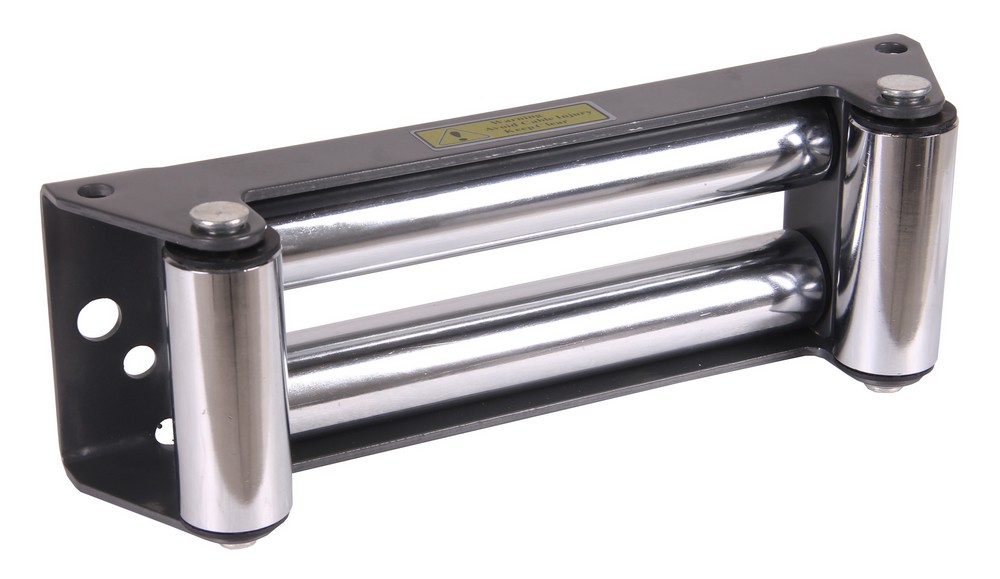

Fairlead roller - 3600kg / 8000Lbs - diameter small hole = 11mm - hart to hart small holes = 253mm - diameter large hole = 14mm - hart to hart large holes = 273mm - diameter side hole = 11mm - hart to hart side holes = 285mm

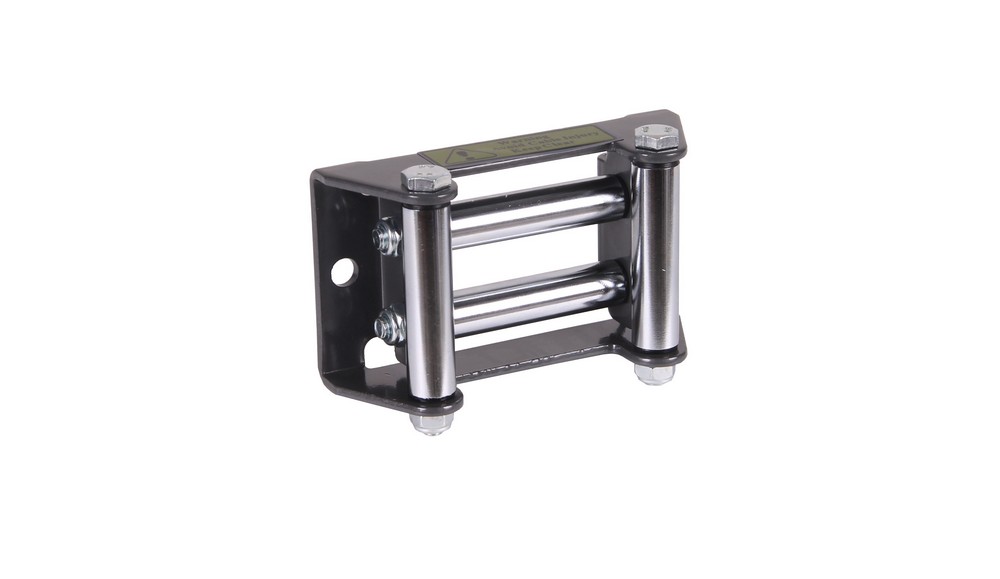

Fairlead roller - 1350kg / 3000Lbs - hole size = 67x15 - diameter hole = 9mm - hart to hart holes = 110mm

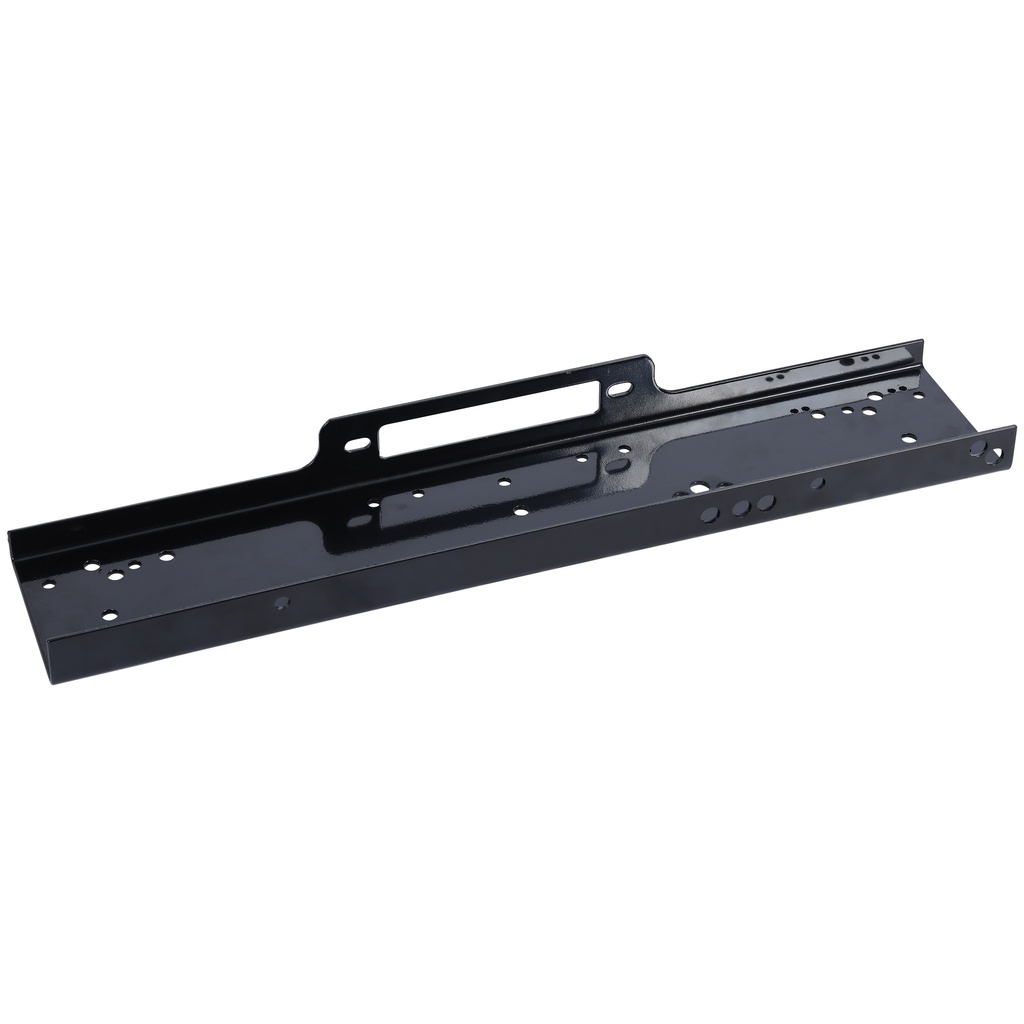

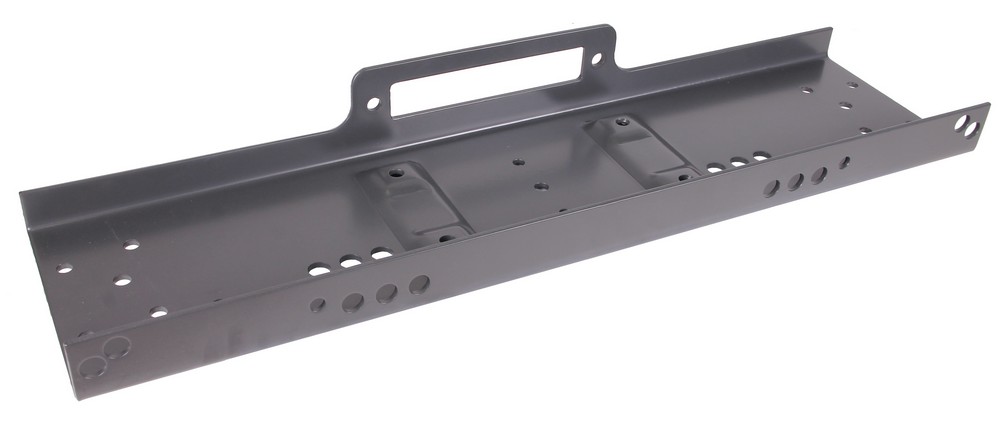

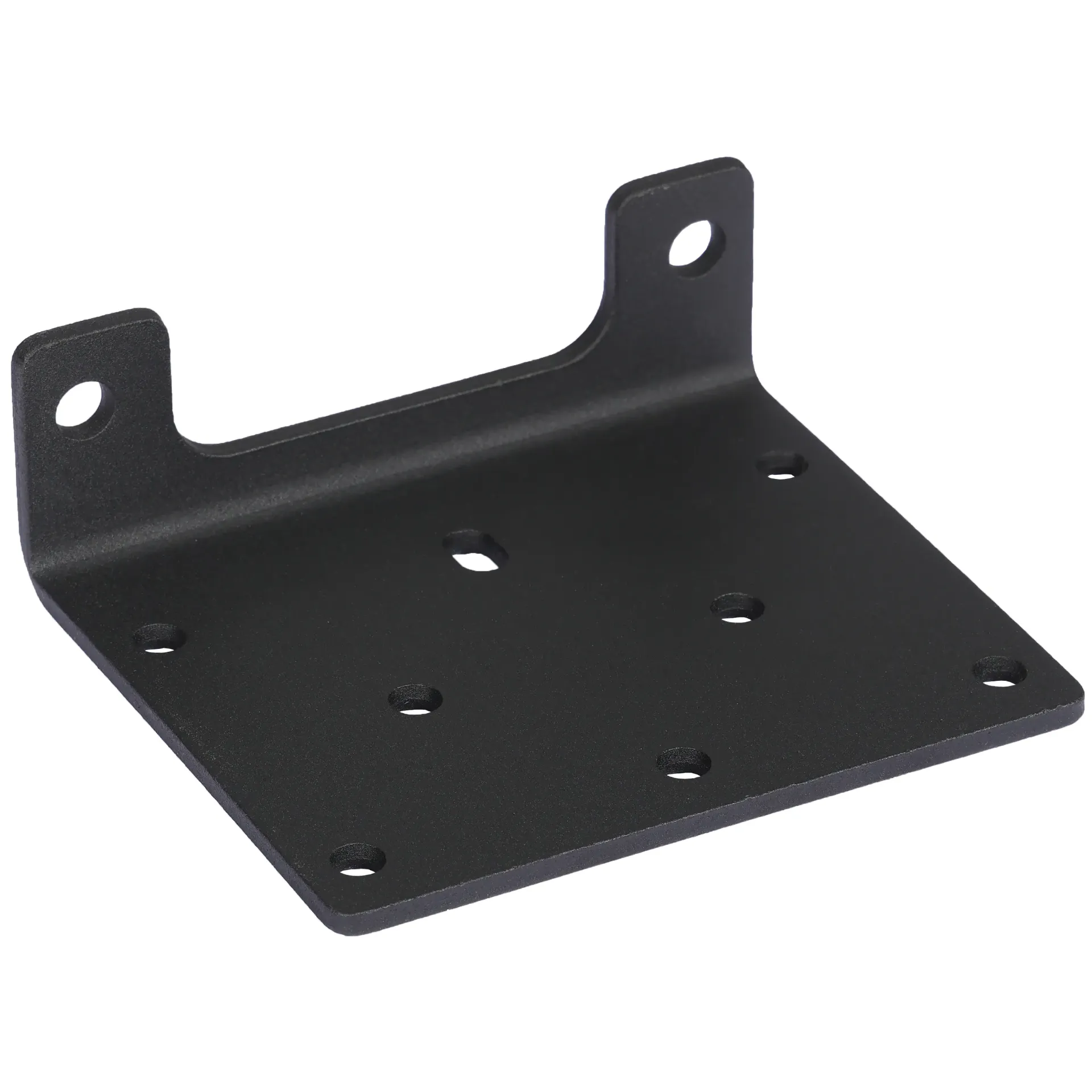

Mount plate for winch
- 6750kg / 15000lbs

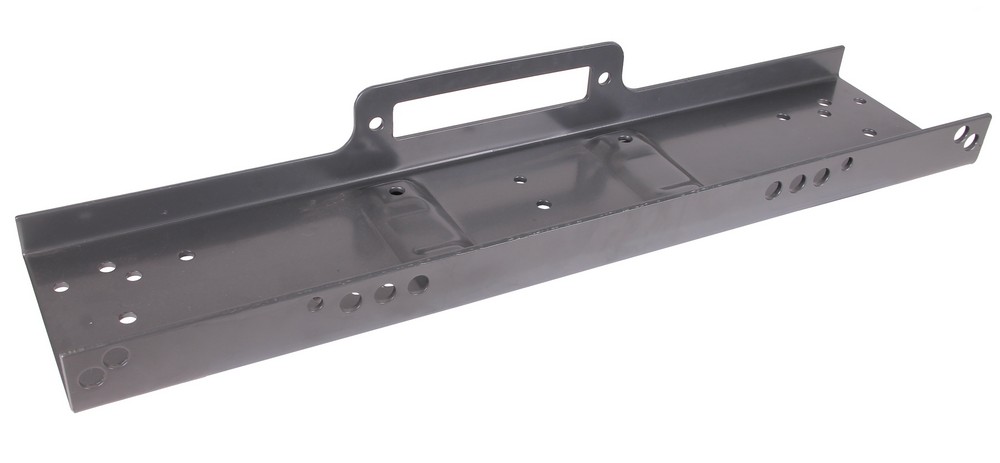

Mount plate for winch - 4500kg / 10000lbs

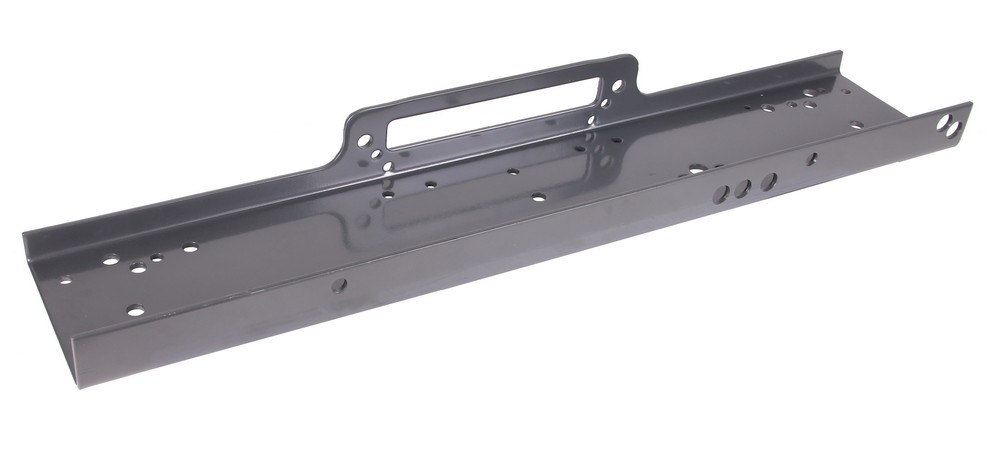

Mount plate for winch - 3600kg / 8000lbs

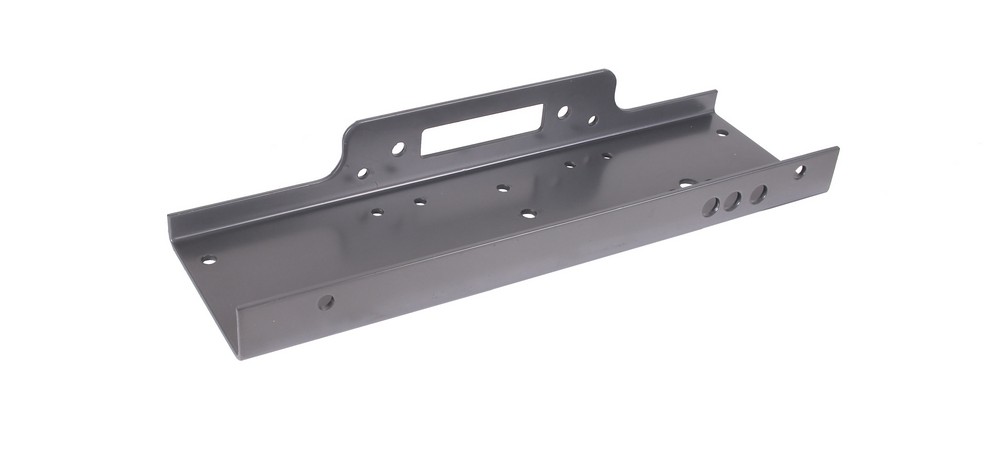

- 2250kg / 5000lbs
- 1350kg / 3000lbs

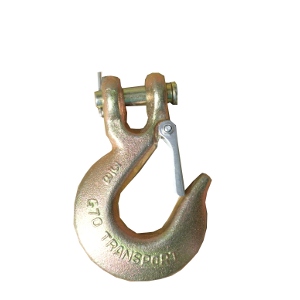

Winch hook with latch - total length = 130mm - thickness pin = 7mm - capacity = 9 ton Not for lifting!
Winch hook with latch - total length = 114mm - thickness pin = 6mm Not for lifting!
