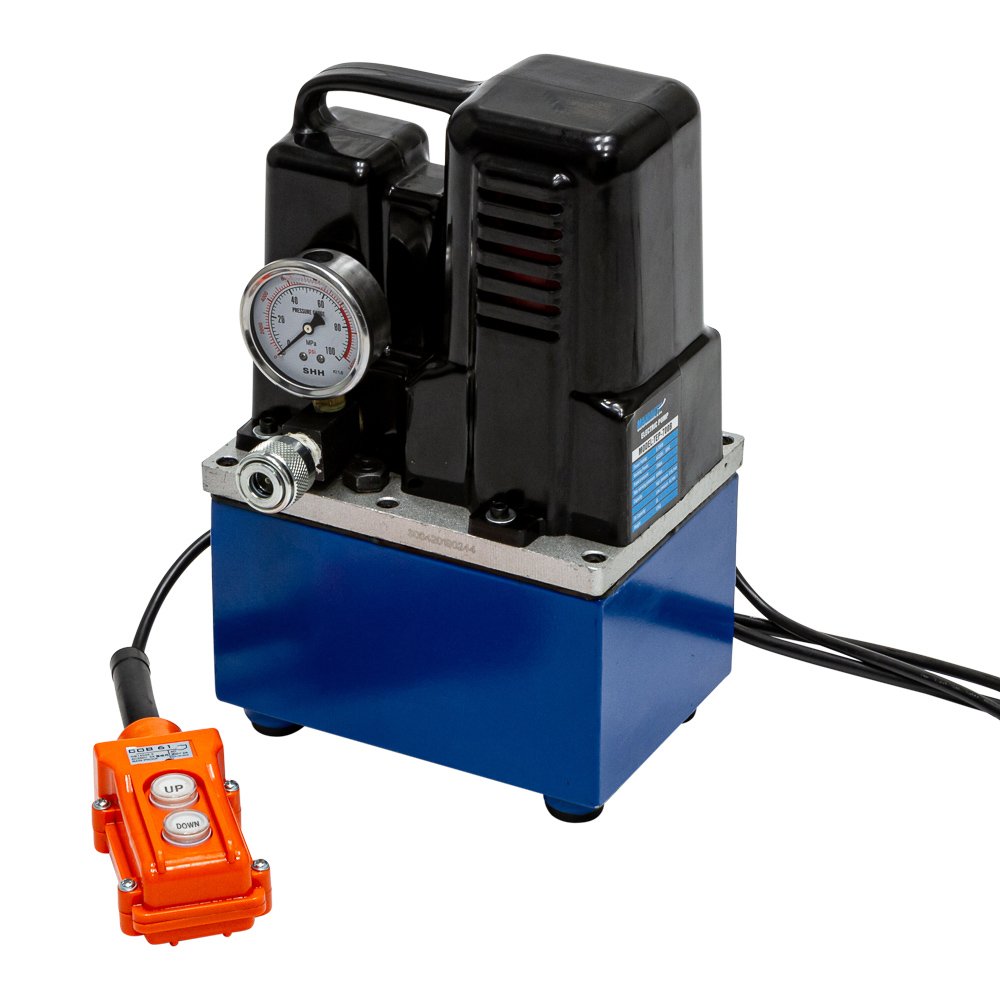

Electric hydraulic pump
Small volume pump with high-performance motor.
The speed and electric power are automatically adjusted during lifting.
Even under high pressure (32MPa), the pump starts easy.
Easy to take anywhere.
- voltage = AC220V 50Hz
- rated power = 0,75Kw
- low pressure = 2,5 Mpa / 25bar
- high pressure = 70Mpa / 700bar
- max. working pressure = 80Mpa / 800bar
- output low pressure = 1,3L/min
- output hoge druk = 0,23L/min
- oil capacity = 1,8Ltr
|Product Length||0 mm|
|Product Width||0 mm|
|Product Height||0 mm|
|Product Weight||20.0 Kg|
|Package Length||315 mm|
|Package Width||260 mm|
|Package Height||410 mm|
|Package Weight||20.50 Kg|
