Zeilzug

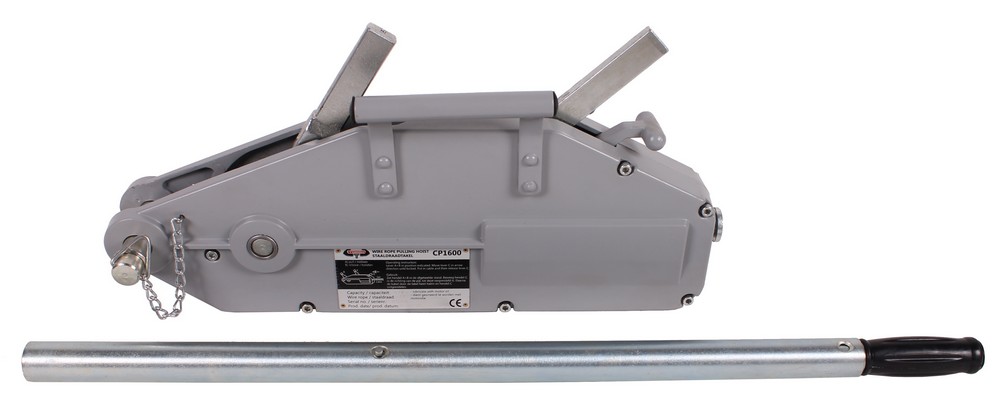

TORSO Wire rope hoists are portable, strong and can be used in any application. the design of the hoist allows for both vertical and horizontal use. To prevent overload the manual control handle is equiped with an safety break pin.
The load capacaty of the device can be increased with an scheave block/snatch block.
Specifications:
- capacity = 1600kg
- cable length = 20mtr
- cable diameter = 11mm
- stroke = 55mm
- 1 lifting stroke
- max. handforce = 41kg
- weight puller = 11,9kg
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 545 mm |
| Produkt Breite | 72 mm |
| Produkt Höhe | 280 mm |
| Produktgewicht | 27,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 810 mm |
| Breite des Pakets | 400 mm |
| Paket Höhe | 200 mm |
| Gewicht des Pakets | 28,00 Kg |
