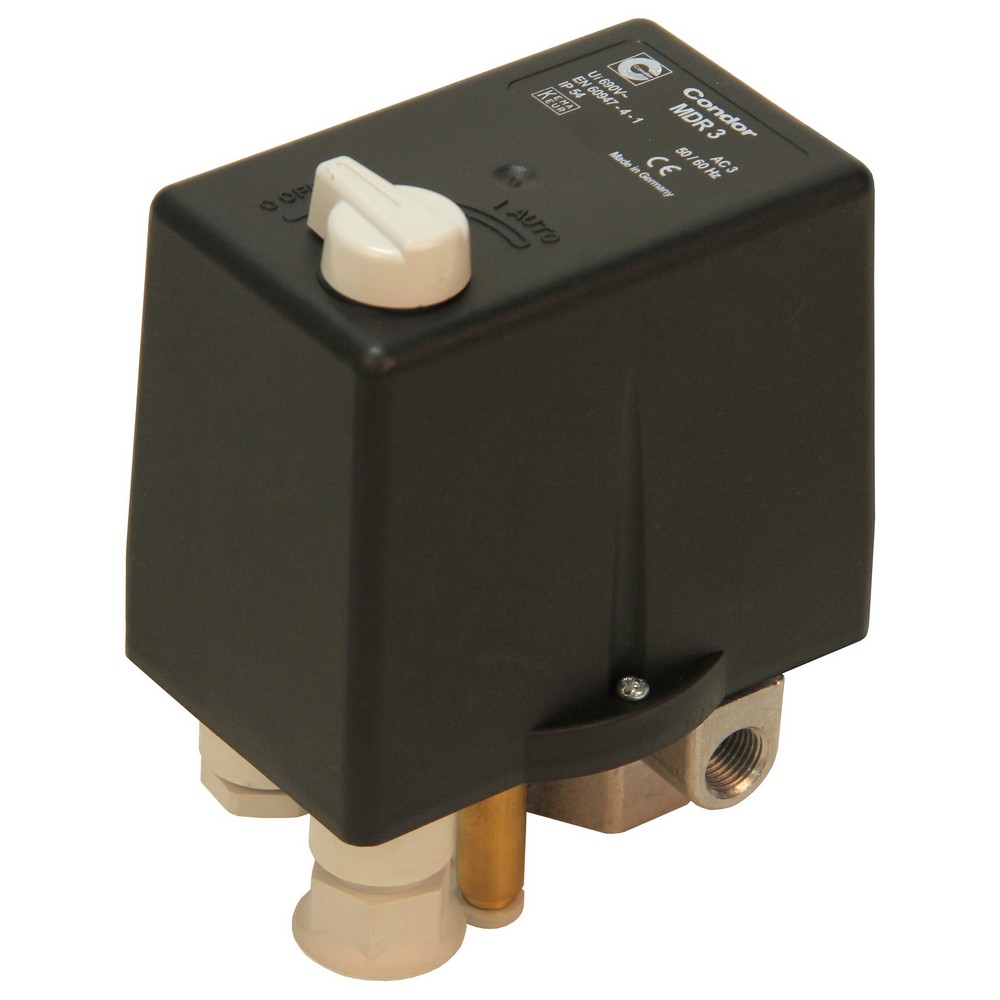

Druck Schalter
- type = Condor MDR3-11 10A
- switching capacity = 7,5 (11)kW (AC3)
- max. cut-out pressure = 35bar
- 3-phase
- 3-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 3
- flange variant, F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP54
Produkt Abmessungen:
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 0,77 kg |
Abmessungen der Verpackung:
| Length | 185 mm |
|---|---|
| Width | 110 mm |
| Height | 85 mm |
| Weight | 0,77 kg |
