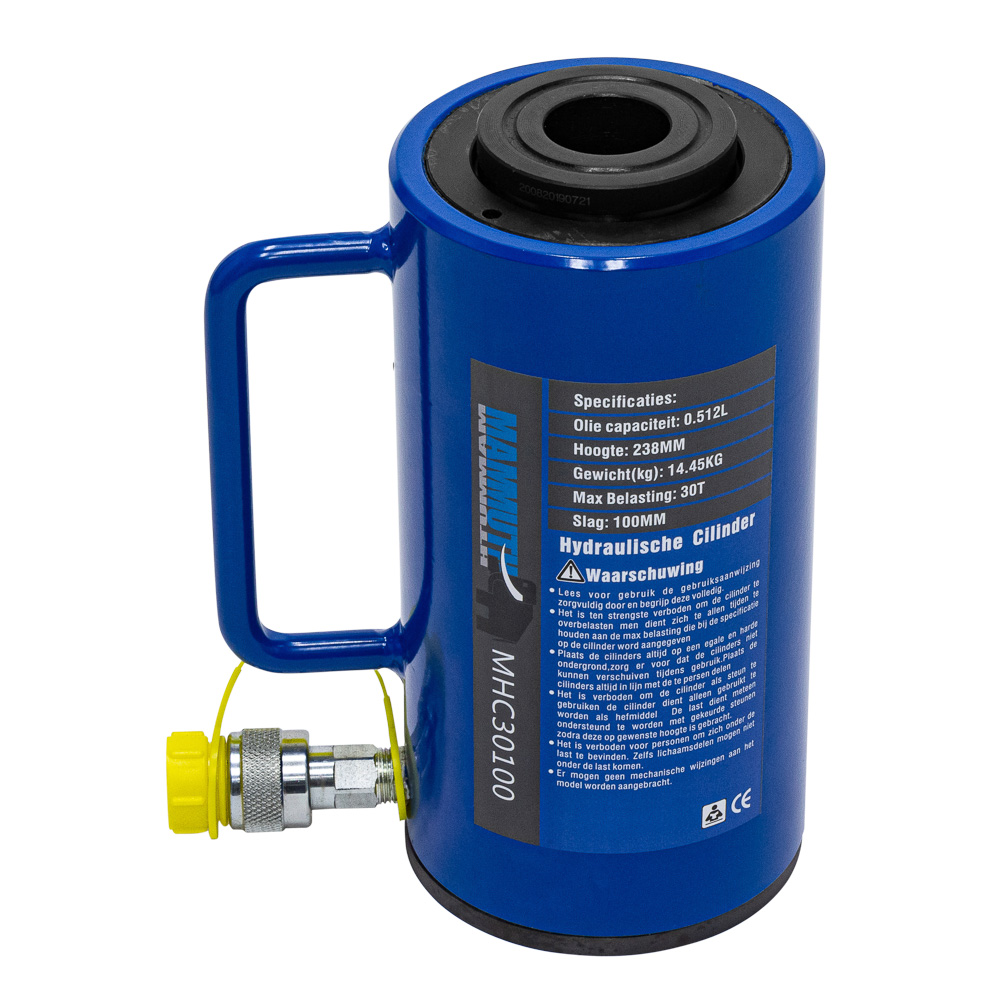

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
output = 30 ton
stroke = 100mm
effective area = 51,1cm^2
oil capacity = 0,512 L
height of product = 238mm
extended height = 288mm
outside diameter = 118mm
bore diameter = 95mm
principal axis diameter = 70mm
plunger diameter = 34mm
oil supply hole thread (Rc) = 3/8"
extended height = 9mm
| Product Dimensions: | |
|---|---|
| Product Length | 190 mm |
| Product Width | 120 mm |
| Product Height | 240 mm |
| Product Weight | 13.4 Kg |
| Package Dimensions: | |
| Package Length | 390 mm |
| Package Width | 190 mm |
| Package Height | 210 mm |
| Package Weight | 15.00 Kg |
