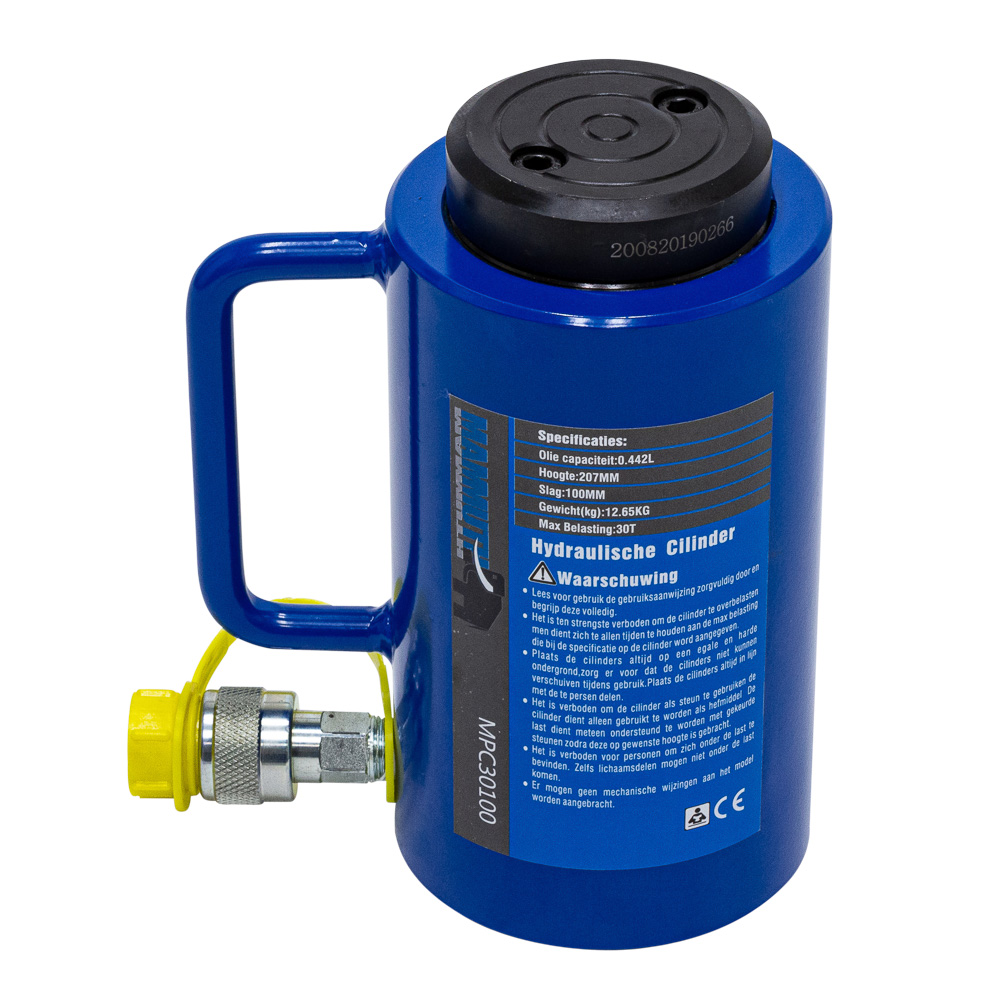

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 30 ton
stroke = 100mm
effective area = 44,2cm^2
oil capacity = 0,442 L
height of product = 209mm
extended height = 307mm
outside diameter = 107mm
bore diameter = 75mm
plunger diameter = 65mm
thread for input oil port (ZG) = 3/8" - 23
saddle protrusion form plgr = 22mm
saddle is removable
max. pressure = 700bar
Produkt Abmessungen:
| Length | 170 mm |
|---|---|
| Width | 100 mm |
| Height | 205 mm |
| Weight | 12,5 kg |
Abmessungen der Verpackung:
| Length | 390 mm |
|---|---|
| Width | 190 mm |
| Height | 210 mm |
| Weight | 14,50 kg |
