Mobile single post lift This Falco Sollevatori single post lift is of high quality and extremely suitable for professional use. The lift is thanks to its stable and solid design easy to place on a level surface and installation is not required due to the sturdy construction. Every lift comes with a set of wheels, allowing to move the lift easily and use the workplace optimally. Thanks to its unique design the lift is provided with the following standard features:
min. lift height of 90mm

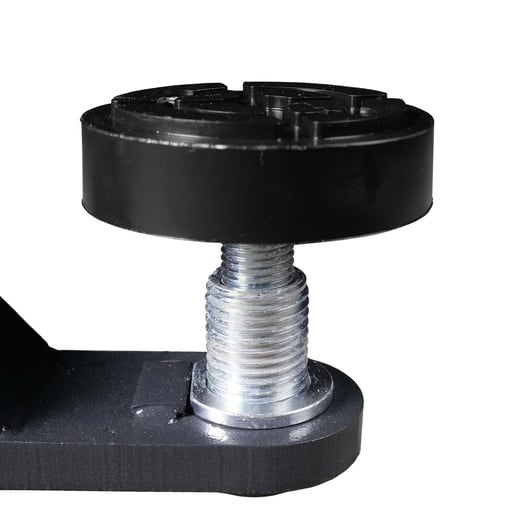

in height adjustable lifting pads with double thread
automatic arm lock
telescopic extendable lifting arms
automatic detent
protective cap on the inside of the column
transparent oil reservoir incl. oil level
robust column manufactured from rolled steel
hydraulic cylinder, no need to use a compressor / compressed air connection
foot protection
dead man's switch for lifting and lowering
shutdown when reached highest position
english instruction manual incl. maintenance protocol and CE certificate 2006/42/EG
meets the NEN-EN1493 safety standards
Technical specifications:
capacity = 2500kg
voltage = 230V
engine power = 2,2kW
voltage control unit = 24V
min. lifting height = 90mm
max. lifting height = 2040mm
lifting time from min. to max. height = <55sec
lowering time from max. to min. height = >20sec
reach rear lifting arms = 500 - 661mm
reach front lifting arms = 560 - 863mm
height of column = 2600mm
weight = 710kg
oil capacity = 10L CH32 (not included!)
fully automatic double scissor lift / scissor bridge / scissor lift / scissor liftThis Falco Sollevatori double scissor lift is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.
This alignment model is equipped with a bridge jack, turntables and long rear wheel plates. With the aid of the bridge jack, wheel-free lifting is possible up to a height of 450 mm above the roadways.
Due to the long carriageways of 4.8m, the bridge is suitable for small and large passenger cars, buses and heavier commercial vehicles.
Thanks to its robust construction and well thought-out design, this double scissor bridge is equipped with the following handy features as standard:
Fully automatic scissor lift / built-in lift
This Falco Sollevatori wheel-free double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.This built-in double scissors lift model is accessible all around and suitable for many vehicles, including extra low cars. Because of the extendable platforms, the lift is also suitable for small vans.Thanks to its robust construction and thoughtful design, the scissors lift is standard equipped with the following convenient features:
platform length = 1540mm, extendable to 1745mm
electro-hydraulic double transpump
equipped with 2 heavy hydraulic cylinders
automatic venting through vent button
automatic synchronization
automatic overload protection
pneumatic unlocking made of high-quality material
control valve for controlling the speed when dropping
limit sensor for limiting the maximum lifting height and the minimum safety height
deadman operation when lifting and lowering
foot protection including acoustic protection signal
Dutch manual including maintenance protocol and CE certificate 2006/42/EG
complies with the NEN-EN1493 safety standard
Specifications:
lifting capacity = 3000kg
max. lifting height = 2030mm
platform length = 1540 - 1745mm
width of platforms = 550mm
recommended space between platforms = 800mm
lifting time = 60 seconds
lower time = 60 seconds
electric power = 400V
oil capacity = 15L (not included!)
Fully automatic scissor lift / scissor lift
This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts. Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:
total platform length of 2030mm
master-slave hydraulic system
electro-hydraulic lift with 4 cylinders
low profile with minimum lifting height of 117mm
homologated and certified product according to EN1493:2010
max. lifting height = 1850mm
min. lifting height = 117mm
platform length = 1495 - 2030mm
lifting time = 35 seconds
fully automatic scissor lift / scissor lift / double scissor bridge / auto lift / auto lift bridge / scissor bridge This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:
Extension / front panel This extension provides a longer motorcycle lift and is suitable for the MLP100KE. In combination with the widening set, the lift is also suitable for trikes. - length panel = 550mm - width panel = 800mm
Falco hydraulic oil CH32 - capacity = 20L Especially for Falco lifts. Also suitable for all hydraulic applications with a large viscosity range accoring to: DIN 51524 part 1, 2 HLP.
Falco hydraulic oil CH46 - capacity = 20L Especially for Falco lifts. Also suitable for all hydraulic applications with a large viscosity range accoring to: DIN 51524 part 1, 2 3, HVLP.
Falco hydraulic oil CH32 - content = 5L Especially for Falco lifts. Also suitable for all hydraulic applications with a large viscosity range accoring to: DIN 51524 part 1, 2 HLP.
four post lift / alignment lift / four column lift / service lift / car lift / runway liftThis Falco Sollevatori four column lift bridge is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.This 4 column lift bridge has the pump unit at the top of the column to save space. The model has a double locking system, which guarantees the safety of persons and equipment.Thanks to its robust construction and well thought-out design, this 4-column lift bridge is equipped with the following handy features as standard:
No time for installation? Our professional installation team is specialized in the installation of Falco lifts! Your bridge will be installed in a correct way. The team thinks along with you about the position and placement of the lift. For the above price is our installation team within a radius of 100km on site including 3 hours of labor for installation. For the extended activities which are not included, there will be a hourly rate of 75,00 excl. VAT. For distances beyond the radius of 100km, we will charge 1,00 euro per kilometer. Note! The surface must at least meet the following requirements: - concrete strength C20 - C25 250kg/com - 200mm thickness - newly poured concrete needs to cure for 28 days Ask for the manual for more information about the surface requirements. Transport of the lift is not included and depends on the unloading facilities. Consult us first to make a suitable appointment for this.
Fully automatic scissor lift / car cleaning lift / scissor lift
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications. Thanks to its stable solid design, this bestseller scissor lift is easy to place on a straight surface and installation is not necessary due to the sturdy construction. Every lift comes with a wheel set, making it easy to move the lift and therefore use your space in the workplace optimally.
Features:
extra low ramp height of 100mm
mobile scissors lift
powerful hydraulic cylinders
fully automated electrical safety lock
foot protection by acoustic security signal
start lift
adjustable ramp extension
foot safety switch
manual emergency valve, lowering also possible during power failure
custom galvanised rack
european grease nipples
incl. wheelset, plug and rubber support blocks
capcity = 3000kg
motor power = 2,2kW
min. lifting height = 100mm
max. lifting height = 990mm
locking system = automatically
platform size = 2000 x 460mm
fixed platform size = 1400 x 460mm
weight = 540kg
oil capacity = 5L (not included!)
All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.
Fully automatic car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge
This Falco tire bridge focuses on efficiency and ease of use. Thanks to the Sync safety system, it always drops synchronously. The bridge is equipped with an acoustic signal and a rail is fitted at the bottom for foot protection. The lanes are made of wear-resistant tear plate over the entire length. The stable solid design is easy to use anywhere on a straight surface and also includes mounting holes for fixed installation. It can be used both mobile and fixed. The bridge is supplied as standard including a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop.
Characteristics:
Extra low ramp height of 110mm
Mobile tire bridge
Powerful hydraulic cylinders
Fully automated electric safety interlock
Foot protection incl. acoustic safety signal
Start elevator
Adjustable ramp / extension piece
Foot protection switch
Emergency lowering valve
Incl. Wheel set, plug and rubber support blocks
capacity = 3000 kg
motor power = 1,5kW
min. lifting height = 115mm
max. lifting height = 985 / 1025mm
lock = automatic
platform length = 1450 - 1984mm
platform width = 515mm
width between platforms = 810mm
drop time = 25 seconds
weight = 680 kg
Car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge
Thanks to the well-considered design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. Thanks to the stable solid design, the lift is easy to place on a straight surface. Equipped with no less than four hydraulic cylinders (two per platform), this lift has a TwinX lifting system. As a result, the bridge is safe in every position and it does not have to be lowered before work can be carried out on the car. Also, there is no need to raise the bridge first to release it from the lock, making the bridge much more convenient to use and suitable for more applications than mechanically locked bridges. Each bridge is supplied as standard with a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop. The bridge is especially suitable for large vehicles.
Total platform length of 2015mm
TwinX hydraulic system
Extra low ramp height of 105mm
Mobile tire
4 Powerful hydraulic cylinders
Start lift
Adjustable ramp / extension
Incl. wheel set and mounting blocks (40mm)
Complies with NEN-EN1493 safety standard
capacity = 3500 kg
voltage = 230V / 1-phase
motor power = 2.2 kW
min. lifting height = 105mm
max. lifting height = 960 / 1000mm
locking = automatic
length platform = 1400 / 2015mm
width platform = 480mm
width between platforms = 1000mm
lifting time = 40 seconds
weight = 630 kg
oil capacity = 6L CH32 / CH46 (Not included)
This Falco Sollevatori single scissor lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.
Thanks to its robust construction and thoughtful design, this single scissor lift is standard equipped with the following useful features:
platform length = 1460mm
total length including ramps = 1995mm
electrical hydraulic double pump
equipped with 4 heavy hydraulic cylinders
8 hydraulic parachute valves for optimum safety
automatic venting by means of venting button
hydraulic synchronization
photocell safety between the 2 platforms
control valve for controlling the speed when lowering
limit sensors for limiting the maximum lift height and the minimum safety height
dead man's operation when lifting and lowering
foot protection including acoustic safety signal
adjustable distance between scissor platforms to your own liking
Dutch manual including maintenance protocol and CE certificate 2006/42/EC
meets the NEN-EN1493 safety standard
lifting capacity = 3200kg
max. lifting height = 1000mm
min. lifting height = 110mm
platform length = 1460mm / 1995mm
width of the platforms = 490mm
recommended free space between platforms = 860mm (adjustable)
lifting time = 40 sec
voltage = 3-phase 400V
power = 2,2kW
weight = 640kg
Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table
The Falco LT1200E electro hydraulic battery has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is infinitely adjustable in height and length, so it has a flexible field of application.
The table top has 104 M10 threaded holes with a hole pattern of 100 x 100 mm for easy mounting of tools and lifting adapters
Lifting table is easily adjustable in length and transverse direction and can be tilted 5 degrees
Swivel wheels including brake for free movement and safe operation
Collapsible rod for optimal workspace
Integrated, electro-hydraulic unit 230V
voltage = 230V 1-phase
capacity = 1200kg
lifting height = 580 - 1900mm
table dimensions = 1300 x 770mm
weight = 365kg
Motorcycle lift Thanks to its unique design this Falco Sollevatori motorcycle lift is provided with the following standard features:
lifting height of 123cm
foldable plates for easy mounting and dismounting of the front and rear wheel
automatically locking front wheel clamp when wheel is entered
ramp that stores itself when lifting, because of this, the lift takes less space
neat built-in, powerful electric unit, provides more space on the work floor
handy, magnetic control unit
tear plate for grip on the lift
lift can be locked at six different heights, which ensures safety and reliability
capacity = 1000kg
electro motor = 230V / 50Hz, 10A, 1.1kW
min. height = 180mm
max. height = 1230mm
platform size = 2250 x 800mm
tire width = 50 - 150mm
oil capacity = 3,5L
Optional for this lift:

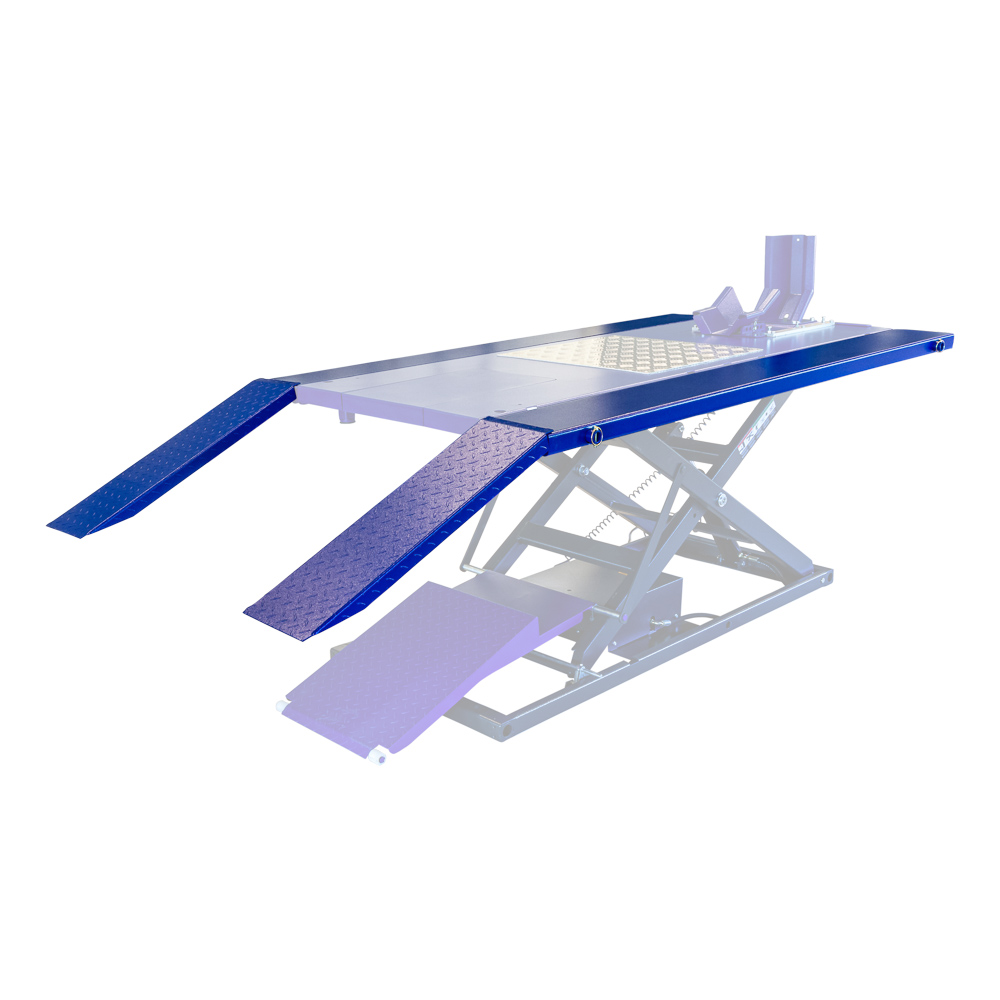

widening set, suitable for quads and ATV's, wides the lift from 80cm to 127cm
front extension, in combination with the widening set this lift is also suitable for trikes, extends the lift with 55cm
For more information, see related products
Ultra low: Due to the external control unit, the minimum drive height is only 75mm
Stepless security through the 2 cylinders, no extra action is needed to lower the lift
Foldable back plate for easy mounting and dismounting of the rear wheel
Automatically locking front wheel clamp when wheel is entered
Ramp that stores itself when lifting, because of this, the lift takes less space
Equipped with a stainless steel gutter on both sides. With this, the eye nuts can be used over the entire long side
External 230V control unit
Antislip tear plate for grip on the liftt
capacity = 600kg
min. height = 75mm
max. height = 1100mm
heftijd = 17 seconds (unloaded)
platform size = 2200 x 780mm
oil tank capacity = +/- 3 liters of CH46V hydraulic oil (not included!)
Adapter plate

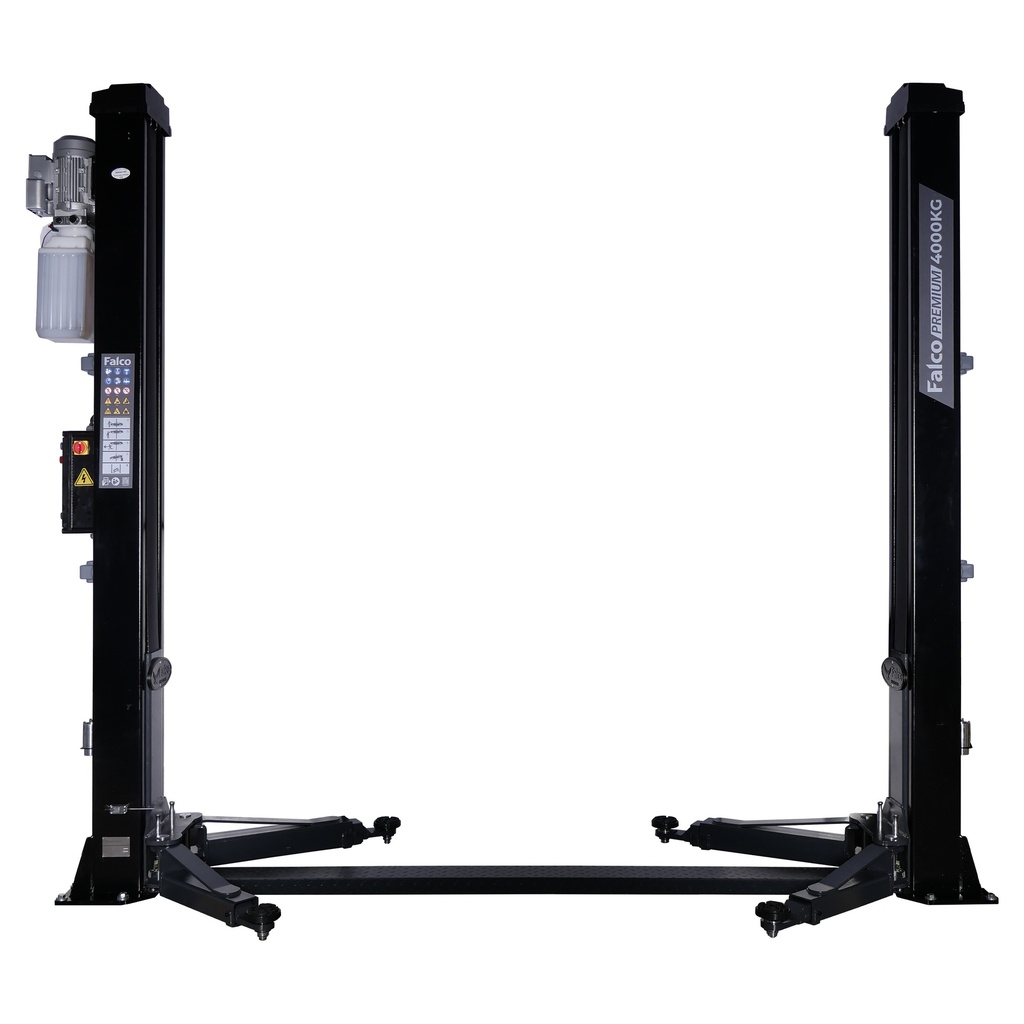

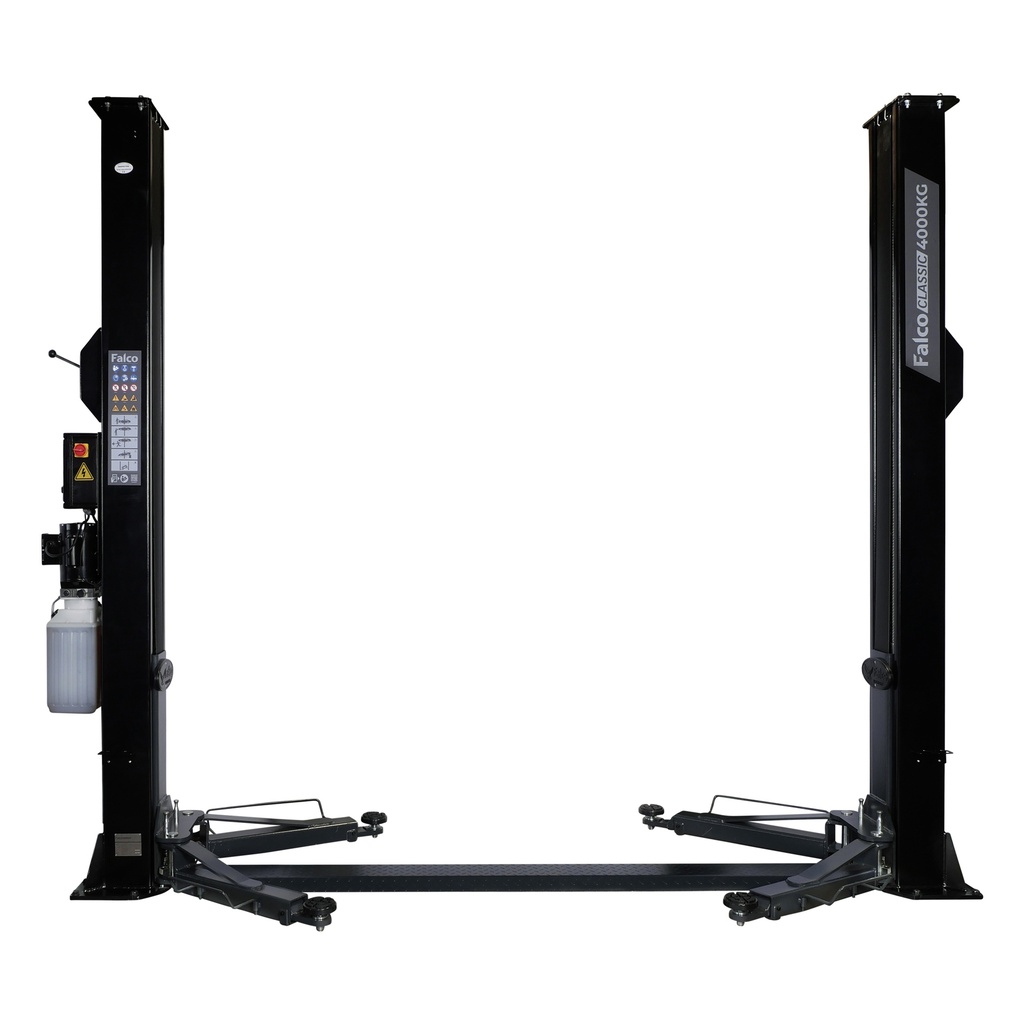

Suitable for the post lifts VL35F230, VL35F230B and VL35F400.
